MLP100

In-wall Carrier for Single-station On-wall Bottle Fillers Coolers & Fountains

$1,177.00 (USD)

Actual selling price may vary
We carry a range of mounting frames, plates and other installation support systems to properly position and enhance our refrigerated and non-refrigerated bottle filling stations, water coolers, drinking fountains and chillers of all configurations.
Read More
  • Universal design provides extra support when mounting on-wall single-station models
  • System can be installed in as little as a 2" x 4" wall
  • Constructed of heavy-gauge steel supporting up to 500 lbs
  • Secures directly to a variety of load-bearing surfaces
  • Adjustable height setting allows for adult or child ADA installation
  • Built in the USA

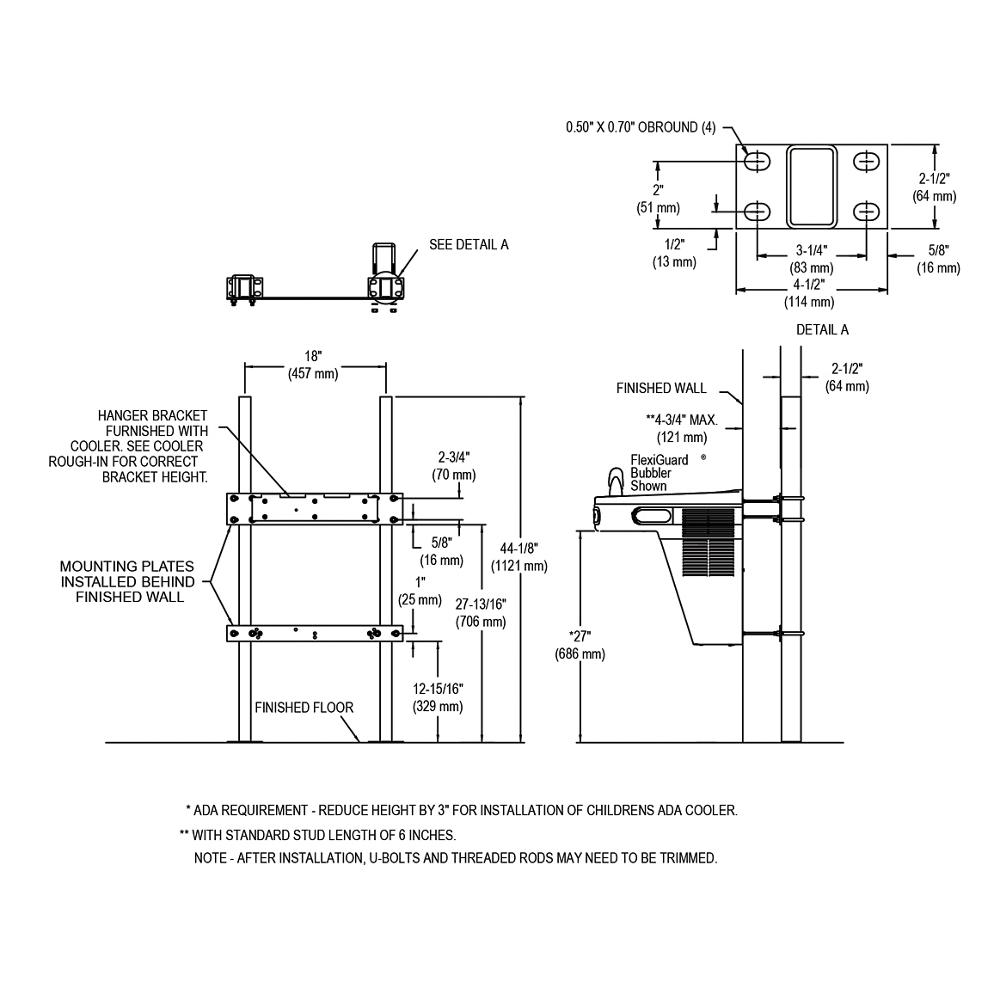

Specifications

Material Galvanized Steel
Power No Electrical Required

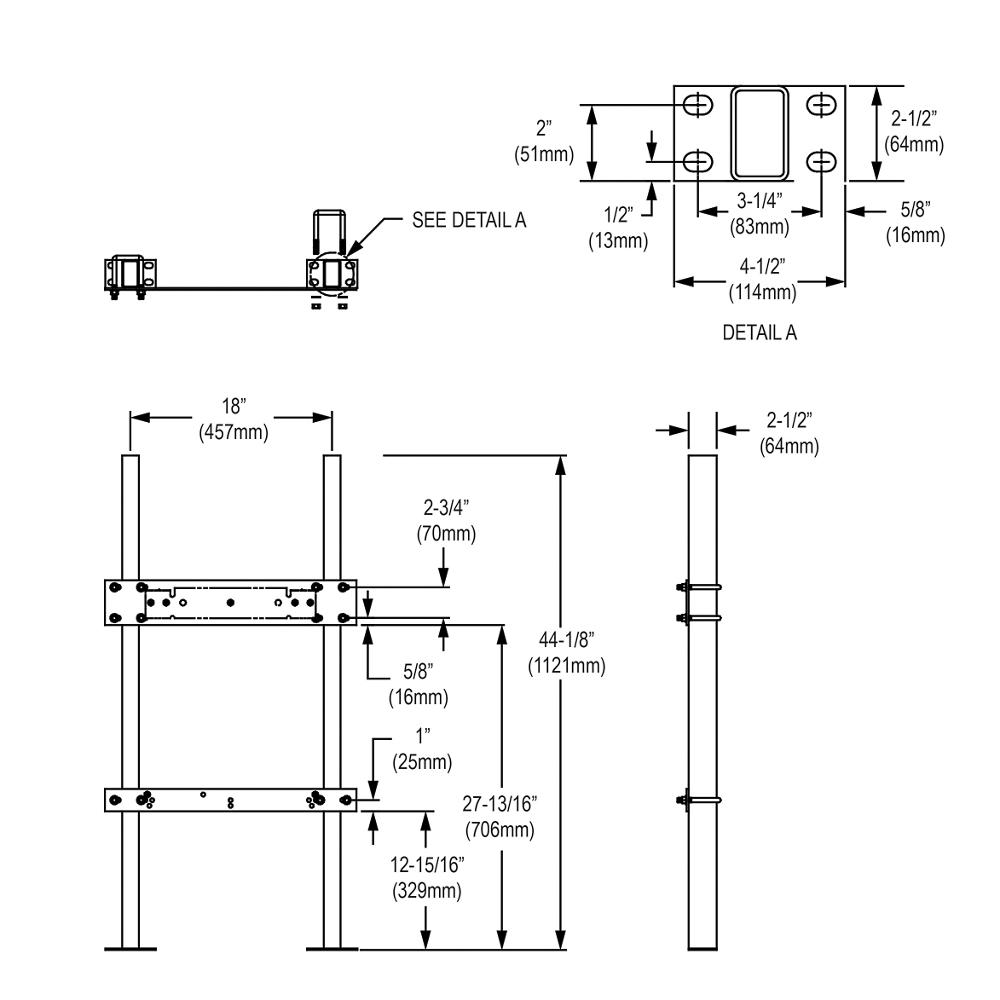

Dimensions L: 20-3/4IN
W: 2-11/16IN
H: 44-1/8IN
Shipping Dimensions L: 58IN
W: 9IN
H: 5IN
Shipping Weight 36LB
Included With Product Mounting Carrier Assembly
Note For use with single-station on-wall bottle fillers, coolers & fountains.
