Filtration Reimagined
The bottle filler was overdue for a revolution. We reimagined it.
Clean, filtered water isn't a luxury — it's the expectation. Everyone filling a bottle deserves to know what they're drinking. Elkay Pro Filtration makes that promise effortless to keep. No compromises. No complexity. Just clean water, delivered simply, at scale. Now and for the next generation.
Up to 7x the filter life. Changes in seconds. Monitored from anywhere.
Choose Your Experience
- I'm Just Exploring
- I Manage Facilities
- I Specify Products
The Next Generation of Bottle Fillers Is Here
Clean, filtered water shouldn’t be complicated to deliver— and now it isn't. Higher capacity filters, effortless maintenance, and smart connected technology built into every unit. This isn't an upgrade. It's a new category.
More Filter Life
More gallons. Fewer change-outs. Less downtime. The highest capacity filters in the industry.
Easier Maintenance
Top-load filter access means no getting on the ground. Filter changes in 30 seconds.
Superior Filtration
Pro Filtration reduces lead, PFAS, microplastics, and more — certified to the highest NSF standards so everyone filling a bottle knows what they're drinking.
The Bigger Picture
Most people assume the water coming out of a bottle filler is filtered. Most of the time, it isn't. Filtered water reduces exposure to lead, PFAS, microplastics, and other contaminants that standard units simply don't address. That's exactly what Pro Filtration was built to change.

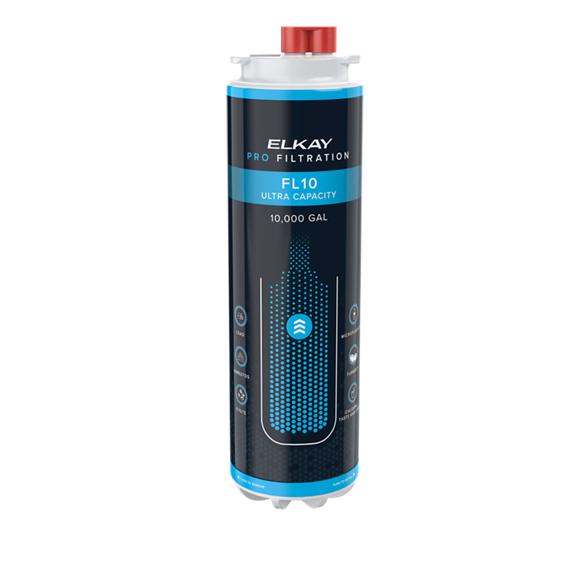

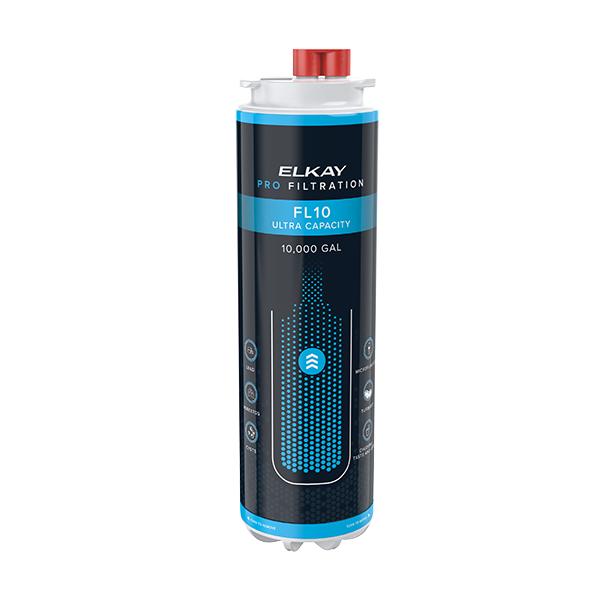

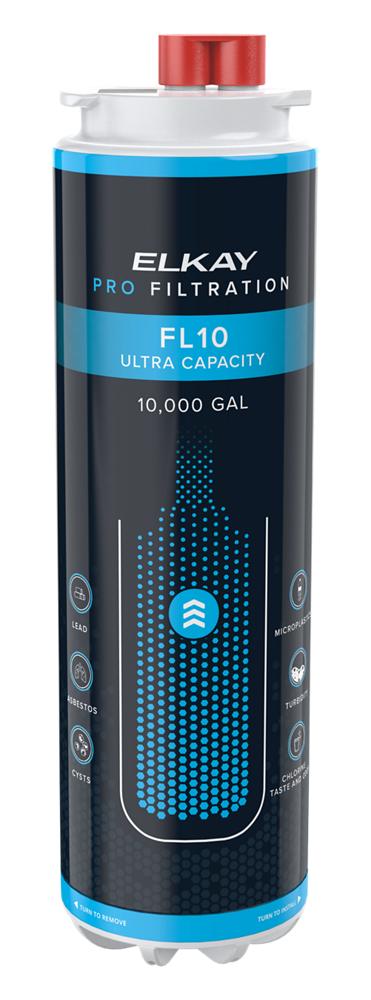

Ultra Capacity Filter
10,000 gallons
Maximum filter life, minimum change-outs. The go-to choice for high-traffic facilities.

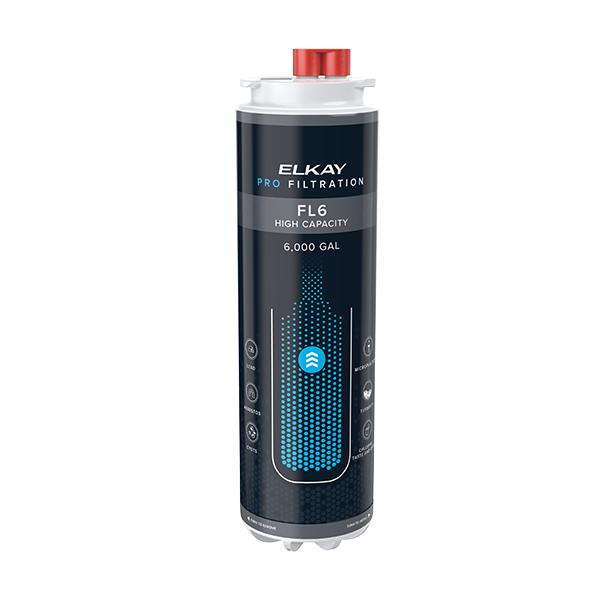

High Performance Filter
6,000 gallons
The same trusted contaminant reduction in a capacity built for lower-traffic spaces.

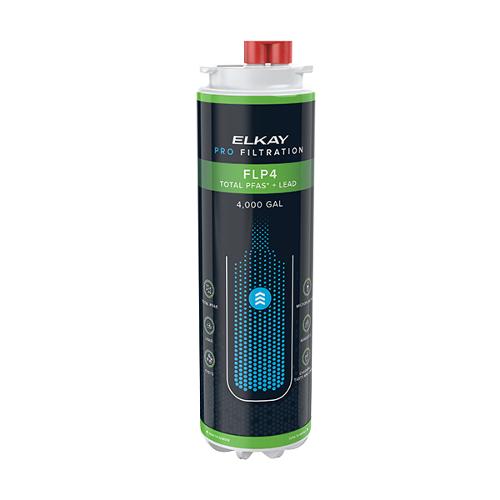

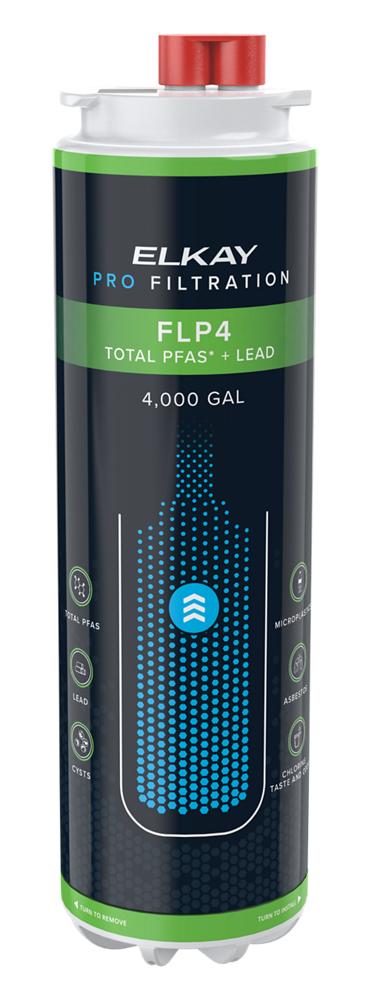

PFAS Filter
4,000 gallons
The highest standard of filtration we offer. Removes the widest range of contaminants including Total PFAS—for facilities where water quality is non-negotiable.
Not sure which filter is right for your facility?
The Next Generation. And It's Just Getting Started.
Pro Filtration is redefining what a bottle filler can be — and we're continuously expanding the line to meet every environment and every demand.

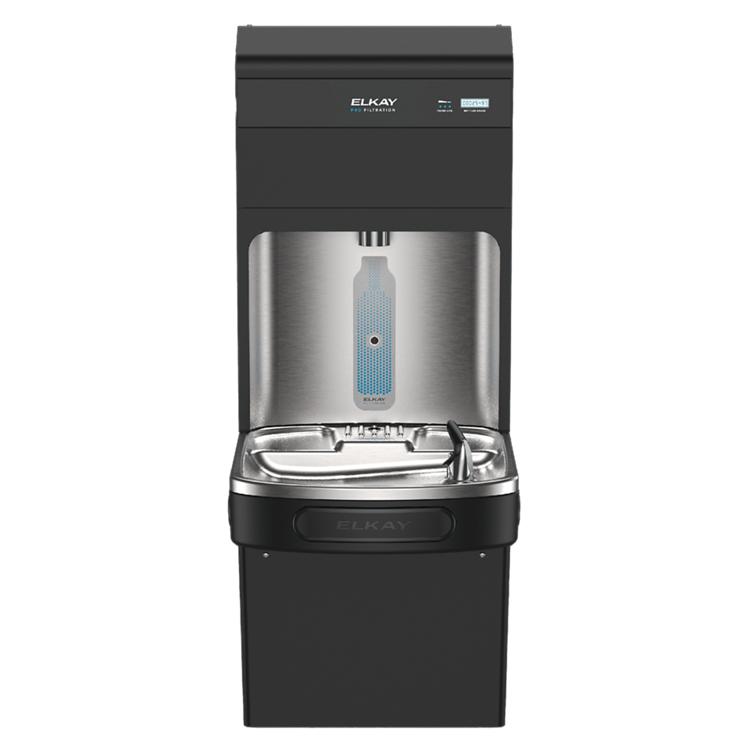

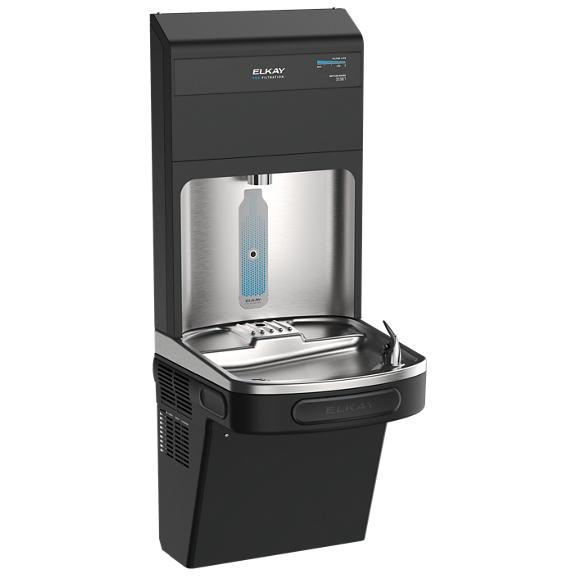

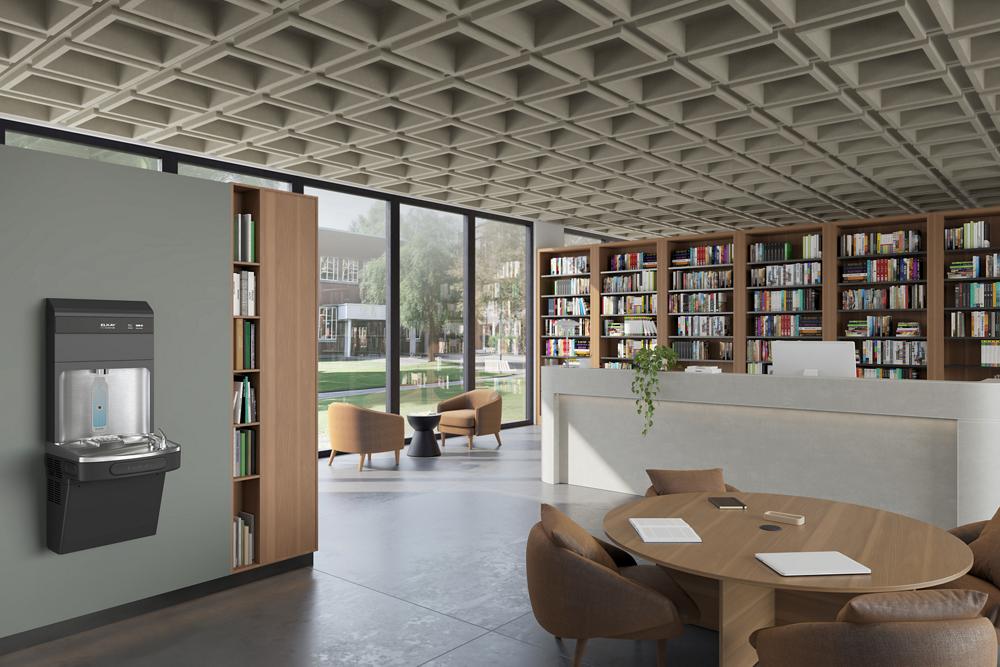

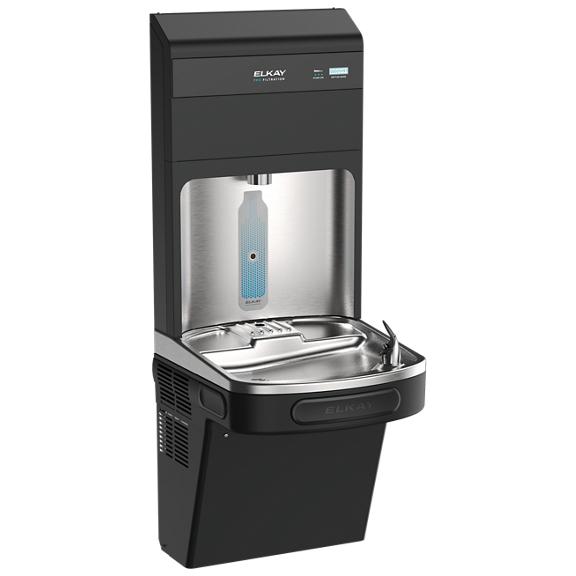

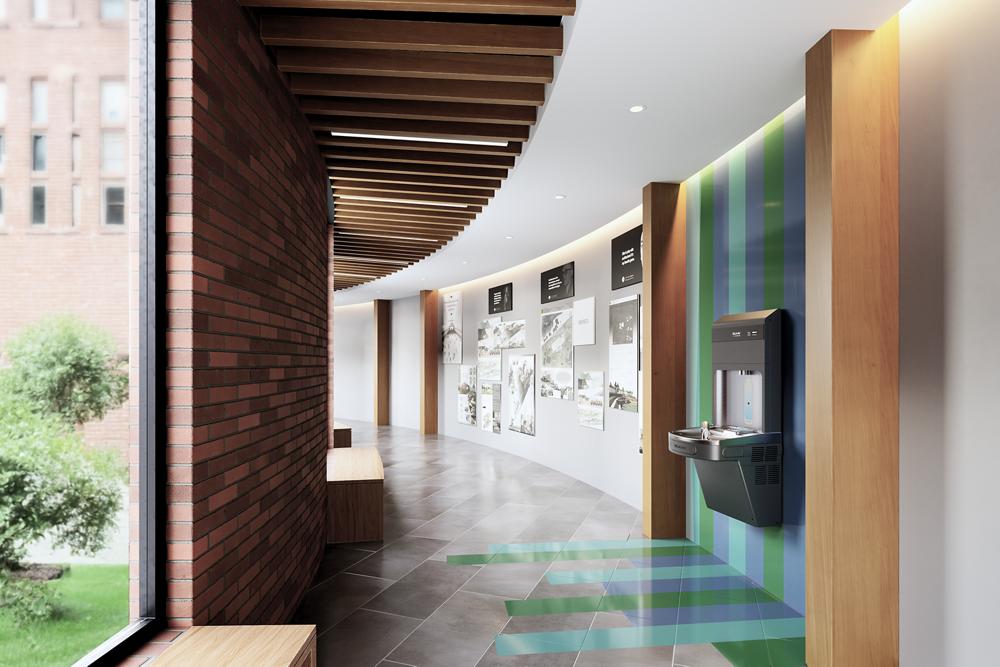

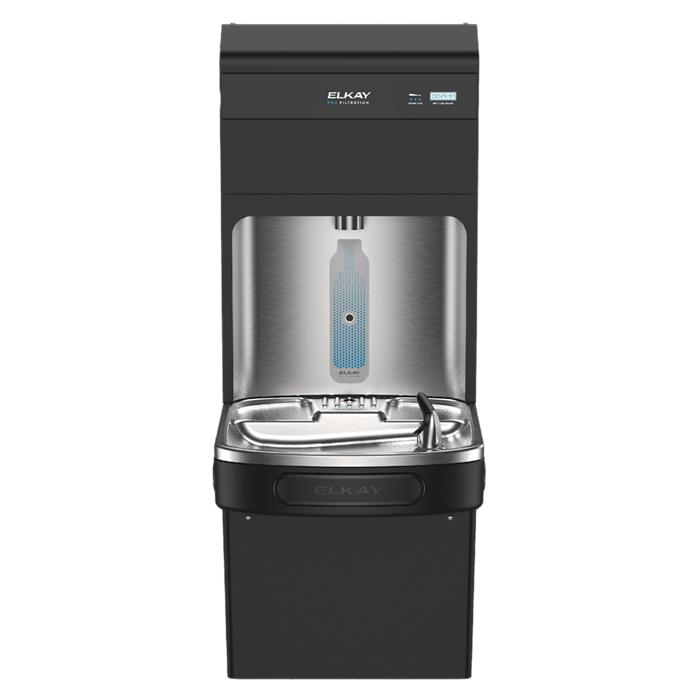

Pro Filtration Black Stainless
Bold, sophisticated, and built to complement any environment.
Pro Filtration Stainless Steel Vandal-Resistant
Coming Soon
Bold, sophisticated, and built to complement any environment.
Upgrading Is Easier Than You Think.
Legacy Elkay drinking fountains can be upgraded to Pro Filtration using the same rough-in — no major wall or plumbing changes required. A quick, low-cost transition to high-performance filtered water.
EZ Frame Coming Soon
Want to be the first to know when EZ Frame is available?
Ready to learn more? Find the right path for you.
Pro Filtration. Problems Solved.
Pro Filtration was built around every frustration facilities teams have lived with for years — and engineered to solve them. No more filters that run out too fast. No more getting on the ground. No more red lights. Just more time, more control, and filtration finally on your terms.

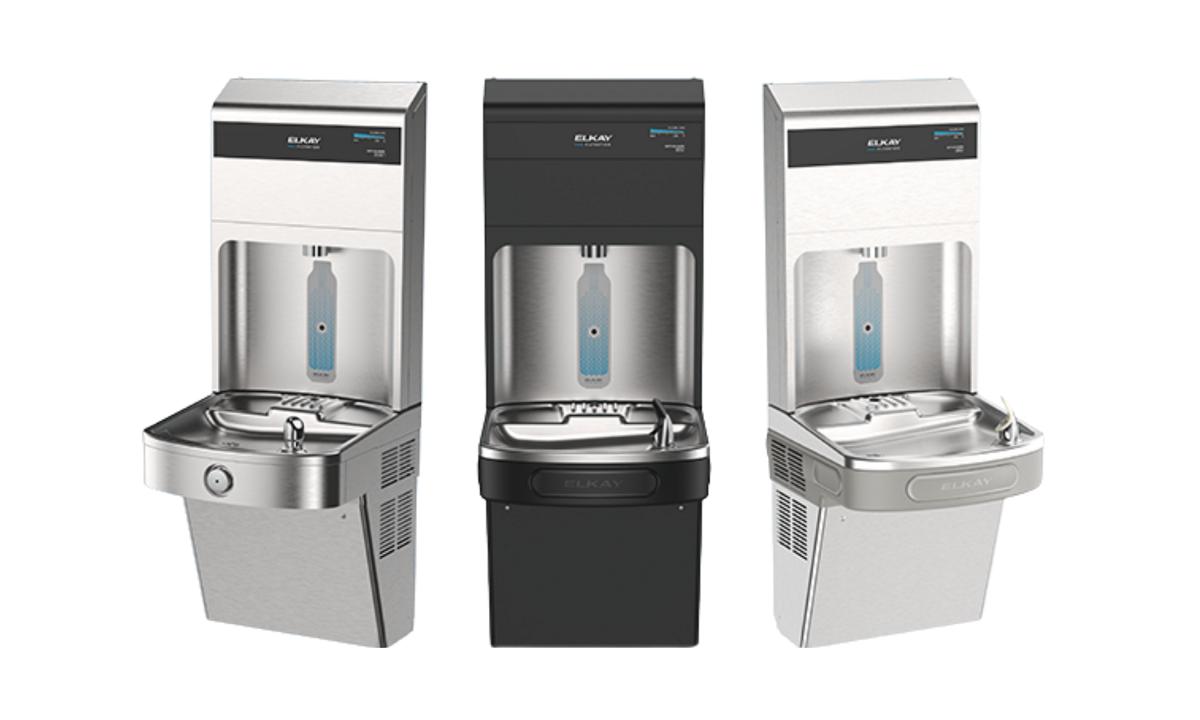

Built for Every Space. Ready for Every Demand.
Pro Filtration is the future of hydration infrastructure — and we're just getting started. As filtration becomes the standard, we're continuously building out this line to meet every environment and every demand. Here's where we are today.

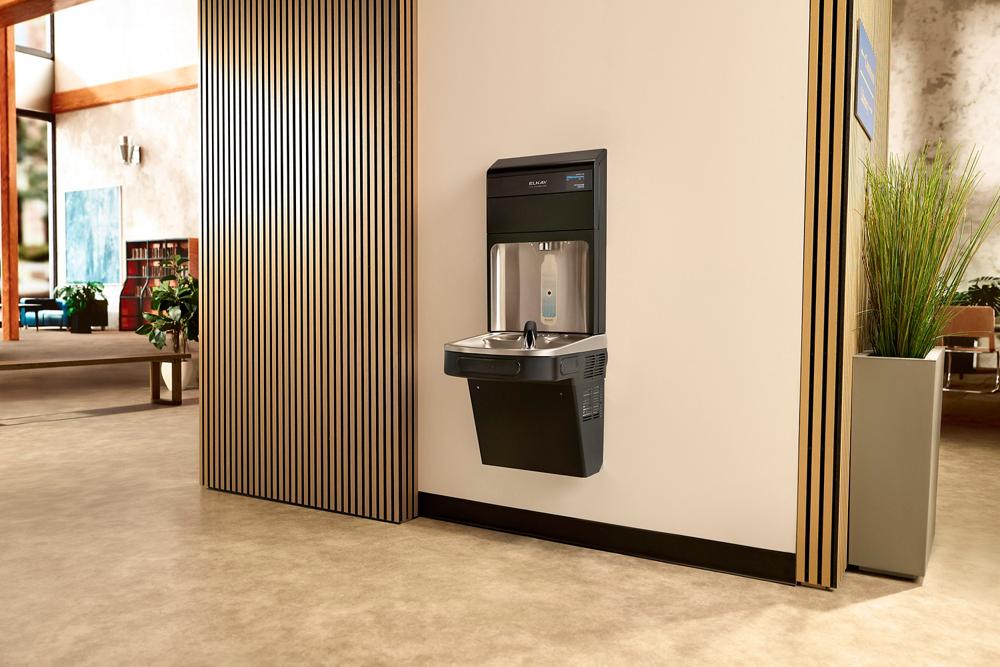

Pro Filtration Black Stainless
Elevated, architectural design in a sleek black powder-coat finish. It’s as bold and sophisticated as it is durable.
Pro Filtration Stainless Steel Vandal-Resistant
Coming Soon
Built for high-traffic spaces where durability is non-negotiable. Vandal-resistant construction and premium stainless finish that can take whatever a busy facility throws at it.
Not All Water Is the Same. Neither Are Our Filters.
Every Pro Filtration unit comes with your choice of filter — and all three are available as replacements. The right one depends on what's in your water and how much traffic your space sees.
Ultra Capacity Filter
10,000 Gallons
Maximum filter life, minimum change-outs. The go-to choice for high-traffic facilities.

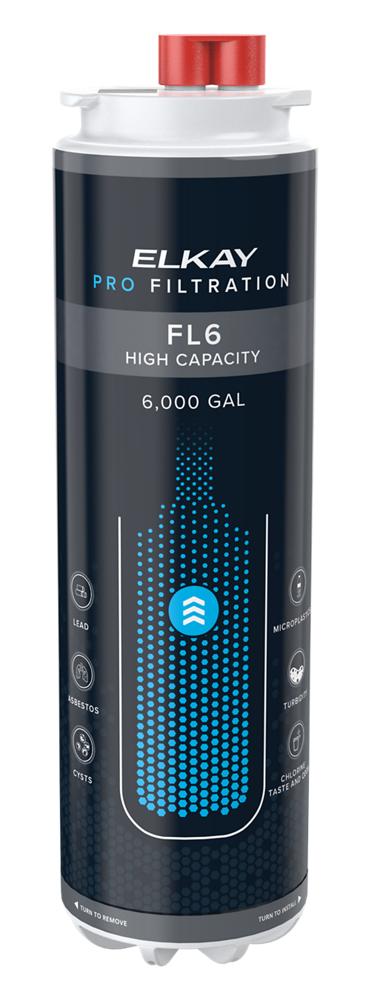

High Performance Filter
6,000 Gallons
The same trusted contaminant reduction in a capacity built for lower-traffic spaces.
PFAS Filter
4,000 Gallons
The highest standard of filtration we offer. Removes the widest range of contaminants including Total PFAS — for facilities where water quality is non-negotiable.
Want even more capacity? Stack two of the same filter for double the life — up to 20,000 gallons. Or add a sediment pre-filter to protect your primary filter and extend its performance.
Not sure which filter is right for your facility?

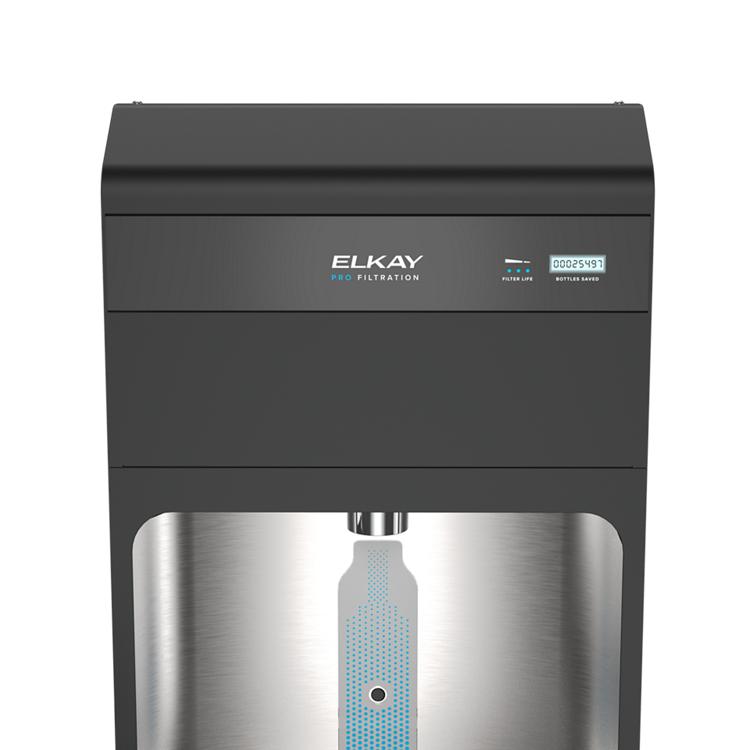

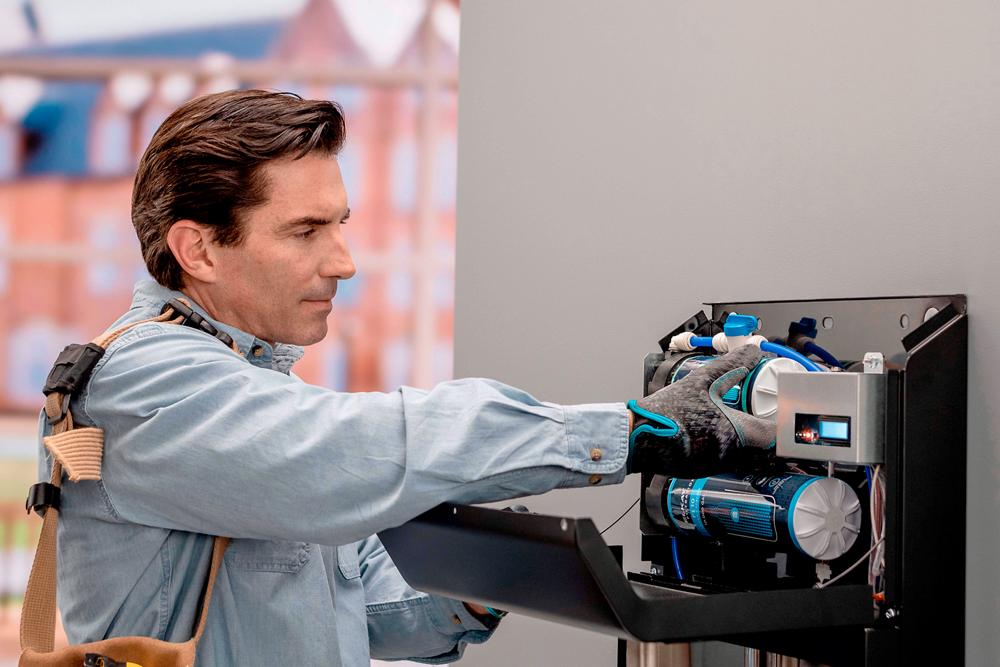

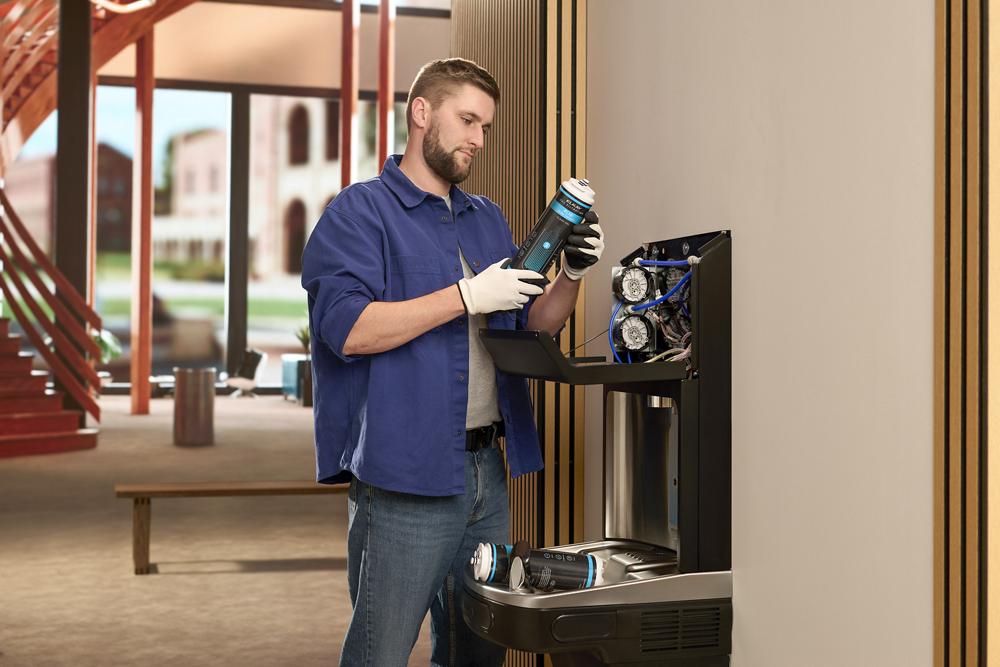

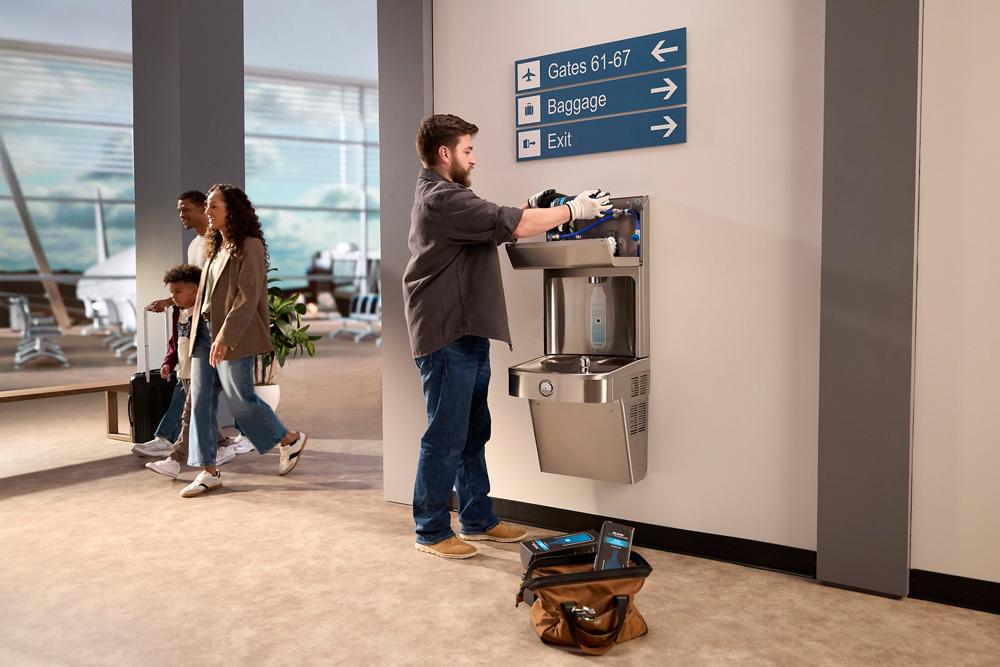

Filter Changes. Reimagined.
What used to take 20 minutes now takes under 30 seconds — standing up.
The Hidden Problem That's Been Killing Your Filters.
Sediment clogs filters faster than anything else — and if you have it, you already know the frustration. Slower flow, shorter filter life, more change-outs. The optional sediment pre-filter traps particulates before they reach your primary filter. One small addition. Significantly longer filter life.

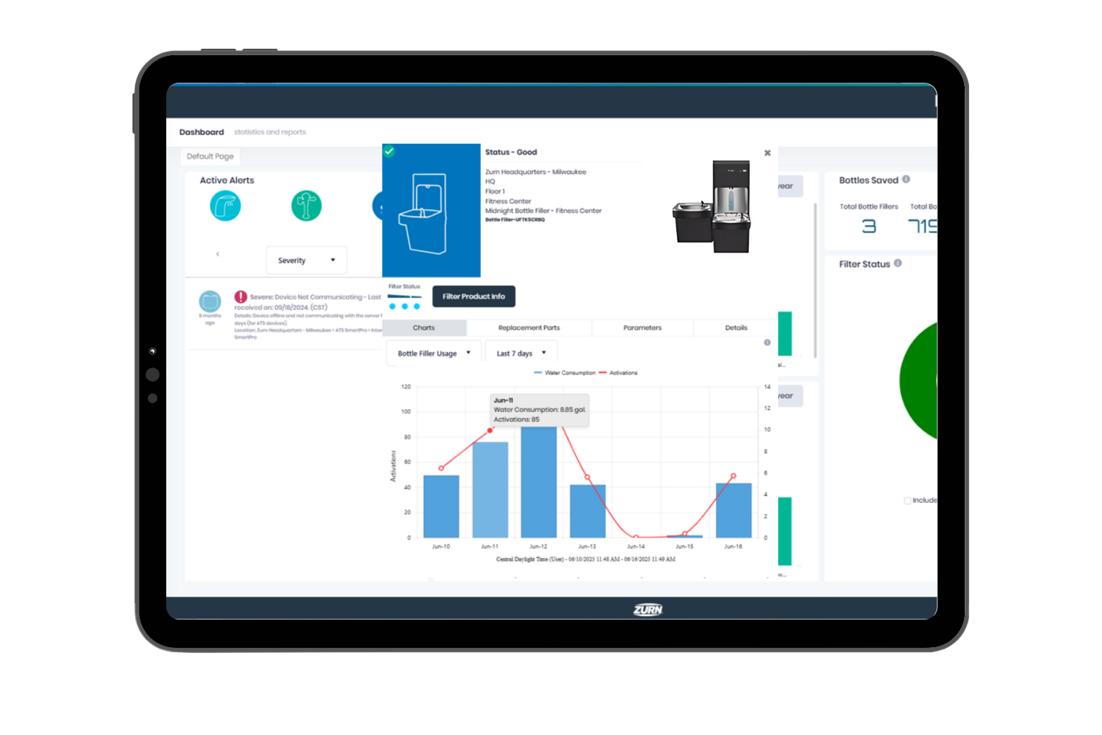

Finally. Predictive Maintenance for Bottle Fillers.
Every Pro Filtration unit comes with built-in smart connectivity monitored over a cellular network. Through plumbSMART™ — or your existing building management system via open API — you get real-time filter status, proactive end-of-life alerts, and bottles-saved data from anywhere. No more red lights. No more complaint calls. No more walking the building. Just the information you need, before you need it.
"Because of Pro Filtration, this is one of the few areas where I can actually say we're ahead of the curve on predictive maintenance." — Jacob Womack, Director of Facilities, Higher Education

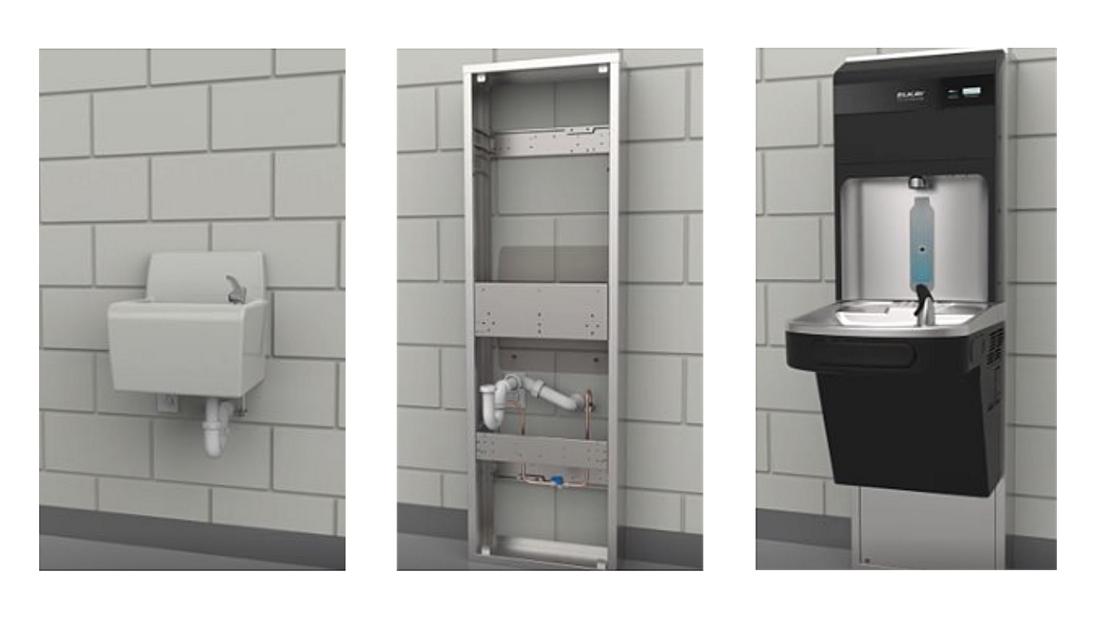

No More Going Behind the Wall.
Legacy Elkay drinking fountains can be upgraded to Pro Filtration using the same rough-in — no major wall or plumbing changes required. But we didn't stop there. The EZ Frame™ takes it even further. This carrier-style frame lets you upgrade old units to Pro Filtration without opening the wall at all — faster installation, lower labor cost, and no surprises.
EZ Frame Coming Soon
Want to be the first to know when EZ Frame is available?
"The water tastes better. There are two old fountains right beside it — the difference in taste is undeniable.” — Todd McLamb, Building Maintenance Manager, University
One Unit. Built Around Your Needs.
Beyond filter selection, Pro Filtration gives you options to customize performance for your specific facility.

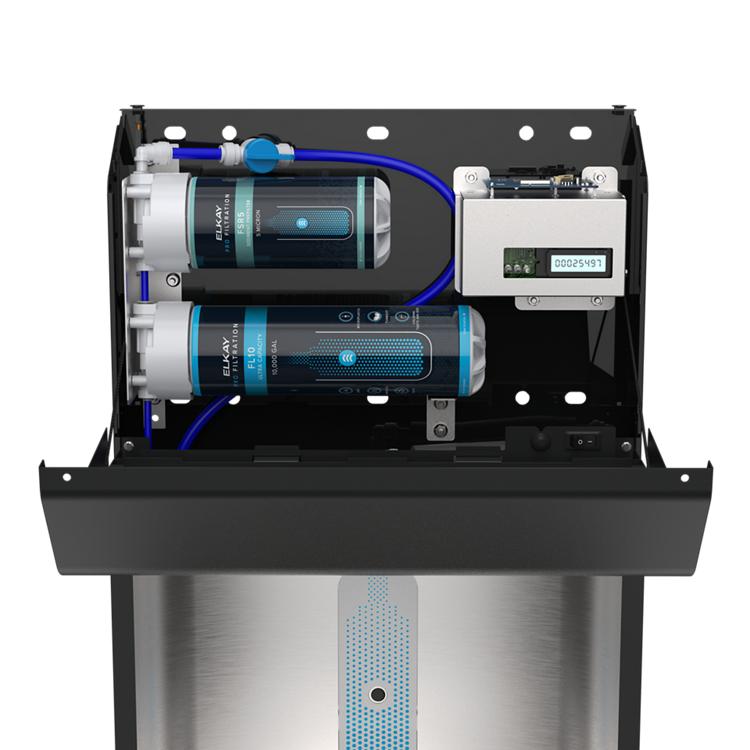

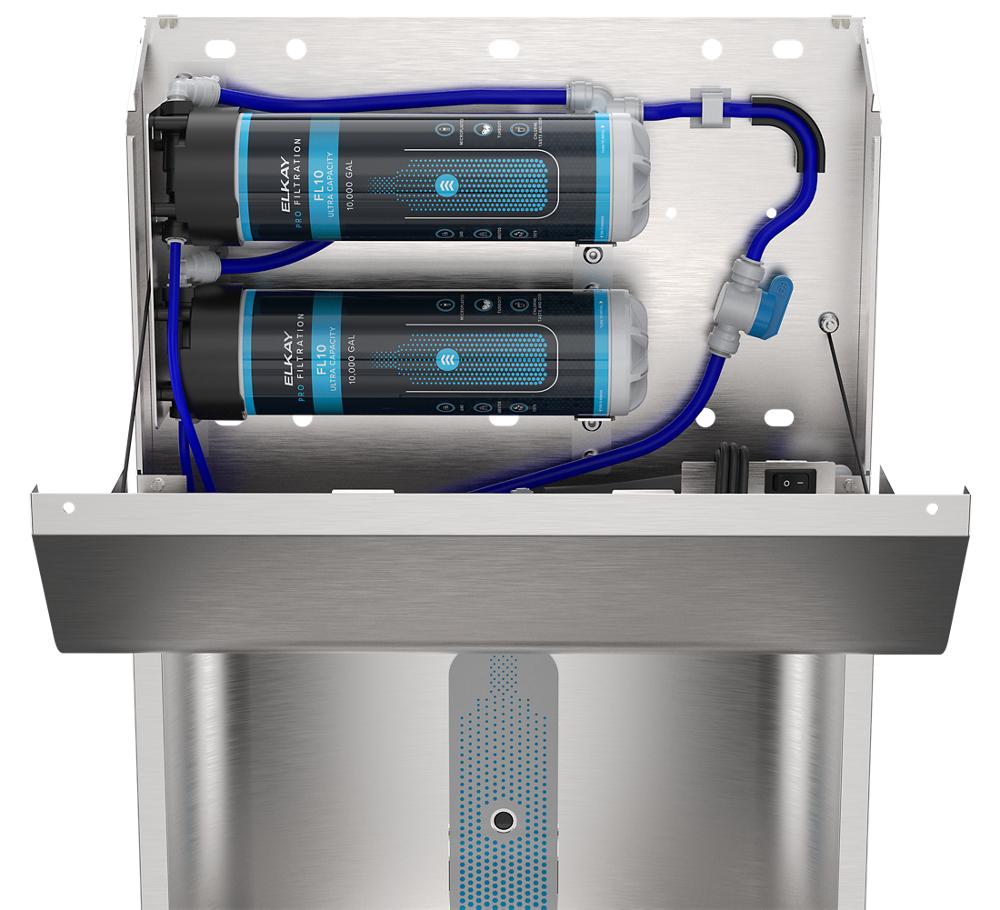

Double-Stacked Filters
Stack two of the same filter for up to 20,000-gallon capacity — cutting your change-out frequency in half again. Ideal for high-traffic locations where maximizing uptime is critical.

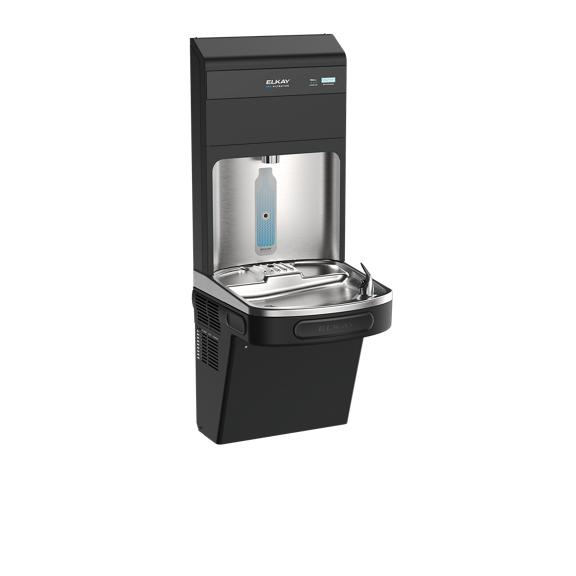

UV Treatment
An additional layer at the point of dispense. Increasingly specified in healthcare-adjacent and early childhood education environments.

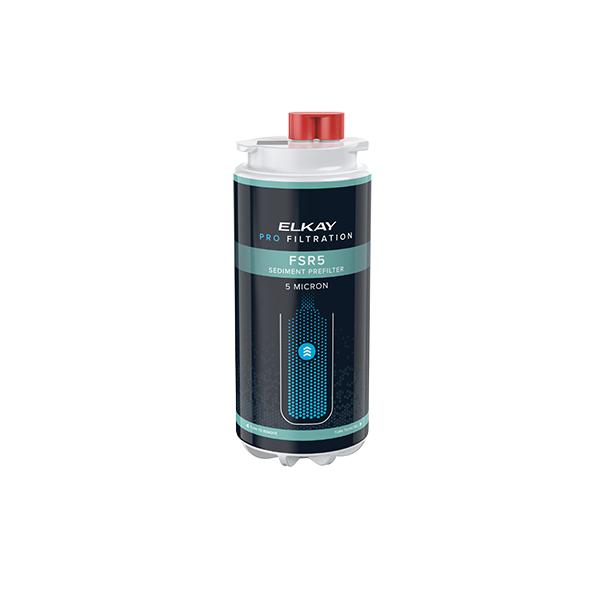

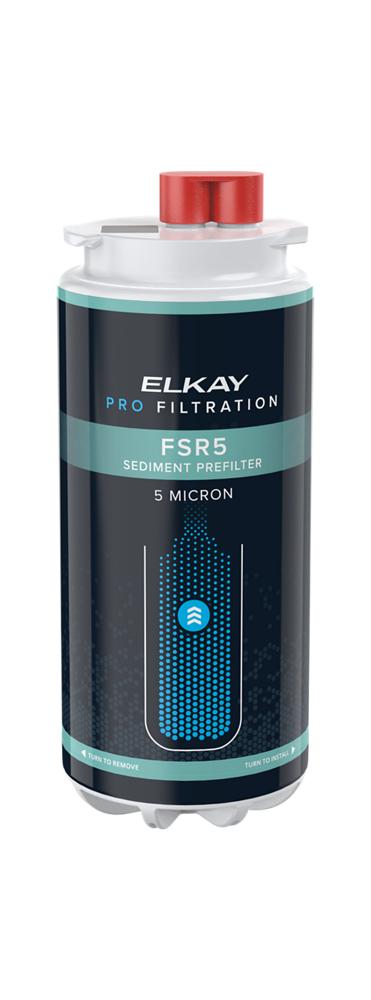

Sediment Pre-Filter
Protect your primary filter from particulate buildup and extend its life. Best for facilities with older infrastructure or known water quality challenges.
Ready to Bring Pro Filtration to Your Facility?
Whether you need a site assessment, want to talk through the right configuration, or just have questions — we're here to help.
Filtration Is the New Standard. Is Your Spec Ready?
Filtration demands are accelerating—driven by regulation, wellness standards, and rising occupant expectations. The Pro Filtration collection is expanding to meet more applications while helping mitigate spec risk. Specify it once. Build with confidence.
The Filtered Future
What was once an upgrade is becoming the expectation. Legislation is spreading nationwide. Building owners are asking for it. Occupants are demanding it. Pro Filtration was built for exactly this moment — and specifying it today means your buildings are ready for whatever comes next.
Filtration That Looks as Good as It Performs.
Pro Filtration was designed with the specifier in mind. Clean lines, architectural finishes, and a presence that complements the spaces you work hard to design. This isn't a utilitarian fixture hidden in a corner — it's a statement piece that belongs in your next project.

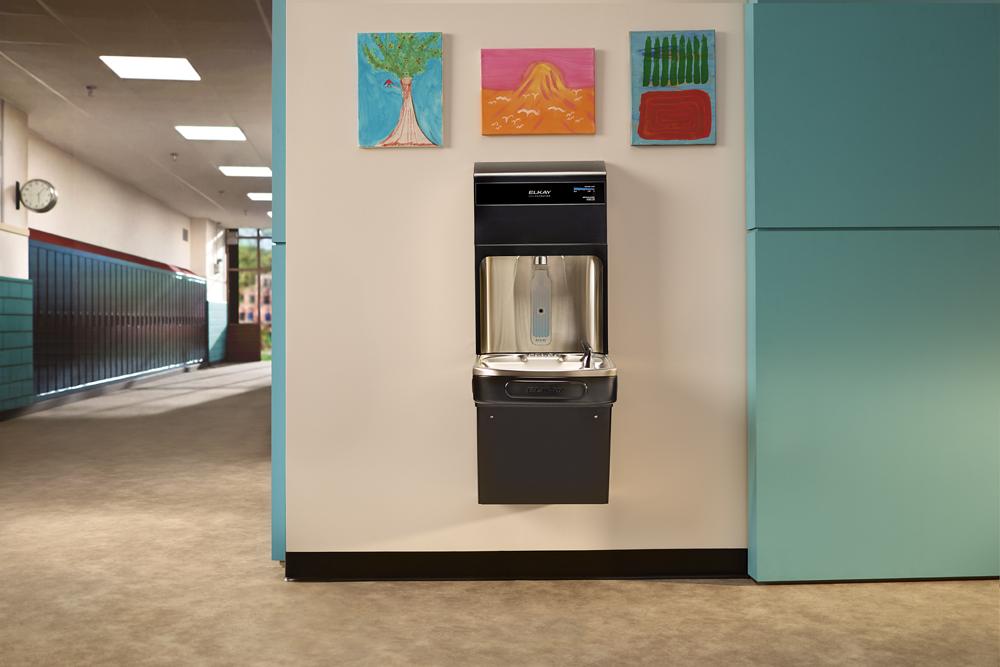

Pro Filtration Black Stainless
Sleek black powder-coat finish that complements high-end applications. Bold, sophisticated, and architectural by design.

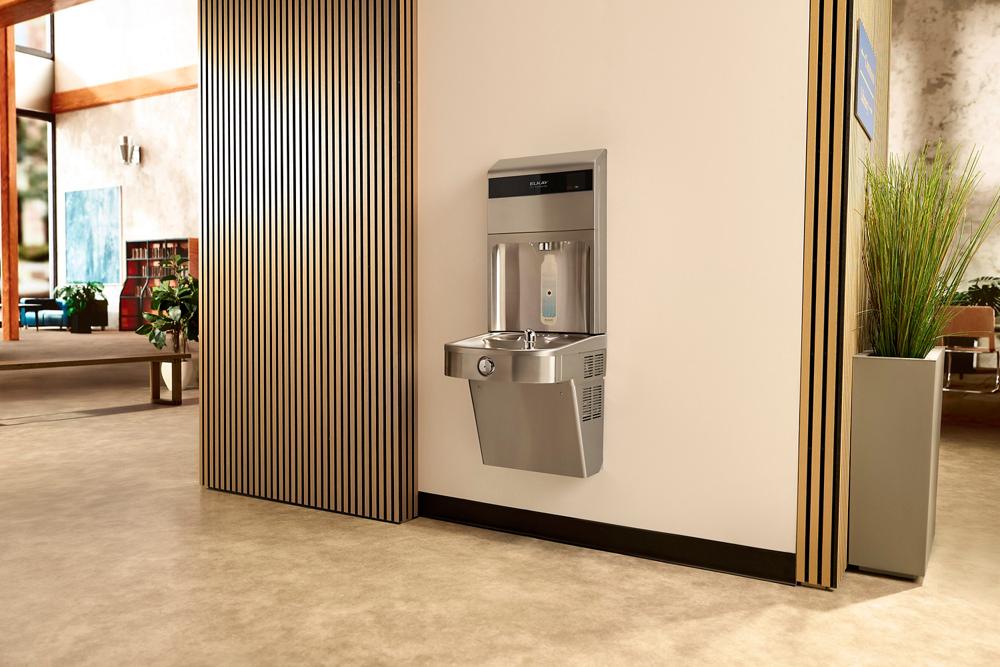

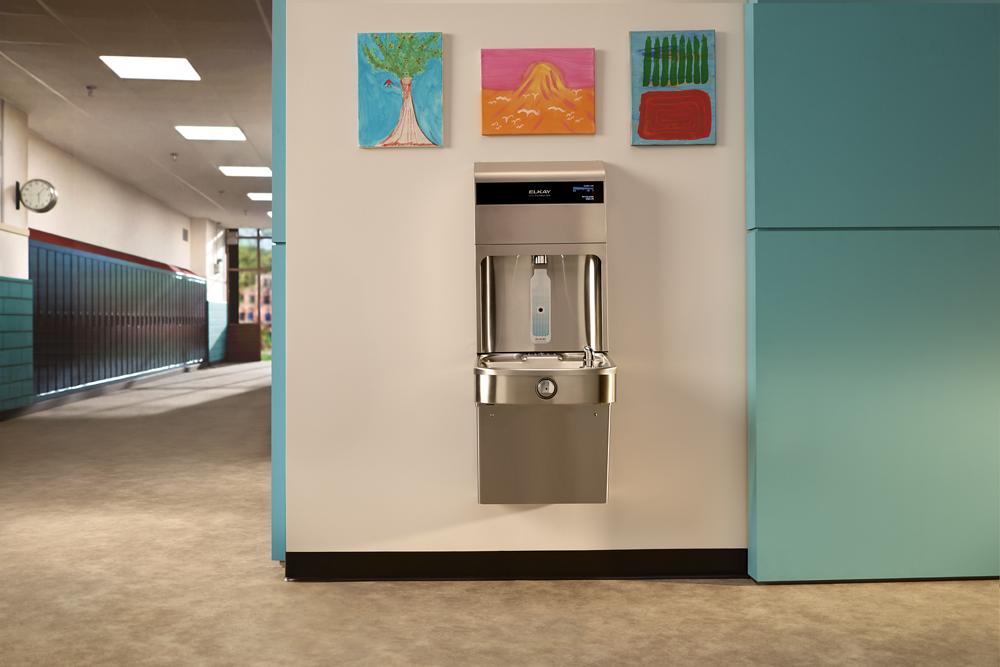

Pro Filtration Stainless Steel Vandal-Resistant
Coming Soon
Built for high-traffic spaces where durability matters without sacrificing design. Premium stainless finish, vandal-resistant construction.
Pro Filtration is a growing portfolio.
Choosing it now future-proofs your specification as the line continues to expand.
See It Before You Spec It
Pro Filtration finish samples are available on Material Bank — the go-to material library for design professionals. Free samples, overnight delivery, and sustainable packaging consolidating everything you need in one order.
Built for Occupants. Appreciated by Owners.
The building performs. The data proves it.
Occupants expect filtered water. Owners expect low maintenance. Pro Filtration delivers both — smart connected monitoring, top-load filter access, and up to 7x the filter life means the building you design keeps performing long after you've moved on.
Future Forward Filtration
Water quality standards don't stand still - and neither do we. Pro Filtration is a growing platform, not a fixed product. As regulations evolve and new contaminants emerge, we're continuously developing new filter solutions that fit this model. Specifying Pro Filtration today means your buildings are ready for wherever standards go next.
See What's In Your Water
Good for People. And the Planet.
Wellness and sustainability are the same conversation now. Pro Filtration reduces single-use plastic waste and is backed by third-party verified Environmental Product Declarations (EPDs) for the entire product family — giving you the documentation to align your projects with modern sustainability standards.
EPD Certified
Third-party verified. Every product in the Pro Filtration family.

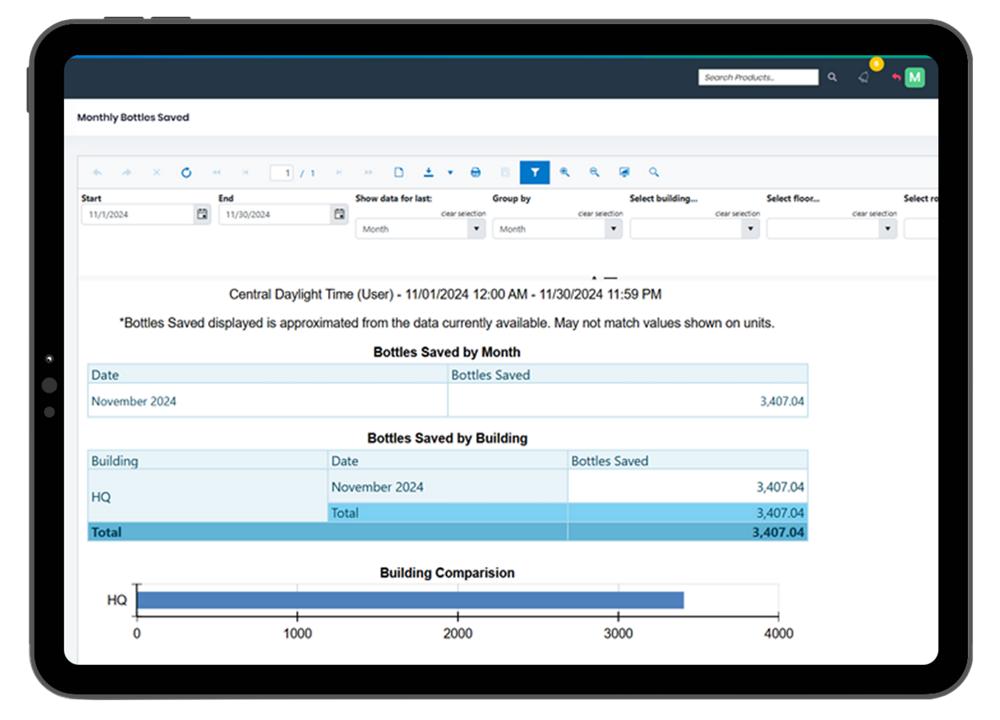

Sustainability Reporting, Built In
Every unit counts bottles saved in real time — monitored remotely, no walkthrough required.
Ready to specify?
Pro Filtration is the bottle filler built for the filtered future. Get everything you need to update your spec today.
AIA Accredited CEU Courses
Deepen your knowledge of Pro Filtration and the future of filtered water infrastructure with Zurn Elkay's AIA-accredited continuing education courses. All courses are 1.0 AIA/HSW LU.
On Demand
Designing for Access: A Guide to ADA Standards for Plumbing Fixtures New
Live Learning
Water Access as Wellness Touchpoints: Beyond Hydration in Human-Centered Design
Live Learning
The Corporate Wellness Equation: How Water Quality Factors into Employee Health Programs
Explore our extensive library of continuing education courses that can be taken on-demand, via in-person sessions or over a live webinar.
Frequently Asked Questions
Pro Filtration is a game-changing advancement in the filtered water industry. As such, you may have questions as to how these new units function and compare to Elkay's other models. Download our comprehensive "Frequently Asked Questions" guide to get all your answers.
How much PFAS reduction does the FLP4 filter provide?
The FLP4 filter is certified to NSF/ANSI 53 for Total PFAS reduction, effectively reducing PFAS substances to below 20 ppt.
Why do third-party certifications matter?
Certifications provide independent verification of filter performance under rigorous conditions, offering reliable assurance beyond manufacturer claims.
Aren’t all bottle fillers filtered?
No, many lack filtration or offer only optional filters. Pro Filtration delivers top-tier certified contaminant removal, including optional PFAS reduction.
What configurations are available?
Available in single and bi-level units, customizable with:
- Standard 10,000-gallon Ultra Capacity Lead filter (included)
- Total PFAS filter for enhanced PFAS reduction
- Sediment filter for improved water clarity and extended filter life
- UVC LED at the dispense point
When will Pro Filtration units be available?
Pre-orders and quotations are available now. Units will ship starting July 1, 2025. Contact your Elkay representative for regional availability.
What colors/materials are available?
Durable stainless steel construction, including the bottle filler, basin, and alcove, ensuring longlasting performance in high-traffic environments. Available in Midnight Black finish. More colors will be available soon.
Is there a non-refrigerated version?
No, all Pro Filtration units currently include integrated cooling. Non-refrigerated options will be introduced later.
Does Pro Filtration fit the same footprint as standard Elkay fillers?
Yes, it uses the same rough-in and plumbing, perfect for new installs or retrofits.

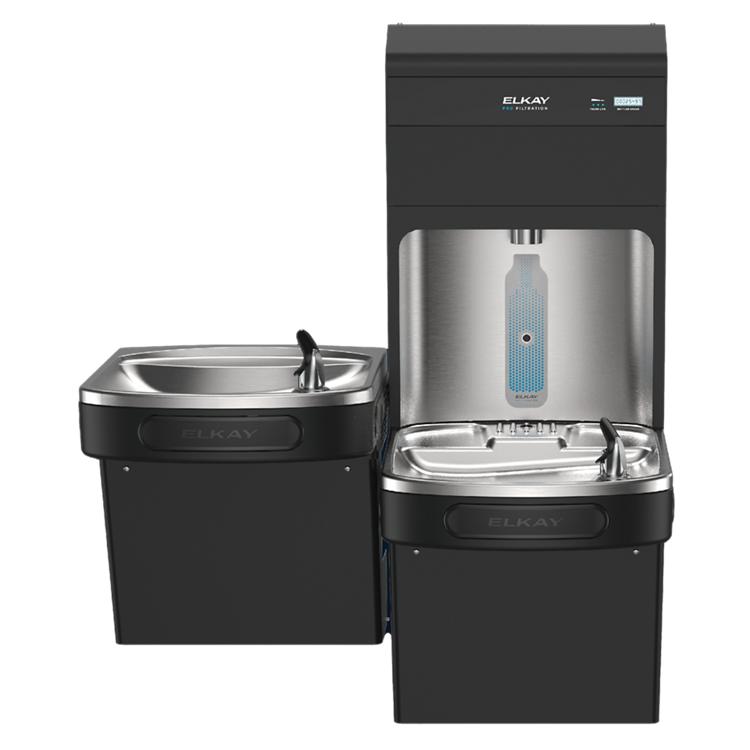

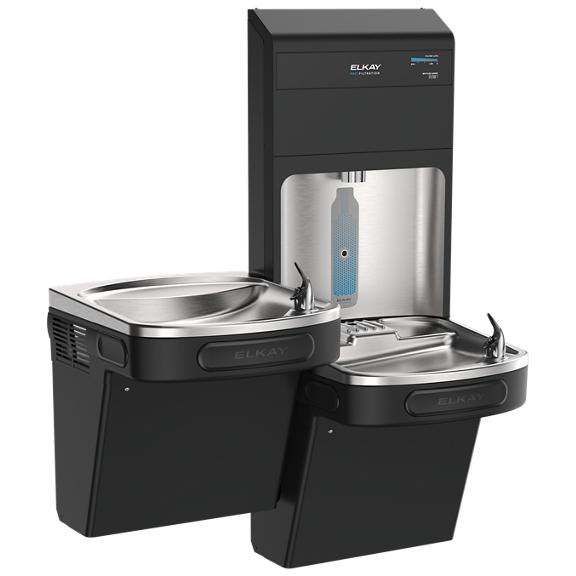

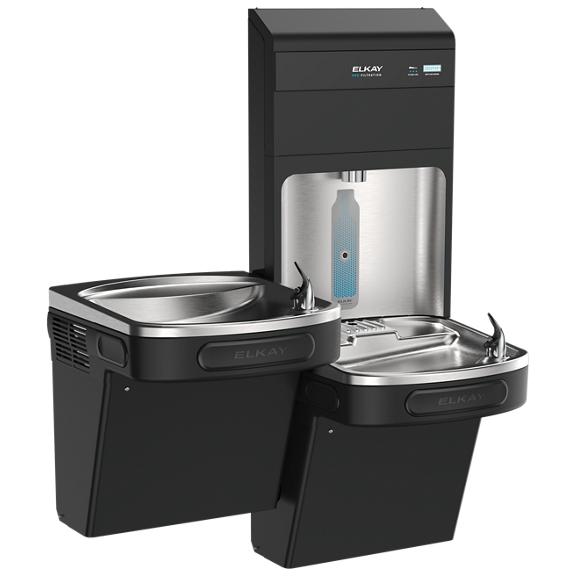

Are bi-level configurations available?

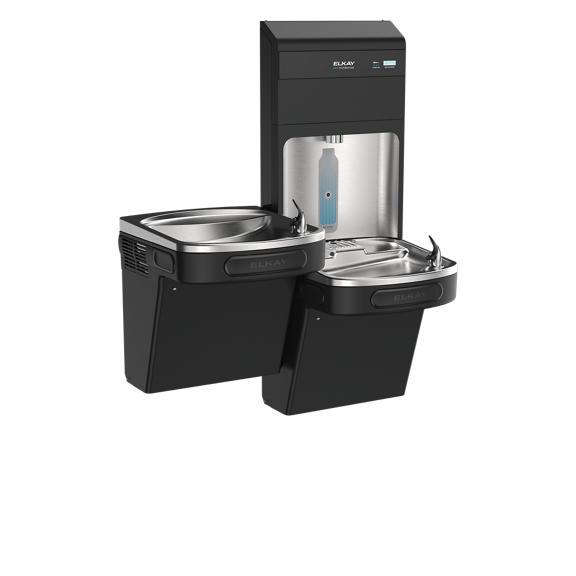

Yes, with traditional left high/right low (LZSTL)
Are bi-level configurations versatile?
Yes, it requires adding a modification in the field: P/N VERSATILEBFKITPRO (Cable Extension for Versatile Pro Bottle Filler)
Where are Pro Filtration bottle fillers manufactured?
Engineered and manufactured in the USA.
Is there a residential model?
No, Pro Filtration is for commercial/institutional use. For homes, consider an Avado Filtered Faucet, Liv or Liv EZ.
| Features | Benefits | ezH2O® Enhanced | ezH2O Original® |
|---|---|---|---|
| FillSafe™ Recognition (filtered models only) | Filter recognition system detects a new Elkay filter and automatically resets the filter monitor light to green. No need to manually reset. | ✖ | |
| Low Energy LED Lighting | An energy efficient touch that helps users see when their bottle is full and illuminates dark hallways. | ✖ | |
| Energy Savings Mode | Programmable refrigeration system can be powered down during times when the unit is not in use to save energy costs. | ✖ | |
| System Diagnostics | Unit automatically reviews the system to ensure it is operating within normal levels. Scrolling alerts appear on the visual display if an issue should arise. | ✖ | |
| Easy Installation | Only one power hookup needed. Everything arrives in one box. Versatile bi-level cooler design allows for standard cooler installation of high-left/low-right or the alternate, reverse cooler installation. | ✖ | |
| Visual Filter Monitor (filtered models only) | Green, yellow and red LED lights indicate filter status and when a filter needs to be replaced. | ✖ | ✖ |
| Exclusive Green Ticker™ | Informs users of the number of 20 oz. single-use water bottles saved from waste by using reusable bottles and cups at the ezH2O. | ✖ | ✖ |
| Hands-free Operation | Sensor activation and bottle rest platform provide users with a touchless bottle filling experience. | ✖ | ✖ |
| Quick Fill | Fills reusable bottles faster than a traditional water fountain. | ✖ | ✖ |
| Minimal Splashing | Dispenses a clean, laminar flow of water so there is minimal splashing when filling reusable bottles and cups. | ✖ | ✖ |
| Dedicated Drains | Bottle filling station dispenser and bubbler have dedicated drains, minimizing splashing and cleanup. | ✖ | ✖ |
| Antimicrobial Protection | Key plastic components on the unit have a special silver ion antimicrobial protectant that inhibits the growth of mold and mildew. | ✖ | ✖ |
| WaterSentry® Plus Filtration (optional) | Uses our industry-leading WaterSentry Plus filter rated for 3,000-gallon capacity and NSF certified to NSF/ANSI 42 and 53 for reduction of lead, Class 1 particulate, chlorine, taste and odor. | ✖ | ✖ |
ezH2O® Outdoor Bottle Filling Stations
Designed specifically for outdoor installations, we offer a family of bottle filling stations ideal for parks and recreation areas, pools, golf courses, stadiums and school and business campuses. Some models included in our original ezH2O line are also rated for outdoor use, such as our vandal resistant and legacy models.
Installation Applications: Wall mount and pedestal.
Feature / Benefits
- Increased Corrosion Resistance: Tubular models are made with Type 316 stainless steel, providing superior protection from the elements.
- Heavy-gauge Construction: Made with tamper-resistant screws that withstand stains and corrosion.
- Sealed Freeze Resistance (optional): Freeze-resistant models feature completely enclosed sealed valves to keep water safe from contamination.
- Vandal Resistant: One-piece bubblers have a chrome-plated hood guard that prevents contamination
from users, and protects against airborne deposits and tampering. - Stunning Colors: Tubular models are available in 12 bold colors.
What makes Pro Filtration different from standard Elkay bottle fillers?
Pro Filtration revolutionizes the bottle filler experience with four key innovations:
- Top-access filter design allowing filter changes in under 30 seconds
- Industry-leading 10,000-gallon filter capacity
- Optional UVC LED technology
- Also features a blue filter indicator light for clear visual confirmation of filtration status
How is Pro Filtration different from other manufacturers?
Advantages include:
- 3x greater filter capacity (10,000 gallons vs. 3,000 gallons)
- Faster, easier filter access with top-access design
- Premium design aesthetics

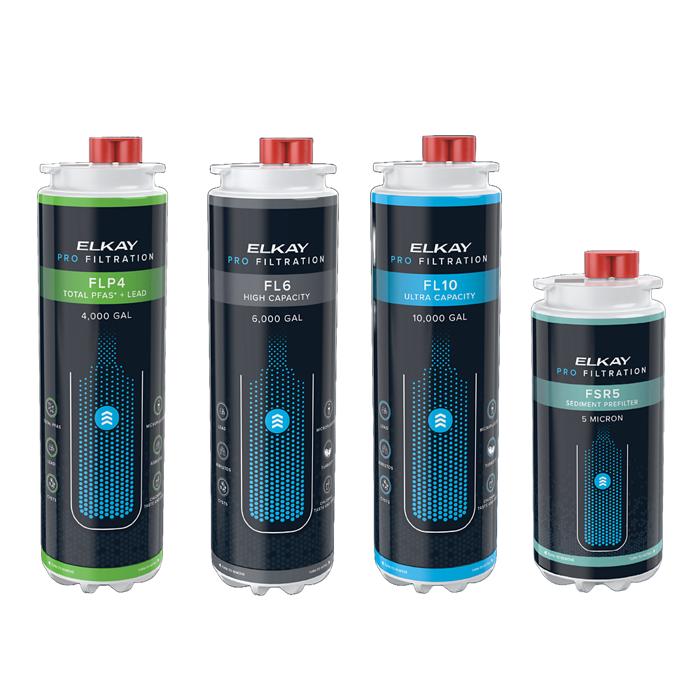

What filter options are available?
- FL10 = 10,000-gallon Ultra Capacity lead filter (standard)
- FL6 = 6,000-gallon High Capacity lead filter (replacement option)
- FLP4 = 4,000-gallon Total PFAS + lead filter (upgrade option)
- FSR5 = Sediment Prefilter (upgrade option)
Can I switch filter types when replacing?
Yes. All filters are interchangeable for replacement. Exception: The FSR5 is not a replacement for a contaminant-reducing filter.
Are Pro Filtration filters compatible with previous Elkay units?
No, Pro Filtration filters are not compatible with older units and vice versa.
Can the filter be bypassed?
No, filters must be installed for proper operation.
Is the sediment prefilter required?
The sediment prefilter does NOT need to be selected at purchase, but it's best when it is.
When is a sediment prefilter recommended?
Intended in areas where dirt and sand are present in the water supply Recommended to
- Protect your filter
- Preserve your system
- Keep your flow rates strong
Can a sediment filter be added later if not ordered initially?
Yes. The optional Stage 1 Sediment Prefilter can be added and programmed in the field. Part number: 1100000031
How do I know when to change the filter?
Indicators include:
- Red LED
- plumbSMART™ remote alerts (if enabled)
What if I don’t replace a sediment filter?
Sediment Prefilters should be changed along with the main contaminant reducing filter or if you notice a flow rate reduction. Flow rate reduction is likely due to sediment build-up within the prefilter.
Is the UVC module replaceable?
Yes.
When does the UVC module need to be serviced?
The UV unit life is 10,000 hours and should be serviced. Given normal use the UV would need to be replaced after 8 to 10 years of service.
How is the filter accessed?
Via the top-access design: open the panel, rotate the filter a quarter turn, and replace in under 30 seconds.
Are tools needed for filter changes?
Yes, a standard T25 Security Torx Bit is required, preventing vandalism but easy to source.
Can I update a non-filtered cooler to a filtered bottle filling station all at once?
Yes, refer to our Retrofit Bottle Filling Stations Compatibility Guide to find the right product for you.
Why upgrade to Pro Filtration?
- Maintenance efficiency: 30-second filter changes, 3x longer filter life
- Superior water quality: Certified reduction of lead, Total PFAS, microplastics, and more
- Premium aesthetics: Modern Midnight Black with stainless steel alcove
How does pricing compare?
Initial cost is 10-15% higher than standard models, but total ownership cost is lower due to maintenance savings. Contact Elkay for pricing.
How much do replacement filters cost?
Prices vary by model and quantity. The FL10 offers excellent value with 3x more capacity than competitors. Contact Elkay for details.
Can the filter housing be purchased separately and added to standard units?
No, the top-access filter design is integrated and not retrofit-compatible.
Is there an extra cost or setup for smart capabilities?
There is no additional cost for standard plumbSMART access. Startup assistance and training is available through our Customer Success team at zurnconnectedproducts@ zurn.com. A gateway is required (ZGW-LORA-W1-LTE). Nominal cellular data usage fees apply to LTE gateways. As stated above, P/N 1100000026 (Pro Endpoint Connected Kit) will be required with this iteration of Pro Filtration.
What filter options are available? (Standard lead reduction filter, PFAS filter, sediment prefilter)
- FL10 = 10,000-gallon Ultra Capacity lead filter (standard)
- FL6 = 6,000-gallon High Capacity lead filter (replacement option)
- FLP4 = 4,000-gallon Total PFAS + lead filter (upgrade option)
- FSR5 = Sediment Prefilter (upgrade option)
Can Pro Filtration smart tech integrate with Building Automation Systems (BAS)?
Yes, all Pro Filtration units are compatible with our patented plumbSMART™ system which supports integration with most modern BAS systems. Available data includes filter status, device usage, water consumption, maintenance alerts and more, across multiple units. This model requires a Connected Endpoint Board5 that can be added in the field in minutes: P/N 1100000026 (Pro Endpoint Connected Kit)
What does smart connectivity monitor?
Connected models include smart technology that provides a centralized view of filter life, water usage, and vital system performance information that can be accessed remotely and securely through plumbSMART. You'll receive timely notifications for filter replacements and other maintenance and can track your water consumption habits. This data allows you to easily organize filter changes and anticipate issues before they become problems. Additionally, you can remotely configure, execute and document remote line flushing schedules to support water safety management plans across your drinking water fleet
Does the unit retain bottle count during power loss?
Yes, non-volatile memory preserves count data through outages.
What is the expected lifespan of Pro Filtration units?
Designed for 10+ years with proper maintenance. Includes a 5-year limited warranty on refrigeration and 1-year on electrical and water systems.
Are Environmental Product Declarations (EPDs) available?
We now have EPDs available for these products.
Why do third-party certifications matter?
Certifications provide independent verification of filter performance under rigorous conditions, offering reliable assurance beyond manufacturer claims.
Paired with High-performing, Extended Duration Filters
Enhanced filtration system uses new Elkay Pro Filtration™ filters, featuring high capacities of up to 10,000 gallons and advanced contaminant reduction. Now reduce Total PFAS*, lead, microplastics, sediment and more.
Peruse the Pro Filtration options here. Visit the product pages to locate and download valuable information, such as specification sheets, BIM files, Where to Buy, and installation instructions.
BROWSE THE PRODUCTS
DISCOVER ELKAY PRO FILTRATION
Watch the video below to get a closer look.
*Total PFAS as defined by NSF/ANSI 53.
PRO FILTRATION IN ACTION

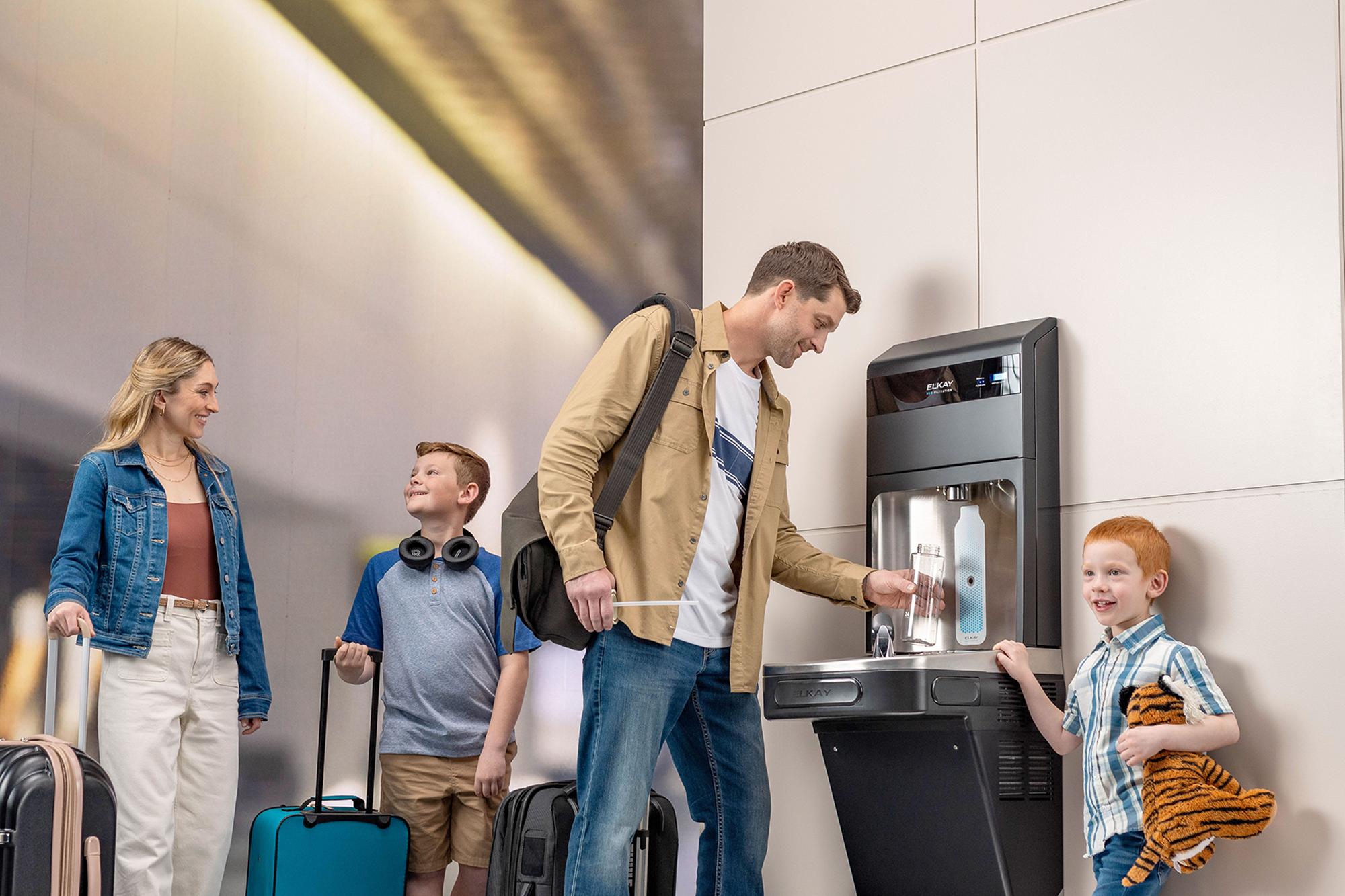

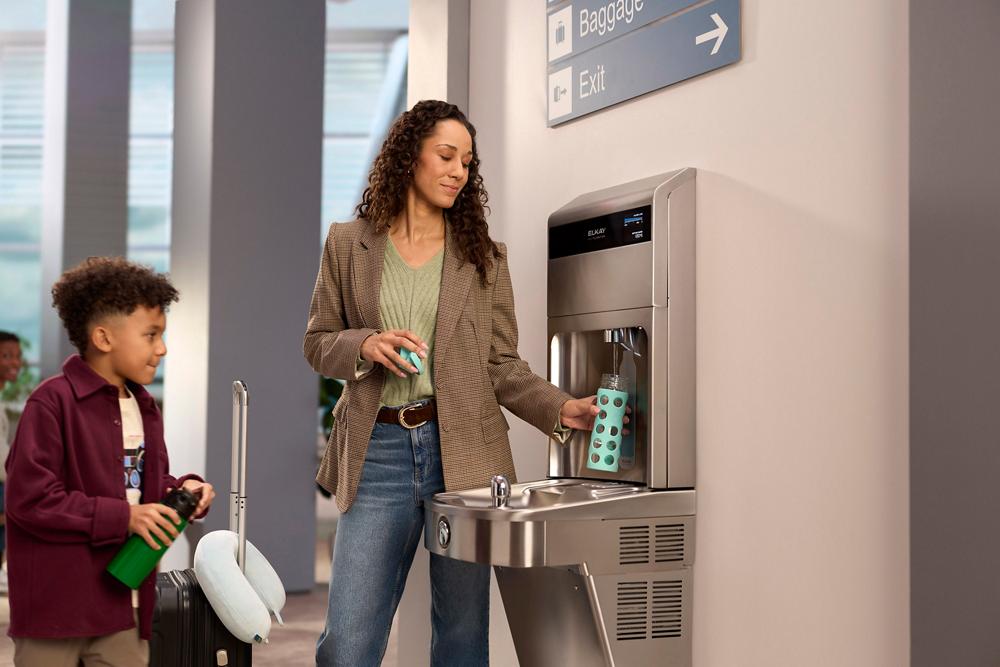

Airport Market
Designed specifically for high-traffic terminals, Pro Filtration stations feature advanced filtration that removes more contaminants than standard units—delivering cleaner, safer water for travelers from around the world, 24/7/365. With top-access ergonomic filter changes and long-lasting filters, airports can ensure exceptional water quality with minimal maintenance disruption to round-the-clock operations.
Inside the Numbers: Airports today balance environmental goals with passenger amenities. Just 15 stations prevent 1.89 million bottles from landfills, eliminating 89,200 pounds of waste annually. This transforms your sustainability initiatives into visible action while meeting travelers' expectations for quality filtered water throughout their journey.

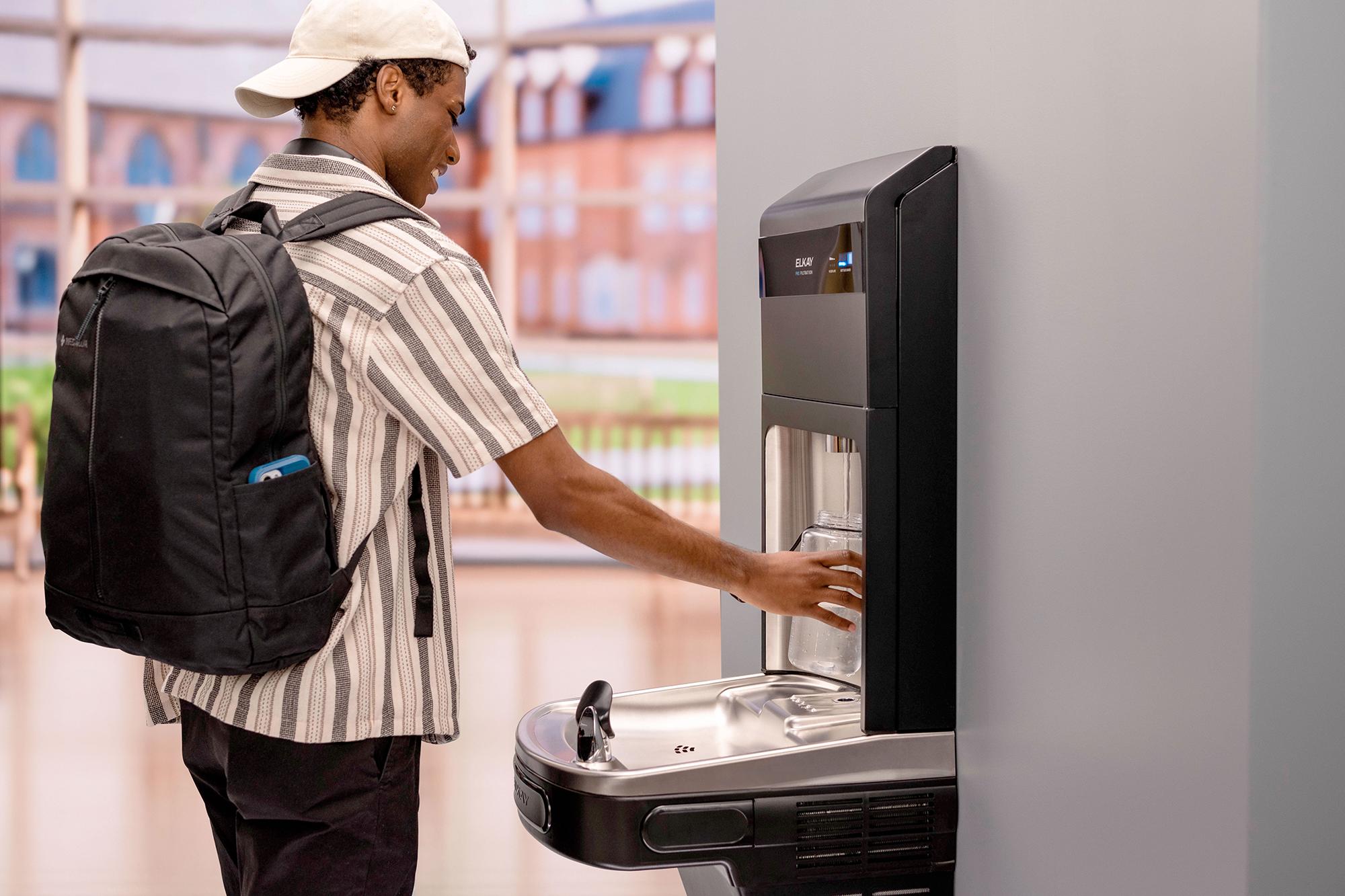

Higher Education Market
We’ve reimagined the award-winning bottle filling station you’ve come to know to keep up with the growing demands of colleges and universities. Elkay Pro Filtration offers modern style and unmatched efficiency — with the same trusted reliability.
Facility Directors and Maintenance Managers at higher education institutions carry a large responsibility, keeping buildings continuously functioning optimally, often on sprawling campuses. Equipment efficiency and reliability are of utmost importance to these busy campus stewards. Pro Filtration brings unprecedented ease to filter changes and maintenance across campus, with quick, hassle-free access to filter compartments, and high-capacity filters allowing for less frequent changeouts throughout the school year. Potable water distribution across campus has never been so safe, simple and seamless.
