Cleaner, Safer Water
Elkay filtered bottle filling stations are a hydration innovation that reduce lead, PFAS (PFOA/PFOS), microplastics, and other harmful contaminants, putting cleaner, safer water within everyone's reach, all while helping to minimize plastic bottle waste in the environment. New filtered bottle filling stations save time, cut costs and use fewer resources with our new Drop Down Wrapper, high-capacity filtration, and smart connected capabilities.
Elkay bottle filling stations are perfect for customers looking to install advanced drinking water facilities in public places including educational institutions, health care facilities, office complexes, fitness clubs, and hospitality spaces. Bottle Filling Stations enable organizations, businesses, and cities to achieve their sustainability goals.

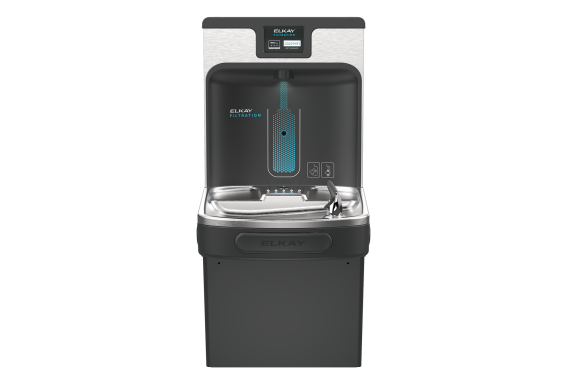

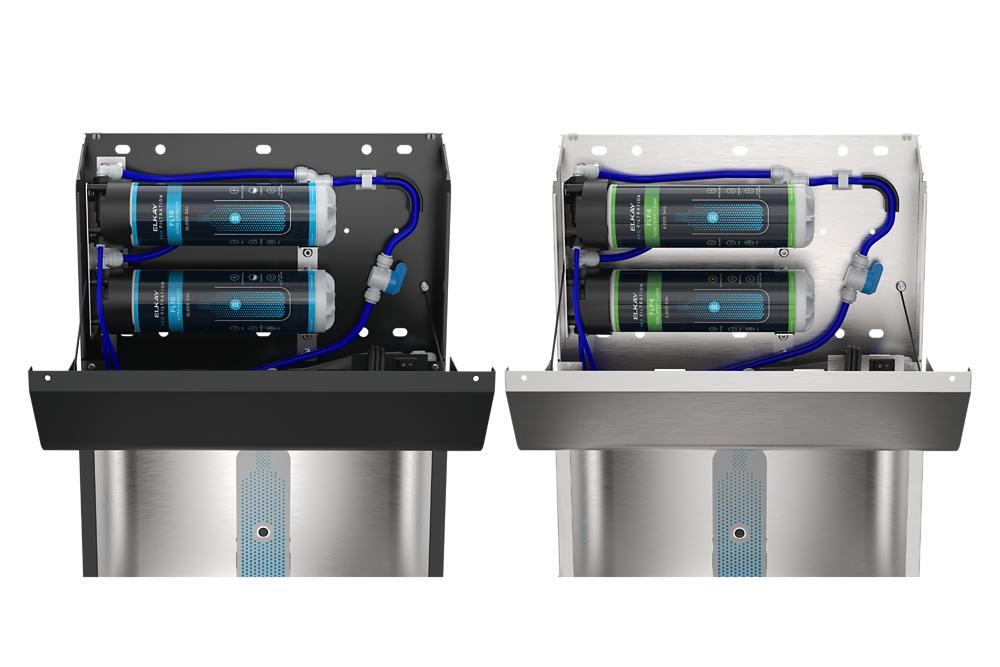

Pro Filtration IS the Future
Elkay's next generation of bottle filling stations is almost here, featuring cutting-edge architecture with greater efficiency and easier filter replacements.
You’re in the market for a new bottle filling station — but which one is right for you?
Browse by Product Type

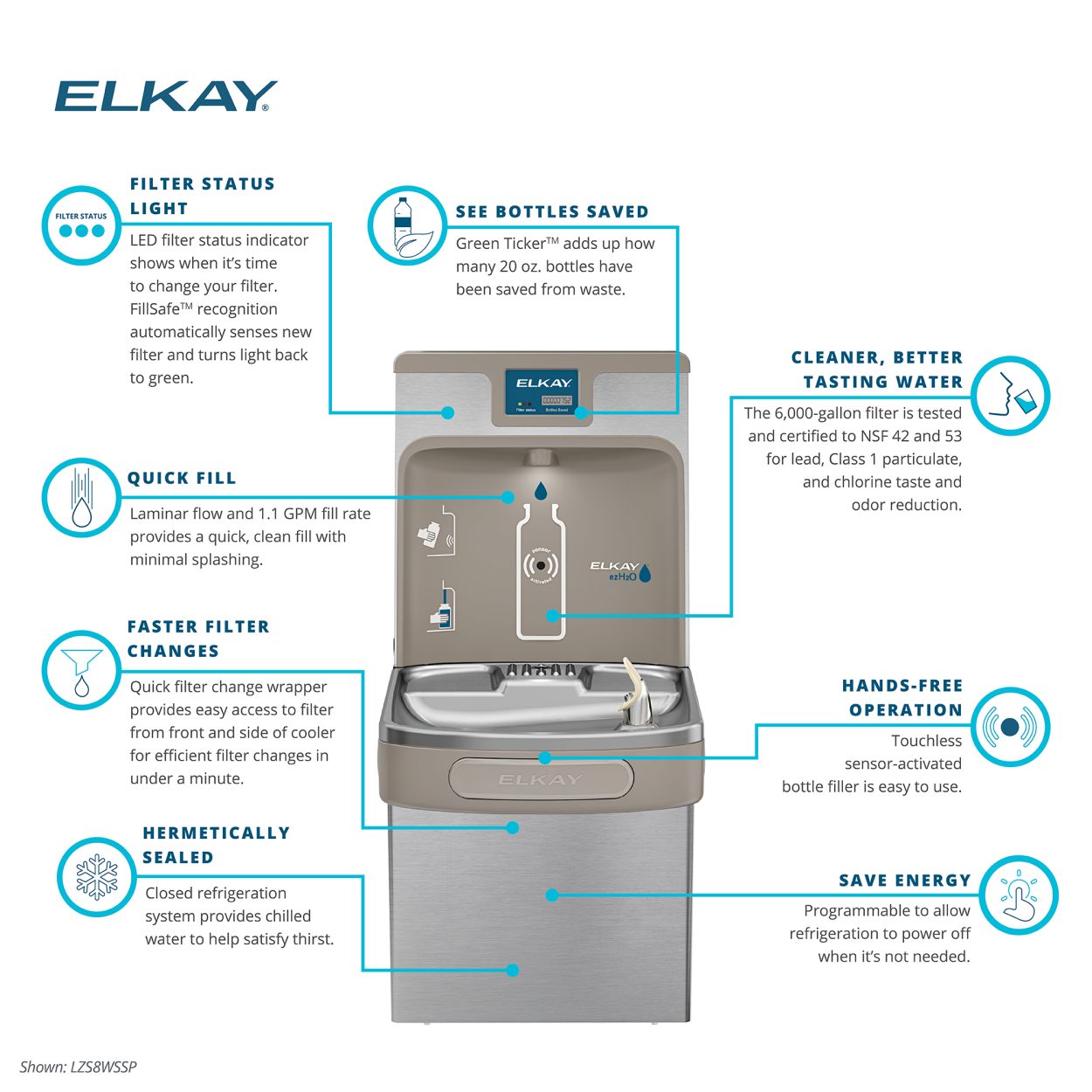

Product Features:
- Filter Status Light: LED filter status indicator shows when it's time to change your filter. FillSafe™ recognition automatically senses new filter and turns light back to green.
- See Bottles Saved: Green Ticker™ adds up how many 20 oz. bottles have been saved from waste.
- Cleaner, Better Tasting Water: The 6,000-gallon filter is tested and certified to NSF 42 and 53 for lead, Class 1 particulate, and chlorine taste and odor reduction.
- Quick Fill: Laminar flow and 1.1 GPM fill rate provides a quick, clean fill with minimal splashing.
- Faster Filter Changes: Quick filter change wrapper provides easy access to filter from front and side of cooler for efficient filter changes in under a minute.
- Hands-free Operation: Touchless sensor-activated bottle filler is easy to use.
- Hermetically Sealed: Closed refrigeration system provides chilled water to help satisfy thirst.
- Save Energy: Programmable to allow refrigeration to power off when it's not needed.
Explore Newly Enhanced Bottle Filling Stations

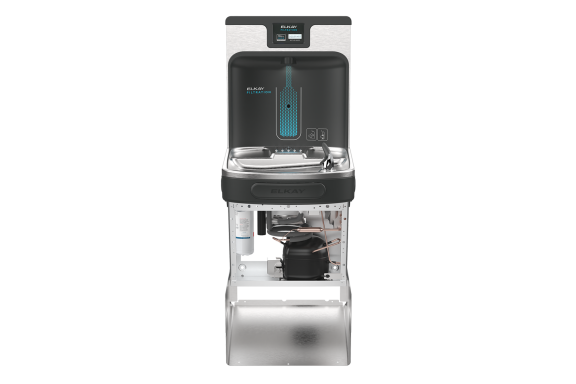

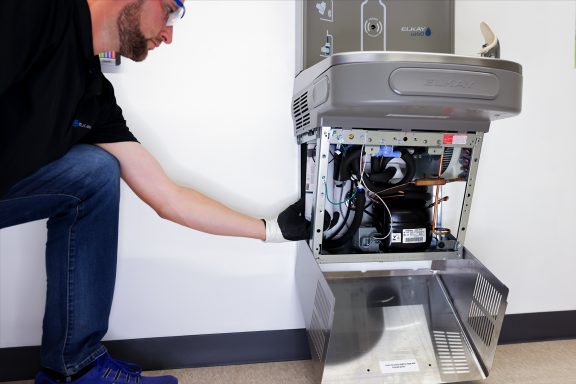

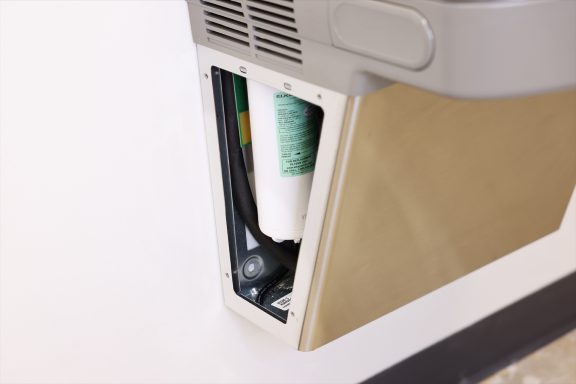

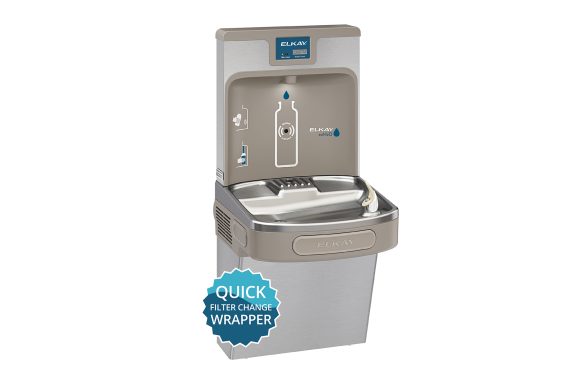

Change Filters in Less than a Minute
Elkay's innovative drop-down wrapper results in quicker filter changes and less downtime. Maintenance and facilities staff can now access the filter from the front and side of the cooler in less than one minute.
Certified PFAS (PFOA/PFOS) Reduction
Select enhanced bottle filling stations ship with the industry-leading Elkay WaterSentry 71300C PFAS (PFOA/PFOS) filter. This filer is tested and certified to NSF/ANSI standards 42 and 53 for the reduction of PFAS (PFOA/PFOS), two prevalent PFAS chemicals that can cause negative health impacts in both adults and children. The result is safer, better-tasting drinking water.
Units that ship with the 71300C filter also feature the new Quick Filter Change Wrapper for faster filter replacements.
Shop Our Best Sellers
- Item 1
- Item 2
- Item 3
- Item 4
- Item 5
- Item 6
- Item 7
- Item 8
- Item 9
- Item 10
- Education
- Retail
- Municipality
- Industrial

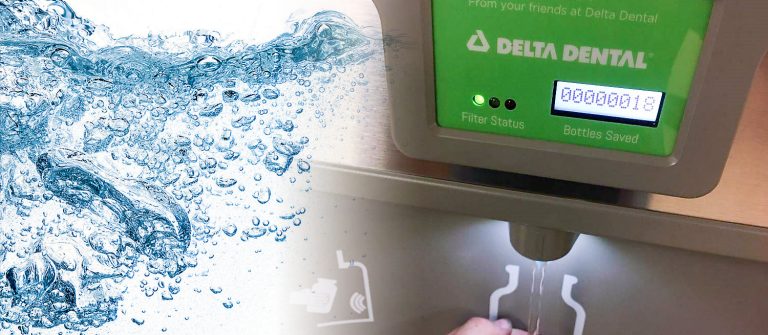

FEATURED: DELTA DENTAL
Encouraging children to drink more water during their school day has become a top priority for the Delta Dental Foundation, who has recently rolled out the Rethink Your Drink: Water's Cool at School Program. With Elkay's Installation Services, the ezH2O units were installed in the schools as quickly and seamlessly as possible.
FEATURED: EVEREVE
Among its many family-friendly features, Evereve stores were stocked with bottled water to hand out when anyone got thirsty. As Evereve thought about what's important to the company as well as their moms, it was clear that both want to hand down a better environment to our children. Thus began the search for more sustainable water options.
FEATURED: RURAL COMMUNITY ASSISTANCE CORPORATION
While Sarah’s group had done a lot of work in the past around water and wastewater technical assistance, the idea of delivering safe water through bottle filling stations was a whole new thing.
A Cost-Friendly, Sustainable Solution for Better Hydration
After spending more than $85,000 per year on water, plus additional costs to store water bottles, one well-known American manufacturing company knew they needed to make a change. With exponential costs spent on water, plastic bottle waste piling up, and employees lacking easy access to water, the company turned to Elkay for help. By partnering with Elkay, they were able to provide their employees with proper, continuous hydration while saving money. In this case study, discover how they:
- Saved over $100,000 by installing award-winning bottle filling stations
- Eliminated plastic waste by encouraging employees to use reusable cups
- Provided their employees with easy access to water
Bottles of
water served ...
without the plastic:

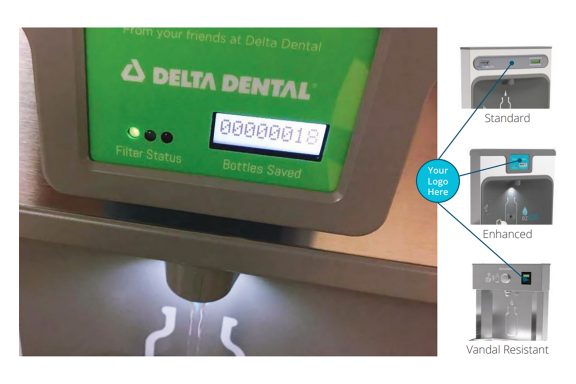

Customization
Additional Resources
FAQs
Lead
Lead often enters water when plumbing materials corrode. It’s undetectable by taste, sight or smell. In children, lead exposure has been linked to damage to the central and peripheral nervous system, learning disabilities, shorter stature, impaired hearing, and impaired formation and function of blood cells.
Adults exposed to lead can suffer from cardiovascular effects, increased blood pressure and incidence of hypertension, decreased kidney function and reproductive problems in both men and women.
Source: EPA.gov
Cysts
Two types of common types of cysts are Giardia lamblia and Cryptosporidium. They enter drinking water from human and animal waste, and can lead to gastrointestinal illness such as dysentery, vomiting and cramps. They are not life threatening if treated.
Source: EPA.gov
Chlorine
Water comes from many sources, including lakes and wells. It can be contaminated at the source. It can also be contaminated with germs as it travels through miles of piping. To prevent contamination, water companies add a disinfectant — usually either chlorine or chloramine — that kills disease-causing germs such as Salmonella, Campylobacter and norovirus. Though chlorine is used as a disinfectant, it can leave an undesirable taste and smell.
Source: CDC.gov
Sediment and Particulate
Sediments are naturally occurring particles that develop as earth materials. They break down through weathering and erosion. Sediment comes from sand, rocks and minerals, or may consist of organic particles of plants and microbes. They can take on a cloudy and unappealing look in water.
Source: Water Systems Council
ezH2O® bottle filling stations provide convenient, sustainable and safer hydration. They are ideal for commercial environments both indoor and outdoor, including education, parks and recreation, government, health care, public facilities, fitness clubs and hospitality. Our expansive portfolio offers solutions to fit every budget and installation requirement. Options include standard single and bi-level, mechanical, energy-efficient, surface mount, vandal-resistant, architectural and retrofit models.

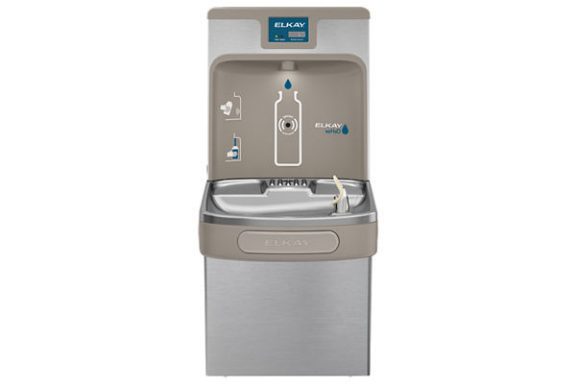

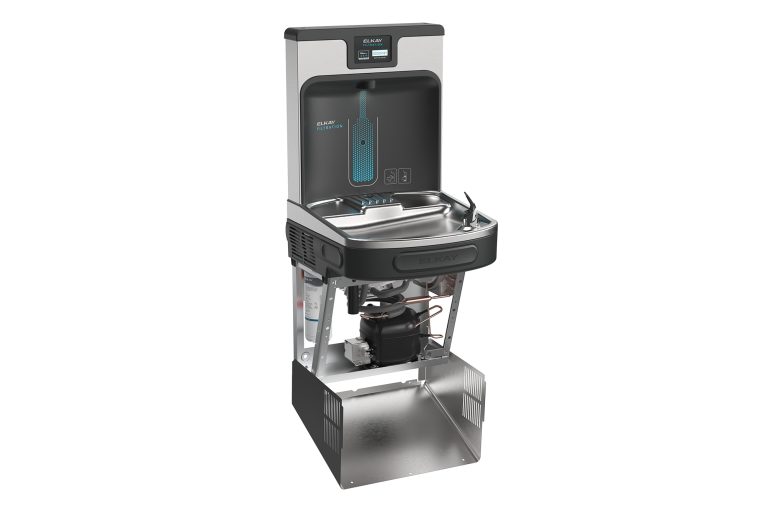

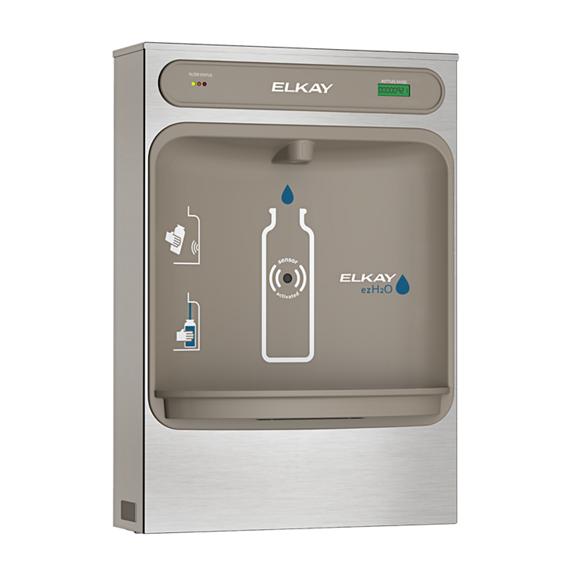

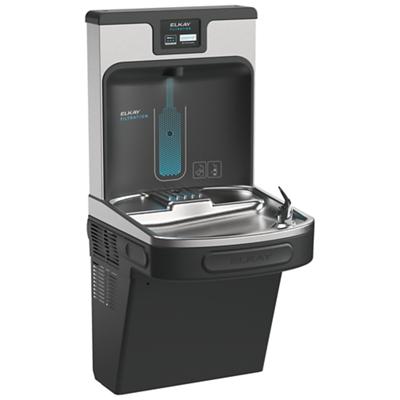

ezH2O® Enhanced
The perfect solution for nearly every application, our enhanced models have all the great features of our original line with added ingenuity. With LED lighting to illuminate dark hallways and an energy-savings mode that helps reduce energy costs, Elkay’s enhanced models have been the customer choice for years.
Installation Application: Wall mount.
View our selection of Enhanced bottle filling stations

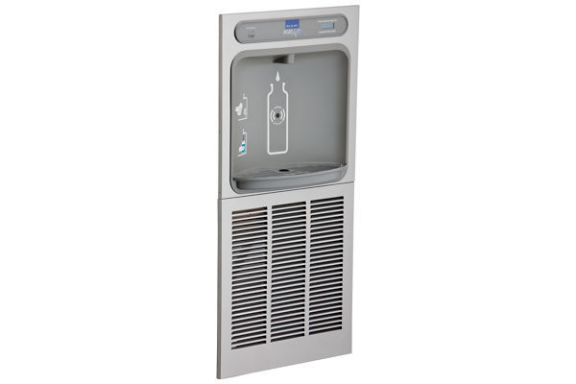

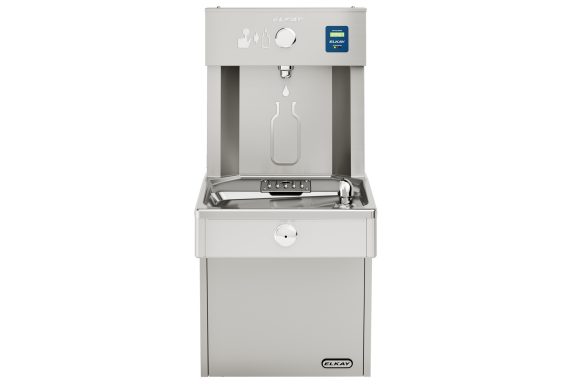

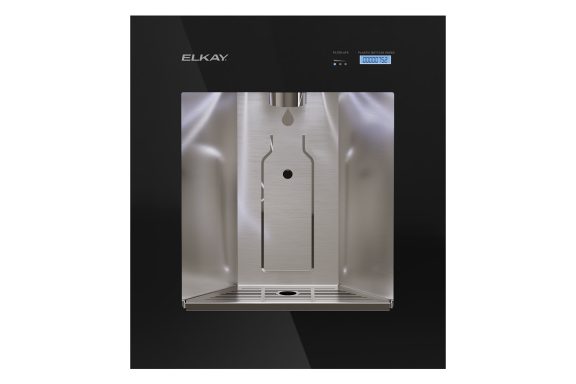

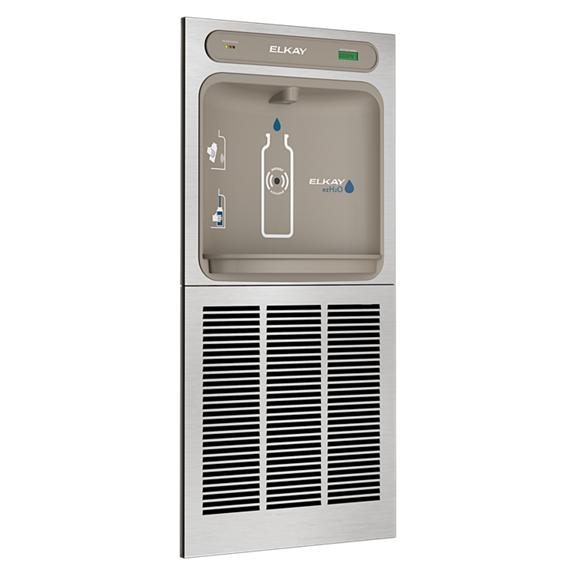

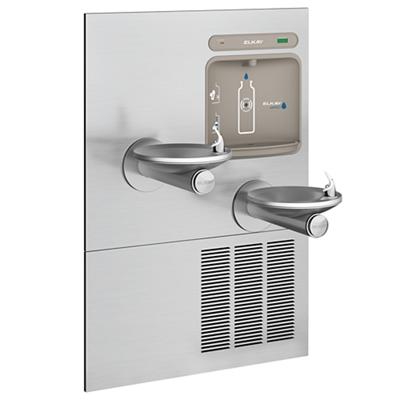

ezH2O® Original
Elkay’s original bottle filling stations offer essential features and benefits for numerous applications to fit your needs.
Installation Applications: Wall mount and in wall.
| Features | Benefits | ezH2O® Enhanced | ezH2O Original® |
|---|---|---|---|
| FillSafe™ Recognition (filtered models only) | Filter recognition system detects a new Elkay filter and automatically resets the filter monitor light to green. No need to manually reset. | ✖ | |
| Low Energy LED Lighting | An energy efficient touch that helps users see when their bottle is full and illuminates dark hallways. | ✖ | |
| Energy Savings Mode | Programmable refrigeration system can be powered down during times when the unit is not in use to save energy costs. | ✖ | |
| System Diagnostics | Unit automatically reviews the system to ensure it is operating within normal levels. Scrolling alerts appear on the visual display if an issue should arise. | ✖ | |
| Easy Installation | Only one power hookup needed. Everything arrives in one box. Versatile bi-level cooler design allows for standard cooler installation of high-left/low-right or the alternate, reverse cooler installation. | ✖ | |
| Visual Filter Monitor (filtered models only) | Green, yellow and red LED lights indicate filter status and when a filter needs to be replaced. | ✖ | ✖ |
| Exclusive Green Ticker™ | Informs users of the number of 20 oz. single-use water bottles saved from waste by using reusable bottles and cups at the ezH2O. | ✖ | ✖ |
| Hands-free Operation | Sensor activation and bottle rest platform provide users with a touchless bottle filling experience. | ✖ | ✖ |
| Quick Fill | Fills reusable bottles faster than a traditional water fountain. | ✖ | ✖ |
| Minimal Splashing | Dispenses a clean, laminar flow of water so there is minimal splashing when filling reusable bottles and cups. | ✖ | ✖ |
| Dedicated Drains | Bottle filling station dispenser and bubbler have dedicated drains, minimizing splashing and cleanup. | ✖ | ✖ |
| Antimicrobial Protection | Key plastic components on the unit have a special silver ion antimicrobial protectant that inhibits the growth of mold and mildew. | ✖ | ✖ |
| WaterSentry® Plus Filtration (optional) | Uses our industry-leading WaterSentry Plus filter rated for 3,000-gallon capacity and NSF certified to NSF/ANSI 42 and 53 for reduction of lead, Class 1 particulate, chlorine, taste and odor. | ✖ | ✖ |

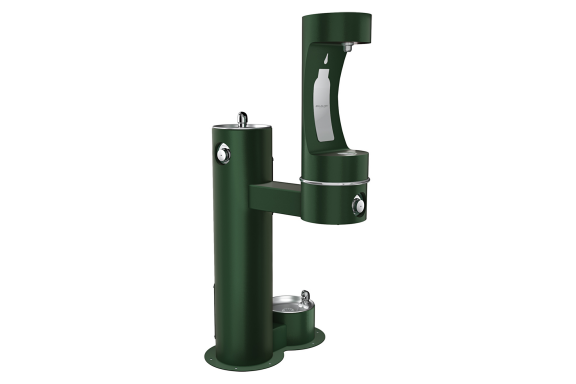

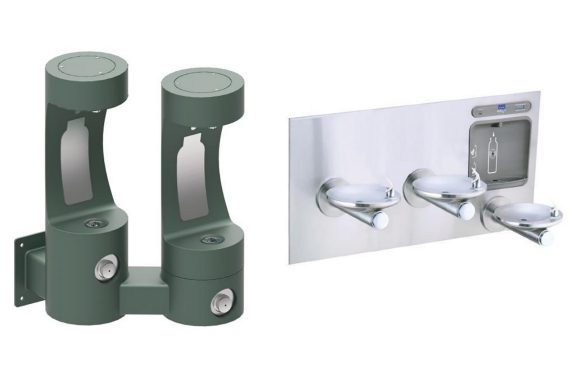

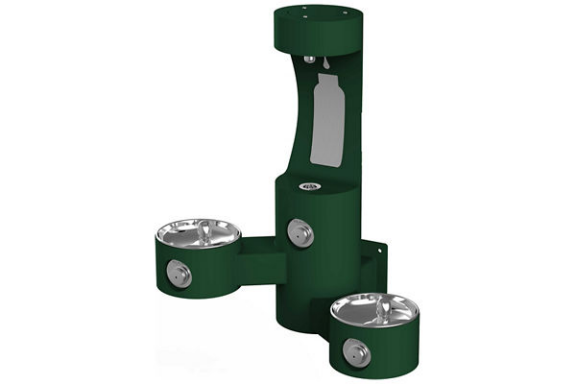

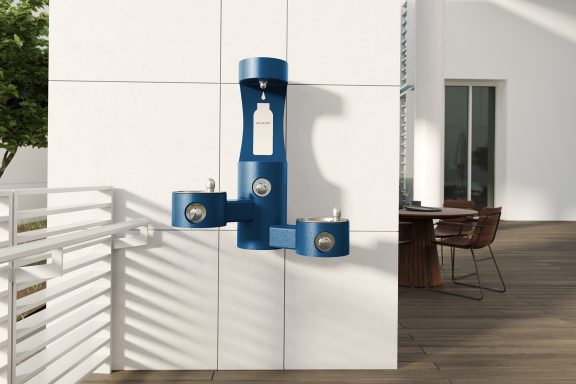

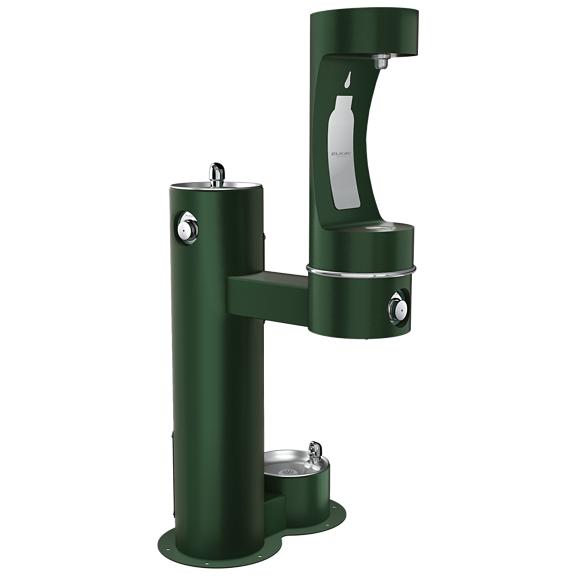

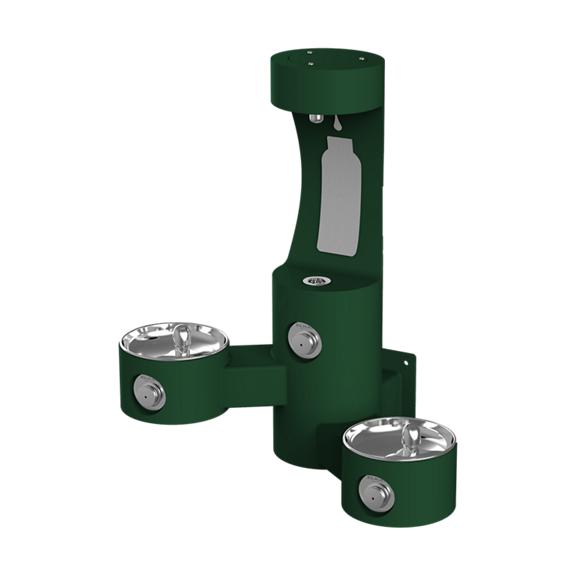

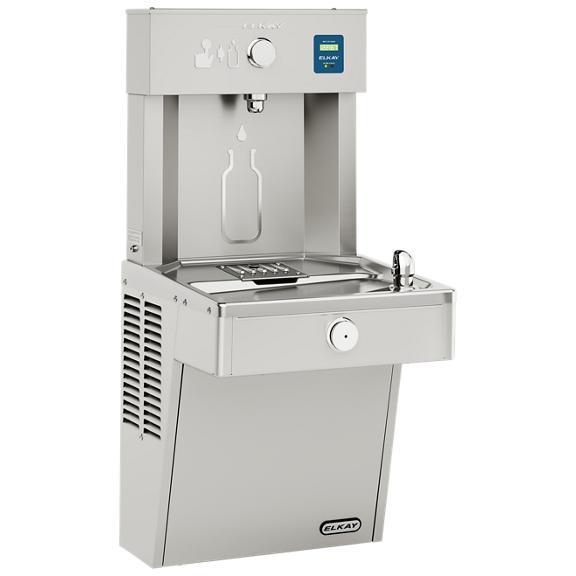

ezH2O® Outdoor Bottle Filling Stations
Designed specifically for outdoor installations, we offer a family of bottle filling stations ideal for parks and recreation areas, pools, golf courses, stadiums and school and business campuses. Some models included in our original ezH2O line are also rated for outdoor use, such as our vandal resistant and legacy models.
Installation Applications: Wall mount and pedestal.
Feature / Benefits
- Increased Corrosion Resistance: Tubular models are made with Type 316 stainless steel, providing superior protection from the elements.
- Heavy-gauge Construction: Made with tamper-resistant screws that withstand stains and corrosion.
- Sealed Freeze Resistance (optional): Freeze-resistant models feature completely enclosed sealed valves to keep water safe from contamination.
- Vandal Resistant: One-piece bubblers have a chrome-plated hood guard that prevents contamination
from users, and protects against airborne deposits and tampering. - Stunning Colors: Tubular models are available in 12 bold colors.
How do I know what replacement filter to order for my Elkay bottle filling station, cooler or fountain?
Click here to use our Filter Selection Tool to find your filter.

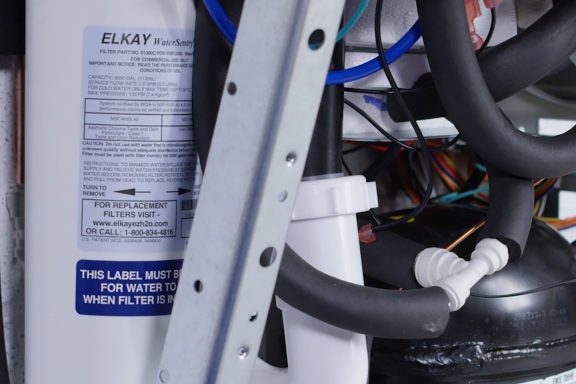

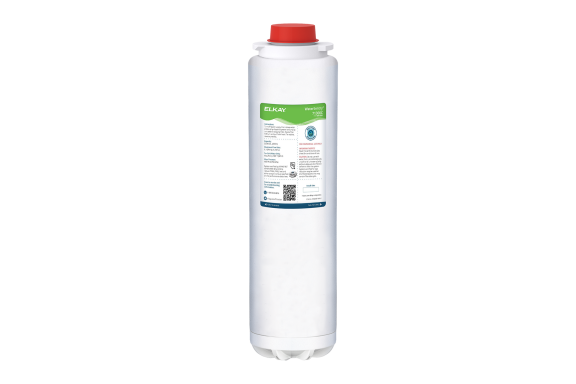

What kind of water filter is used in Elkay bottle filling stations?
Our WaterSentry® filter is a carbon block filter with a polypropylene prefilter that is rated to NSF 42 and 53 for lead, chlorine taste and odor. We offer a 3,000-gallon filter (51300C) for all our bottle filling stations and a 6,000-gallon high-capacity filter (51600C) specifically for our enhanced bottle filling stations.
What does the filter remove from the water?
Both the WaterSentry 51300C and the 51600C reduce lead, cysts, sediment/particulate and chlorine taste and odor.
How long does a filter last?
Our WaterSentry 51300C filter is rated for 3,000 gallons which is approximately 19,200 20-oz. bottles. Our WaterSentry 51600C filter is rated for 6,000 gallons which is approximately 38,400 20-oz. bottles. Actual filter life depends on usage. We recommend changing the filter at least once a year.
What do the lights mean on the bottle filling station? How do I know if the water is safe to drink?
Green LED: Your filter is working.
Yellow LED: Your filter should be changed.
Red LED: Filter has reached end of life and may no longer be effective.
Flashing Red: Only applies to P-SKU’s.
How do I reset the visual filter monitor light?
Enhanced bottle filling stations include FillSafe™ recognition, a feature that detects when a new Elkay filter is installed and automatically resets the filter monitor light from red back to green. Original bottle filling stations require just a few easy steps. Click here to watch our instructional video.
How easy is it to change the filter?
Replacing your filter is as easy.
1. Turn off the water supply; dispense water to relieve pressure.
2. Turn used filter counterclockwise 1/4 turn to remove from filter head.
3. Remove cap from new filter and use to seal used filter.
4. Write the date of filter installation on the label. Insert new filter into existing filter head and turn fully clockwise so the label with date is clearly visible.
5. Turn on water supply and run water for 10 minutes to purge air and fine carbon particles from filter.
6. Reset the filter monitor, if necessary. See the Use Manual for your specific drinking water unit for instructions.
Enhanced models feature our FillSafe filter recognition that automatically identifies when a new filter is present and updates the LED light back to green. Click here to watch the video tutorial.
Do I have to buy the filter from Elkay?
We recommend using a genuine Elkay filter. Our filters are designed and manufactured to work within Elkay units and provide optimum performance. To purchase filters, click here or call 800-834-4816.
I ordered a replacement Elkay filter for my Elkay unit, and it is shorter than the original filter? Will it still work?
Yes. Our filters were redesigned from 12" to 9" to be more compact. They will still fit your Elkay unit and maintain current filter performance and compliance.
Can I add a filter to a non-filtered Elkay bottle filling station, cooler or fountain?
Yes. Elkay offers filter retrofit kits that can be added to many existing Elkay water delivery products. The EWF3000 Filter System Kit converts a non-filtered bottle filler into a filtered unit. The EWF172 Filter System Kit converts a non-filtered cooler or fountain into a filtered unit. See table below for all retrofit options.
| Type of Unit | Elkay Retrofit Filtration System Kit | Retrofit Type* | Replacement Filter Part Number |
|---|---|---|---|
| Bottle Filling Stations | EWF3000 | Internal/External |
51300C |
| Coolers & Fountains | LF2 | Internal/External |
56192C |
| EWF172 | Internal/External
|
51299C | |
| EF1500VRBC (Vandal-resistant box) | External | ||
| EF1500VRBMC (Comes with filter monitor) | External |
Can I update a non-filtered cooler to a filtered bottle filling station all at once?
Yes, refer to our Retrofit Bottle Filling Stations Compatibility Guide to find the right product for you.
Why should I install an Elkay bottle filling station?
Elkay ezH2O® bottle filling stations provide users with convenient, refreshing, great tasting drinking water without the need for disposable plastic bottles. They encourage healthy hydration habits as well as promote sustainability.
- Save Money: The cost of disposable, single-serve beverages adds up fast. ezH2O bottle filling stations help reduce or eliminate these costs.
- Save Precious Time and Resources: ezH2O bottle filling stations provide water on demand, eliminating the need to purchase and store single-serve beverages.
- Save Energy: Models with the programmable refrigeration feature can be powered down during times when the unit is not in use to save on energy costs. Enhanced models also come with low energy LED illumination for an energy efficient touch that helps users see when their bottle is full.
- Save the Environment: ezH2O bottle filling stations help reduce the number of disposable plastic bottles that end up in landfills or polluting our oceans. The exclusive Green Ticker™ counts the number of plastic bottles you are saving from waste and displays this right on the unit.
Where can bottle filling stations be installed?
Everywhere! Our comprehensive portfolio of bottle filling stations means that we are sure to have a model to fit your needs. Elkay's ezH2O® bottle filling stations are ideal for many environments both indoor and outdoor including education, commercial, health care, fitness clubs and hospitality and more. We provide solutions for wall mount, inwall and outdoor applications and offer a variety of models such as energy efficient, vandal resistant, mechanical, surface mount and architectural.
Who can install a bottle filling station?
We recommend installation by Elkay authorized service personnel. Call 800.952.8064 or click here to learn more about the Elkay Installation Services Program.
How easy is it to replace existing drinking water fixtures with an ezH2O® bottle filling station?
It depends on the type, style and location of your current water delivery fixture. We recommend contacting a local sales representative who can provide an assessment of your site and current fixtures and suggest the best option for your specific needs.
How long does it take to install a bottle filling station?
On average, it takes approximately 1-2 hours to complete a retrofit installation using existing plumbing.
How much water pressure is required?
ezH2O® bottle filling stations are designed to operate on 20 psi to 105 psi supply line pressure. Our bi-level non-filtered units require a minimum of 40 psi supply line pressure to ensure adequate stream height from each bubbler when activated simultaneously. Bi-level filtered models, regardless of supply line pressure, cannot provide adequate stream height from each bubbler when activated simultaneously. Please consult our specification sheet for the detailed specifications for the model you are considering.
What is lead? Where does it come from?
For centuries, lead has been widely used in plumbing systems that transport water. Despite changes in plumbing codes making it illegal to use lead pipes or solder, lead is still found in older pipes, solder and brass fittings in existing plumbing systems. Lead is toxic and continuous exposure can cause a variety of health problems, especially in infants and children. Please visit epa.gov/lead to learn more.
Do your products reduce lead?
Select WaterSentry® filtration systems reduce lead to meet the requirements necessary to achieve our NSF/ANSI 53 certification, making the water cleaner and healthier.
Water delivery product examples include:
- Elkay Filtered Bottle Filling Stations.
- Elkay Filtered Water Coolers.
Our filters are also sold separately and can be retrofitted onto any existing Elkay or non-Elkay branded water cooler, fountain or bottle filling station with Elkay’s vandal-resistant retrofit filtration kit. Kits are available with and without a filter status monitor and alert.
Do your products contain lead?
No. Our drinking water products have been lead free for more than two decades. They are certified to NSF/ANSI 372 as lead free by the Water Quality Association.
How does Elkay test its filters?
Elkay tests and certifies our filters to NSF/ANSI Standard 53."NSF/ANSI Standard 53 for Drinking Water Treatment Units is the nationally recognized standard for evaluating and certifying drinking water treatment systems for the reduction of contaminants from drinking water. Water filters are tested and certified to NSF/ANSI 53 to ensure they reduce contaminants, including lead, per the requirements of the standard" (Certified Product Listing, NSF).
What type of maintenance and cleaning is required?
How can I tell if the bottle filling station is being used?
You can tell how much water is being consumed from data provided by the Green Ticker™ feature on the unit. The Green Ticker counts the number of 20 oz. single-use water bottles saved from waste by using reusable bottles and cups at the ezH2O®.
I’m getting an error message scrolling across my bottle counter area (Green Ticker™). How do I know what it means?
In your user manual, there is a table that explains each error code and what the cause of that particular error code is for repair purposes. You can find a copy of your user manual by searching your specific SKU on our website. Simply type the SKU into the search box in the upper right corner. When the page appears, click on the Downloads tab to access your user manual.
Where is the data tag located on the bottle filling station?
The serial data tag is located on the bottom of the cooler. Previously, there was a separate tag for the bottle filler and an additional one on the cooler. We have consolidated it into one tag on the underside of the cooler basin.
