Experience the Added Convenience of Liv
Elkay takes filtered water delivery to the next level with the Liv built-in filtered water dispenser, a stylish and functional solution for cleaner, safer drinking water. Designed to seamlessly integrate into any space, Liv filtered water dispensers are the perfect addition to kitchens, home gyms, playrooms and even commercial offices and lobbies.
Tested and Certified Filtration for Cleaner, Safer Drinking Water
Liv is more than a water dispenser; it’s a commitment to safety and sustainability. Equipped with the high-performing Elkay WaterSentry 71300C filter that meets NSF/ANSI standards, it effectively reduces PFOA/PFOS, microplastics, lead and other harmful contaminants, ensuring every drop is safe and refreshing. Whether for home or business, Elkay provides peace of mind with water you can trust.
Sleek Design
With its compact, built-in design, Liv effortlessly complements modern interiors. It’s not just about aesthetics — its user-friendly features make hydration simple and accessible. At the touch of a button, enjoy filtered water without the clutter of bottles or countertop systems.
With Liv you …
- Contribute to a cleaner world by eliminating single-use plastic water bottles that can end up in waterways
- Save time, money and storage space when you say goodbye to trips to the store for expensive cases of bottled water
- Rest easy, serving fresh filtered water

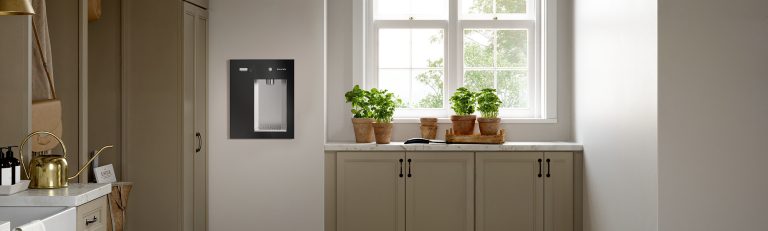

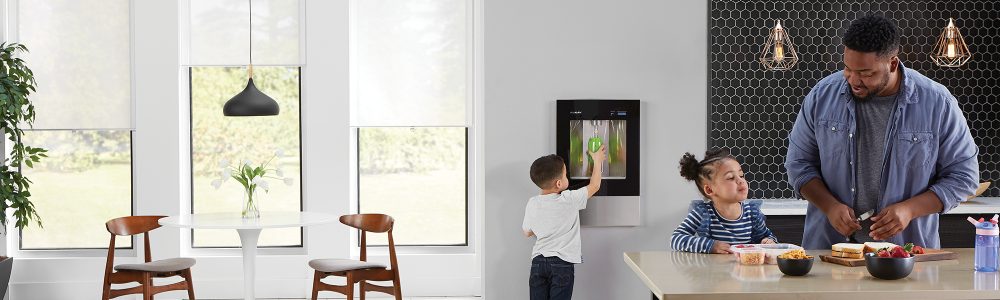

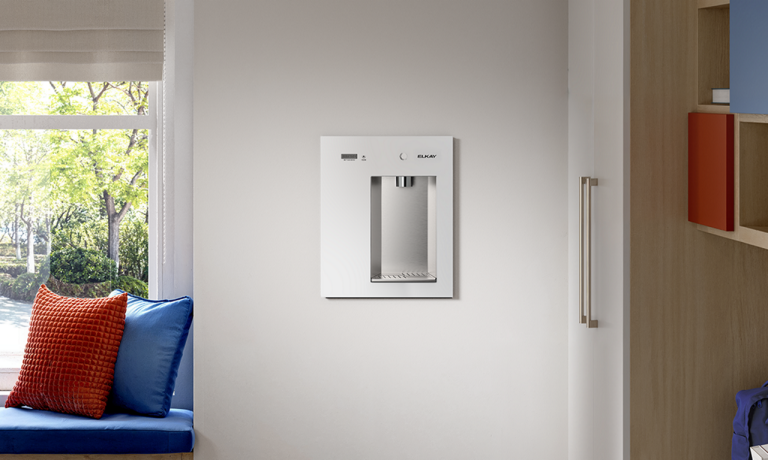

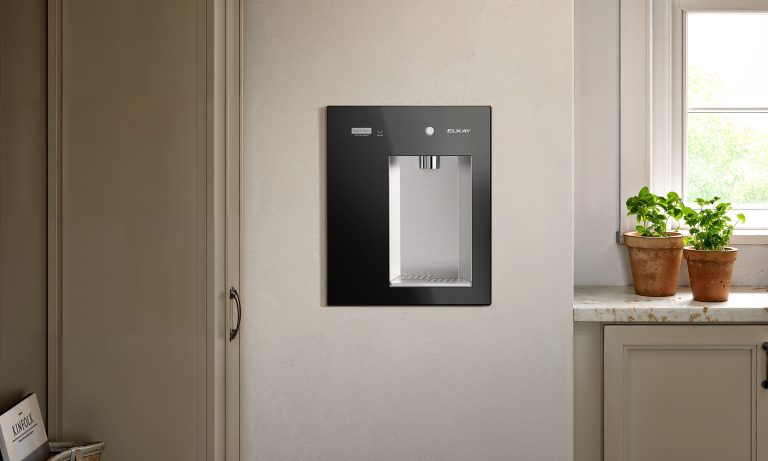

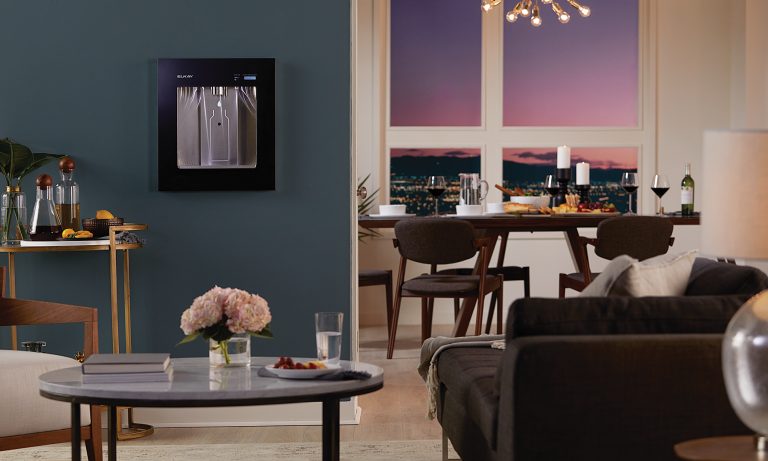

For Residential Spaces

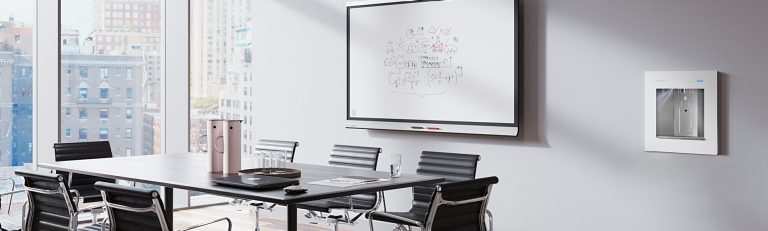

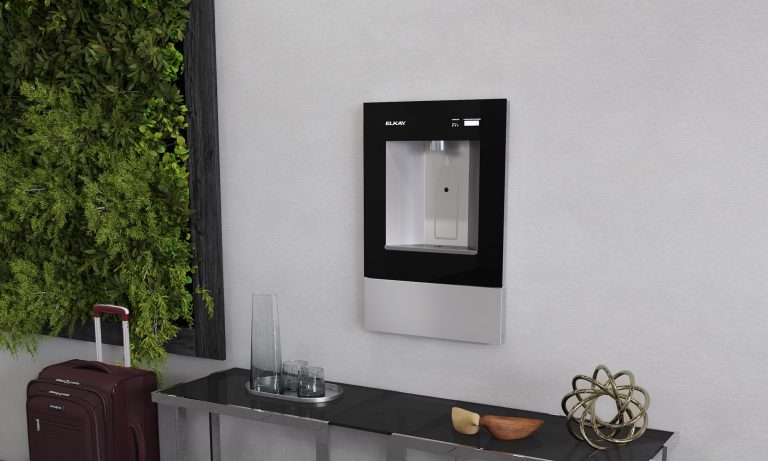

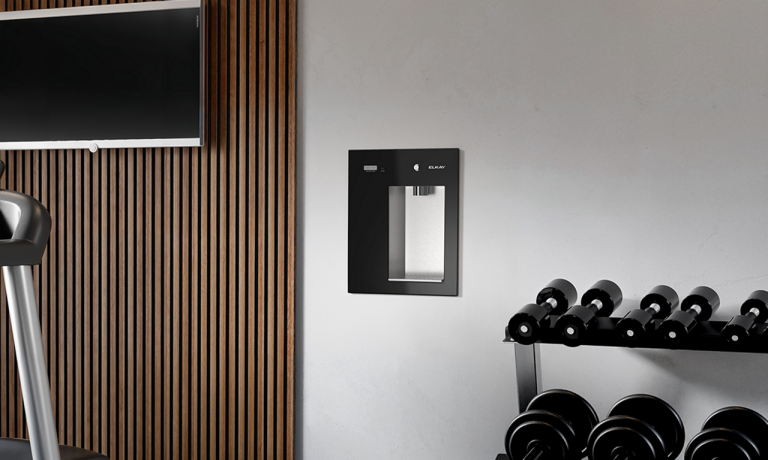

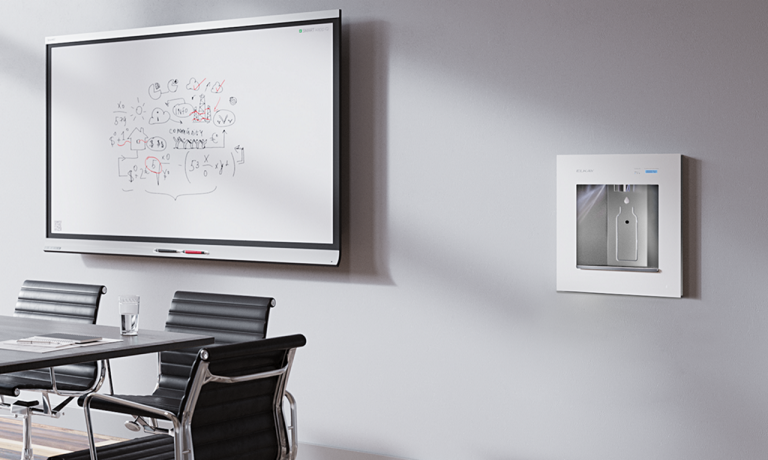

For Commercial Spaces
Browse Our Products

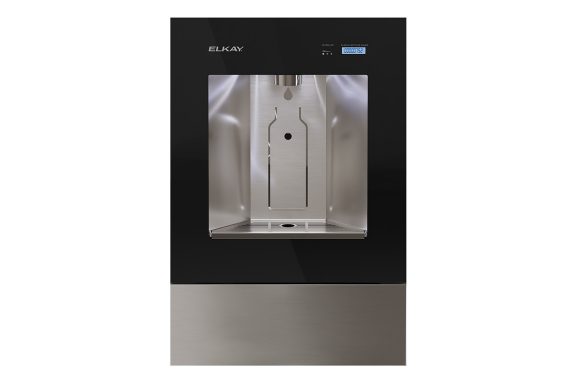

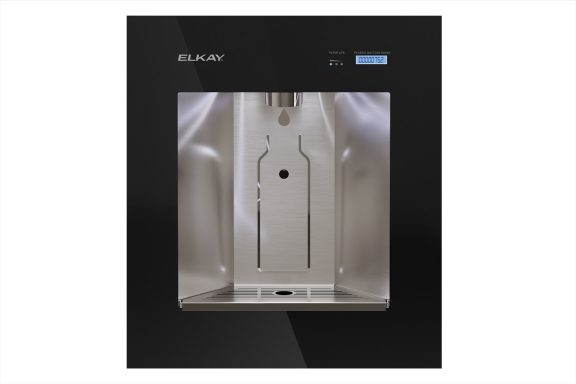

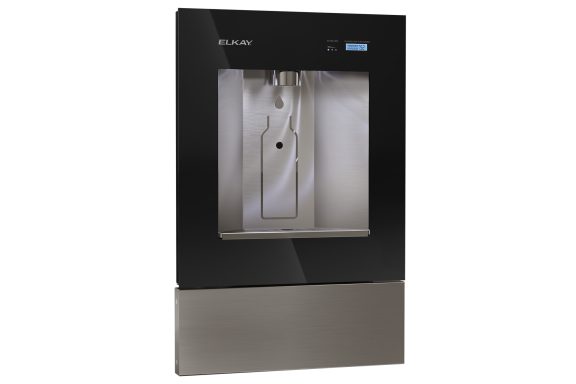

- LBWD06BKK

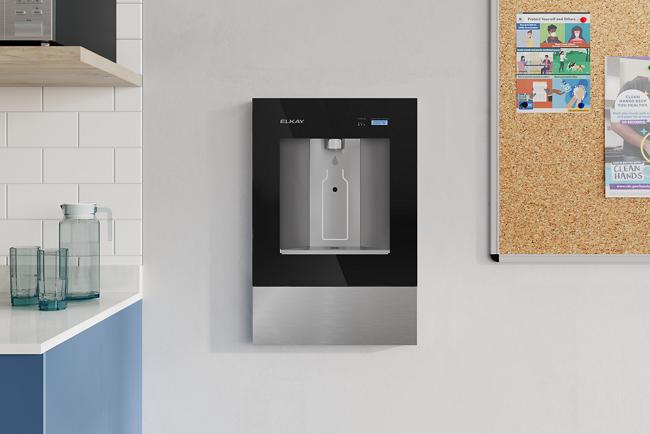

- LBWDC00BKC
- LBWD00BKC

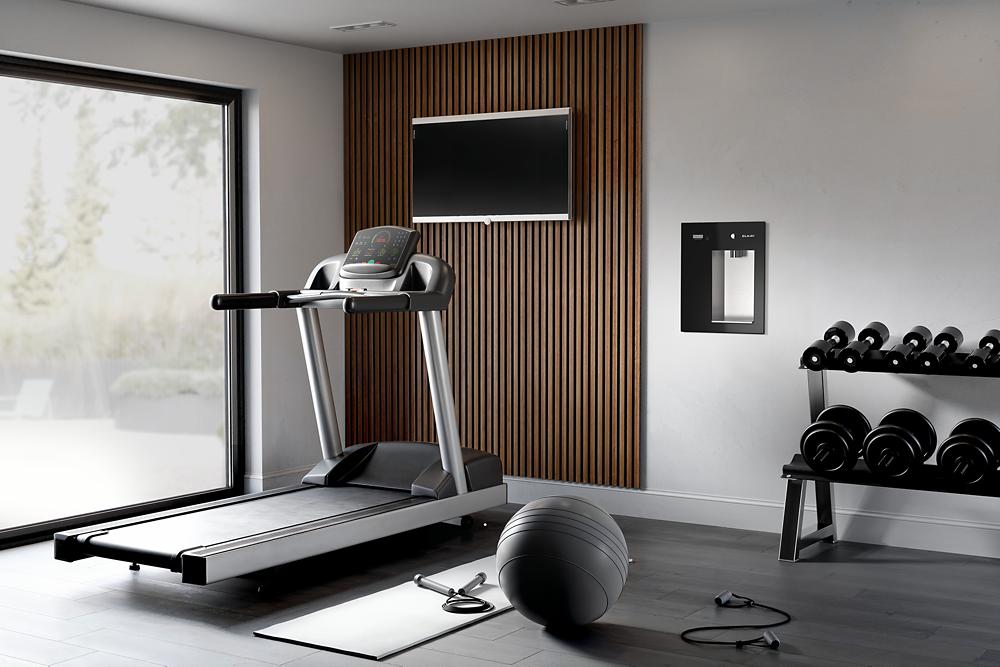

- LBWDM0BKBC

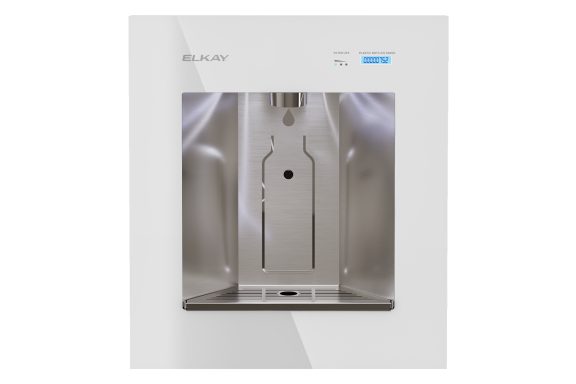

- LBWDM0WHBC

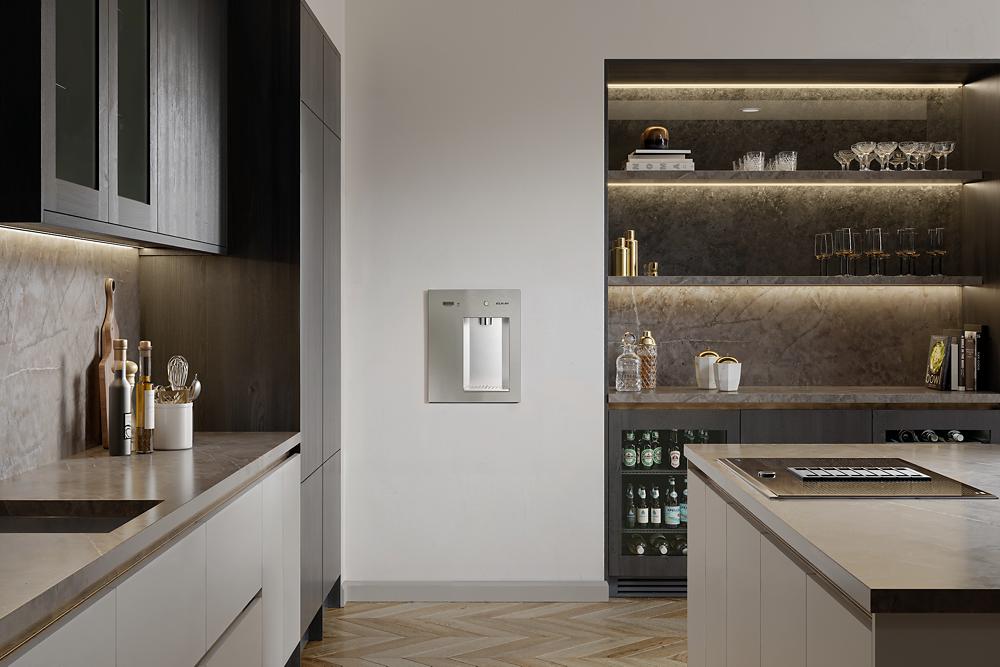

- LBWDM0SSBC

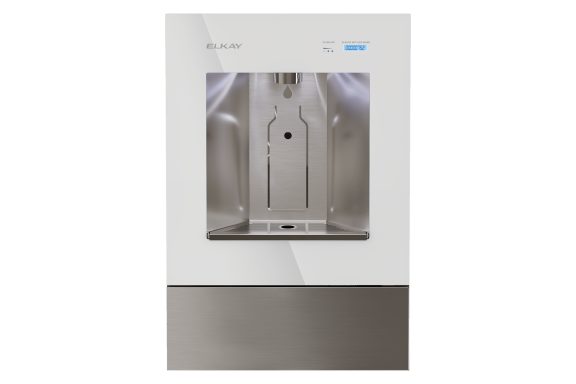

- LBWD06WHK
- LBWDC00WHC
- 71300C
- AP99
Thirsty for More Information?
- Liv

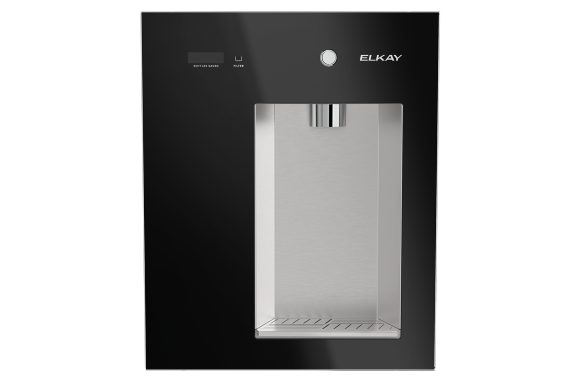

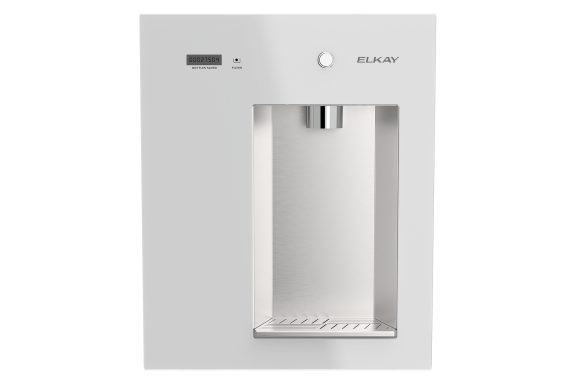

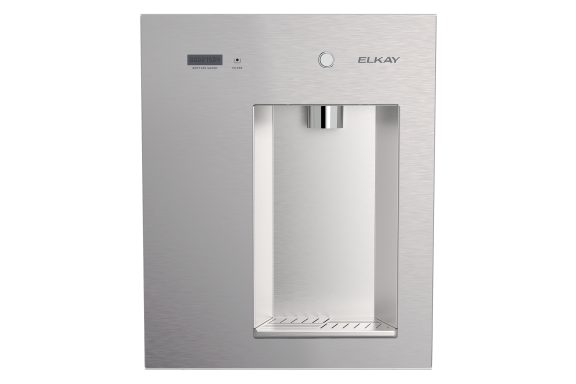

- Liv EZ
Frequently Asked Questions

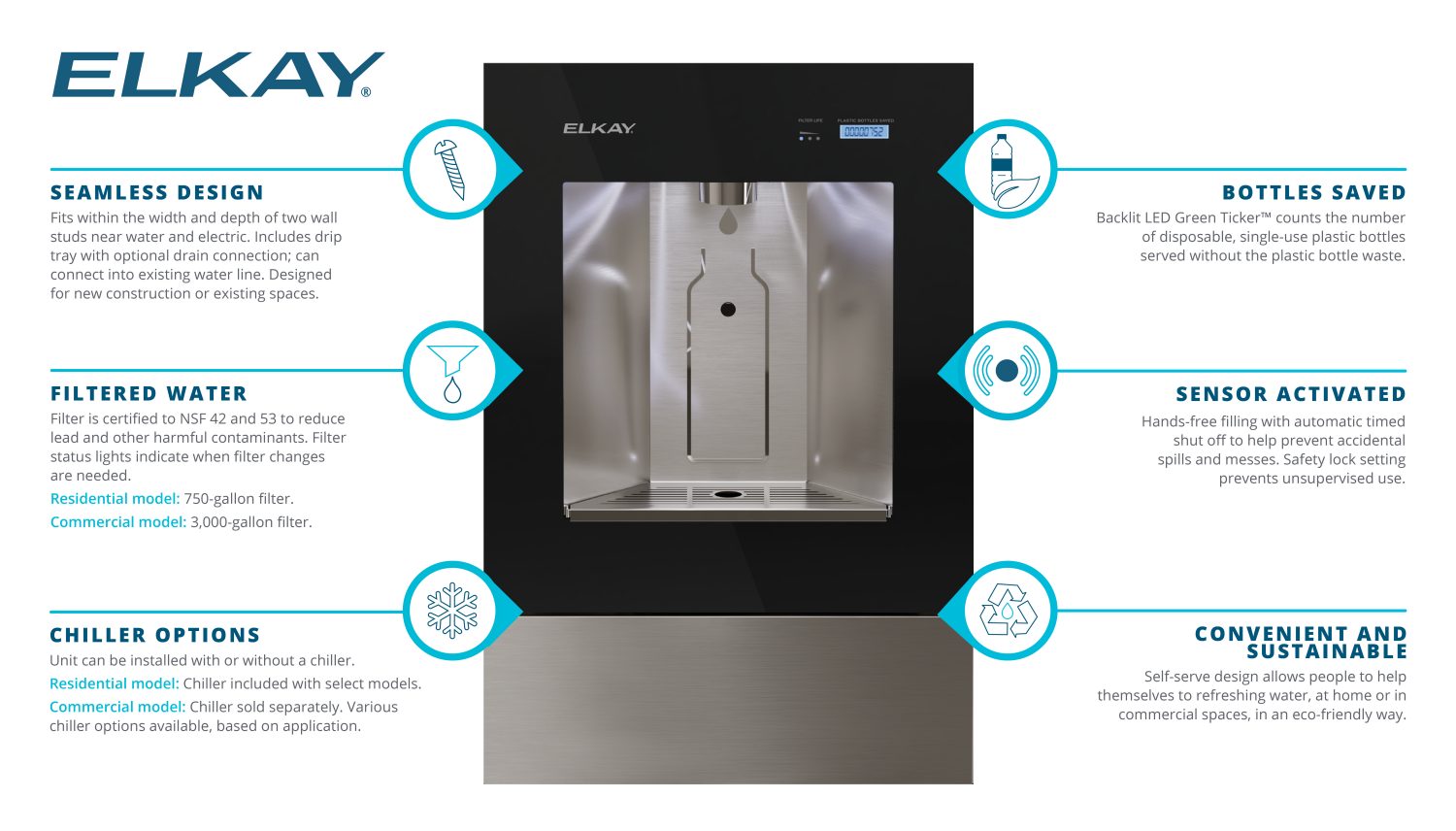

Seamless Design:
Install a stylish, eco-friendly filtered water dispenser in convenient areas of your home or business. In homes, install in mudrooms, recreation rooms, playrooms and even in a second-floor hallway. Ideal for commercial spaces such as lobbies, conference rooms and lunch rooms. Designed for new construction or remodels.
Fun and Convenient:
Self-serve design allows people to help themselves to refreshing water, at home or in commercial spaces in a sustainable way.
Fresh, Filtered Water:
Long-lasting filter is NSF certified to put cleaner, healthier water within reach by reducing PFOA/PFOS (two prevalent forever chemicals, microplastics, lead and other harmful contaminants. Filters with these reduction capabilities are not standard and are rarely found on refrigerators with water dispensers. Water purchased in plastic bottles is susceptible to chemical leaching over time, altering the taste.
Filter Status Lights:
Filter lights indicate when the filter needs to be changed, so users always know they are drinking filtered water. All models come with a 2,250-gallon filter that is rated for 1 year of use.
Chic Styling:
Sleek water dispenser is made of premium materials, such as chic, tempered glass and durable stainless steel that complement any décor.
Bottles Saved:
Backlit LED Green Ticker™ counts the number of 20 oz. disposable single-use plastic bottles served without the plastic bottle waste.
Integrated Design:
Liv and Liv Pro fit within the width and depth of two wall studs near water and electric. Includes drip tray with optional drain connection. Designed for new or existing construction. Professional installation is recommended.
Liv EZ requires no electricity or drain and only one incoming water line needed. Installation can be done yourself or with help from a plumber.
What types of built-in filtered water dispensers does Elkay offer?
Elkay offers three filtered water dispensers to meet your needs and preferences, options that include chilled water, ambient water, and different installation requirements. It’s designed to seamlessly fit any space and is a sleek, convenient addition to any room, from your entertaining space to the master suite, and from the lobby to the conference room.
What color options are there?
Liv and Liv Pro come in Aspen White and Midnight. Liz EZ comes in Aspen White, Midnight and Steel Gray.
Is there a warranty with this product?
There is a one-year residential or commercial warranty, depending on the unit purchased. Please see the Elkay Limited Product Warranty and Software License for more information.
Is the material used on the face of the unit scratch resistant?
The face of the unit is stainless steel and tempered glass, making it resistant to scratches.
What water temperature options are offered?
There are ambient models and remote chilled model. Hot water is currently unavailable on Liv.
Does this unit only fill water bottles?
Our filtered water dispensers are made for all the living you do – from filling drinking glasses and coffee makers, to watering cans for plants, pet bowls and personal humidifiers.
What type of drain is included?
If you choose to install a model that requires a drain, a fitting is included to attach to a 1-1/4″ waste trap. Professional installation is recommended. The unit can also be installed with a drip tray instead of a drain.
How often should I clean the unit? What products should I use?
For cleaning, we recommend a mild glass cleaner, mild dish soap and a microfiber cloth for the tempered glass. Please see Care and Cleaning guide.
What kind of filter is used in the Liv models? What does the filter remove from the water?

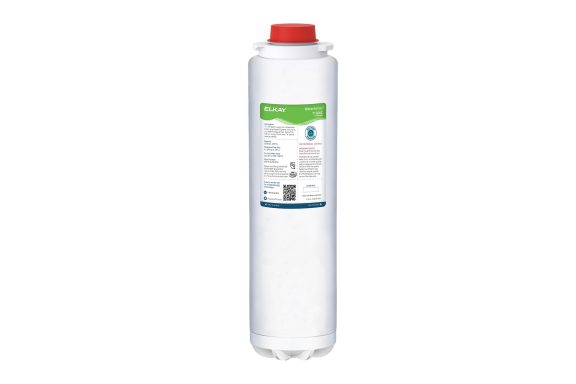

Our WaterSentry® 71300C filter is a carbon block filter with a polypropylene prefilter that is rated to NSF 42, 53 and 401 for PFOA/PFOS (PFAS), microplastics, lead, class 1 particulate, chlorine, taste and odor reduction. This filter is rated for 2,250-gallon – ideal for both residential and commercial spaces.
How long does a filter last?
We recommend replaying the filter every 2,250 gallons or one year after installation. Filter lights on your Liv unit will indicate when it’s time for a filter change.
What do the lights mean on the built-in filtered water dispenser? How do I know if the water is safe to drink?
The LED lights on the built-in filtered water dispenser indicate the filter status.
Left indicator light:
This light shows the filter is functioning correctly and has used less than 65% of its capacity.
Middle blue light:
This light shows the filter has reached 66% of its life and will need to be changed soon. When this indicator light comes on, a replacement filter should be ordered.
Right red light:
The filter has reached 100% of its usable life and should be replaced immediately. If the red light is blinking the filter is installed incorrectly. A steady blue light indicates the filter is installed properly.
You can order replacement filters here.
How will I know when it’s time for a filter change?
The filter status light turns red.
How do I access the filter?
Liv and Liv Pro: For ambient models, remove the panel on the front of the filter box. For chilled models, access the filter where the remote chiller was installed.
Liv EZ: Remove the glass panel by remove the screws. From there, filter will be easily accessible for quick replacement.
What tools are needed to change the filter and maintain this product?
You will need the following: cut-resistant gloves, safety glasses (ANSI z87.1 certified), hex driver, towel, permanent marker and a bucket.
How do I change the filter if I have a filter box?
- Begin by putting on cut-resistant gloves and safety glasses. Remove the four screws from the filter box cover using an Allen wrench.
- Shut off the water supply inside the filter box using the shut-off valve. Turn the water shut-off valve handle clockwise to the OFF position.
- Activate the water dispenser by placing the bucket in the alcove to relieve pressure in the water line.
- Shut off the power to the unit at the circuit breaker.
- Lift the water line. As you remove the filter, place a towel within the cavity to absorb the water. Twist the filter approximately a half turn counterclockwise until it is disengaged. Remove the filter and quickly hold it upright to prevent it from leaking.
- Drain the filter by placing it upside down in the bucket before disposing of it with your everyday trash.
- Remove and discard the protective cap from the new filter cartridge.
- Write the current date on the label of the new filter cartridge in the space provided.
- Attach the filter cartridge by firmly inserting it into the filter head and twisting it a quarter to a half turn clockwise until it is completely seated.
- Restore power to the unit at the circuit breaker.
- Check the filter status lights. A steady blue light indicates the filter is installed properly. A blinking red light indicates the filter is installed incorrectly. If the light is red, remove the filter and follow steps to reinstall.
- Slowly open the water supply valve.
- Place a bucket under the spout to activate the fill sensor and dispense at least one gallon of water. This amount of water will bleed any trapped air from the supply line and filter, as well as flush any fine carbon particles from the filter
- Check for leaks where the filter meets the filter head.
- Reinstall the filter box cover.
- Enjoy dispensing fresh, filtered water.
How do I change the filter if I have a remote filter?
- Begin by putting on cut-resistant gloves and safety glasses.
- Shut off the water supply using the shut-off valve at the filter. Turn the water shut-off handle clockwise to the OFF position.
- Twist the filter approximately a half turn counterclockwise until it is disengaged. Drain the filter by placing it upside down in the bucket before disposing of it with your everyday trash.
- Write the current date on the label of the new filter cartridge in the space provided.
- Remove and discard the protective cap from the new filter cartridge.
- Attach the filter cartridge by firmly inserting it into the filter head and twisting it a quarter to a half turn clockwise until it is completely seated.
- Restore power to the unit at the circuit breaker.
- Check the filter status lights. A steady blue light indicates the filter is installed properly. A blinking red light indicates the filter is installed incorrectly. If the light is red, remove the filter and follow steps to reinstall.
- Slowly open the water supply valve.
- Place a bucket under the spout to activate the fill sensor and dispense at least one gallon of water. This amount of water will bleed any trapped air from the supply line and filter, as well as flush any fine carbon particles from the filter.
- Enjoy dispensing fresh, filtered water.
Do I have to use Elkay filters?
Our filters are designed and manufactured to work with Elkay units and provide optimum performance. To purchase a 71300C filter, call 800-834-4816.
Where can Liv or Liv Pro filtered water dispensers be installed?
Elkay’s Liv is designed for indoor use only and should not be installed outdoors or in humid environments. This water dispenser should not be installed on exterior walls.
Who can install a built-in filtered water dispenser?
Professional installation is recommended. The installation of this product requires electrical and plumbing connections that use specific skills and knowledge. If you are unsure or not qualified to make these connections, please consult a qualified, licensed professional plumber, electrician, or installer for this installation.
How do I dispense cold water?
Both the Liv and the Liv Pro can be installed with or without a chiller.
Residential models: LIV model LBWD06, chiller included - 1.5 GPM; Liv model LBWD00, chiller sold separately. Various chiller options available, based application.
Commercial models: Chiller sold separately. Various chiller options available, based application.
If I want to add a chiller, which model do I choose?
Chiller selection is based on application. Please see our chillers collection page for available options.
How much water pressure is required?
Liv is designed to operate on 20 psi to 100 psi supply line pressure. A pressure above 105 psi will cause damage to the product.
What type of hookups do I need in my home to install this product?
We recommend a 3/8" cold water line with a pressure between 20-100 psi, 120-volt power on a dedicated hospital grade 15a GFCI breaker. If you are installing it with the drained option, you will also need a 1-1/4" waste trap.
Can this be installed into drywall?
Yes.
What other surfaces can this be installed on?
The unit is designed to fit between two studs with standard 16" on center spacing and with 1/2" wall board thickness. Thicker wall material may interfere with existing hookup holes in the unit.
Does the unit have to be installed into the wall? Is there a freestanding or on-wall option?
Yes, it must be installed or built into the wall. There is no freestanding option. For our complete offerings, visit elkay.com/premium-dispensers.
What is the ideal height for installation?
The recommended height of the top of the rough-in cut is 56-3/4" off the ground.
What is the in-wall depth?
Approximately 3.875".
How far will the unit stick out of the wall?
Approximately 1-3/4".
What is lead? Where does it come from?
For centuries, lead has been widely used in plumbing systems that transport water. Despite changes in plumbing codes making it illegal to use lead pipes or solder, lead is still found in older pipes, solder and brass fittings in existing plumbing systems. Lead is toxic and continuous exposure to lead can cause a variety of health problems, especially in infants and children. Please visit epa.gov/lead to learn more.
Do your products contain lead?
No. Our drinking water products have been lead free for more than two decades. They are certified to NSF/ANSI 372 as lead free by the Water Quality Association.
Do your filters reduce lead?
Select WaterSentry® filtration systems reduce lead to meet the requirements necessary to achieve our NSF/ANSI 53 certification, making the water cleaner and healthier.
How does Elkay test its filters?
Elkay tests and certifies our filters to NSF/ANSI Standard 53.
“NSF/ANSI Standard 53 for Drinking Water Treatment Units is the nationally recognized standard for evaluating and certifying drinking water treatment systems for the reduction of contaminants from drinking water. Water filters are tested and certified to NSF/ANSI 53 to ensure they reduce contaminants, including lead, per the requirements of the standard” (Certified Product Listing, NSF).
What type of maintenance and cleaning is required?
Please see the Liv Care and Cleaning video.
What does the bottle counter track?
You can tell how much water is being consumed from data provided by the Green Ticker™ feature on the unit. The Green Ticker counts the number of 20 oz. single-use water bottles saved from waste by using reusable bottles and cups at the Liv.
How many ounces of water will be dispensed at a time?
Approximately 16 oz. of water is dispensed at 60 psi water pressure. There is an automatic 20-second shut-off timer.
Does the unit illuminate when being used?
Yes.
Is the unit hands-free or is there a button for activation?
The unit has an IR sensor, it is not recommended that vessels be used with the unit without the use of at least one hand.
Where is the data tag located on the Liv filtered water dispenser?
The serial data tag is located on the inside right wall of the main enclosure, just above the junction box. Use this serial number when contacting Elkay with questions concerning the installation of this product.
Is Liv compatible with reverse osmosis water?
The only component that is not compatible with RO water is the copper inlet tube going to the filter. In a chilled unit, simply remove the copper inlet tube and replace with the 3/8 water supply being used from the RO device (plastic or stainless steel). The chiller (ERS11Y) has all stainless steel waterways and is perfect for use with RO systems.
For ambient units, we recommend remote mounting of our filter like the install for a chilled unit. Alternatively, the copper L-shaped inlet tube could be removed from the filter in the filter box and replaced with a suitable stainless steel bent tube or elbow.
The unit will not function properly unless an Elkay filter is used. Regardless of installation method, the RO water will need to also run through the Elkay filter.
