DSE233223DFBG

Discontinued

Replaced By: DSE233223 Contact Us
Material Stainless Steel
Installation Type Drop-in
Sink Kits
Gauge 20
Sound Deadening Bottom only pads
Number of Bowls 2
Minimum Cabinet Size 36"

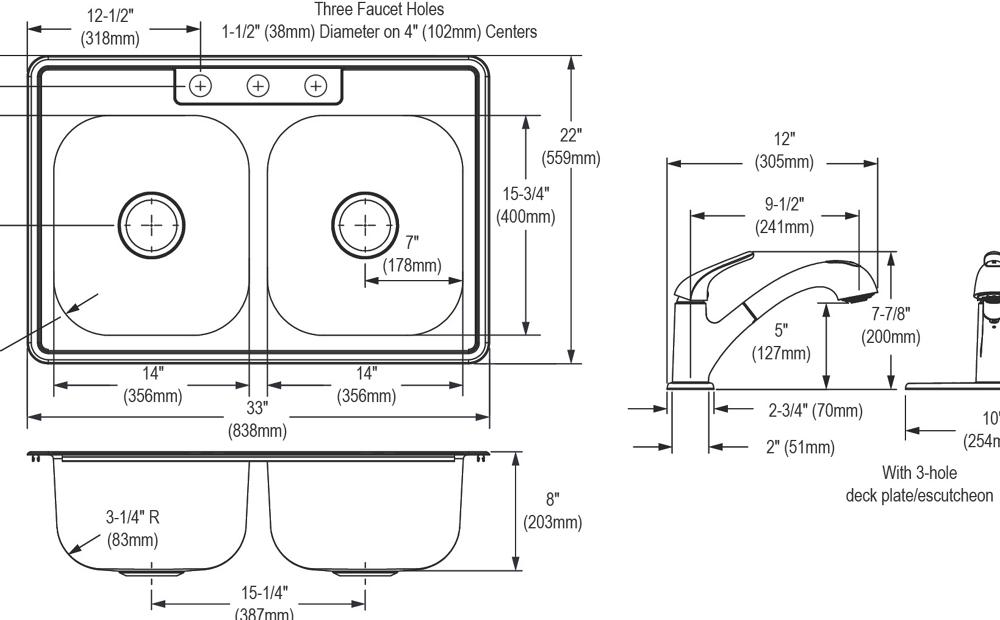

Dimensions L: 33"
W: 22"
H: 8-1/16"
Bowl 1 Dimensions L: 14"
W: 15-3/4"
H: 7-7/8"
Bowl 2 Dimensions L: 14"
W: 15-3/4"
H: 7-7/8"
Hole Drillings 3
Drain Size Bowl 1 3-1/2"
Drain Size Bowl 2 3-1/2"
Shipping Dimensions L: 23-7/16"
W: 12-3/16"
H: 39-5/8"
Shipping Weight 31 LBS
Included With Product LK5000CR faucet
one GBG1415SS bottom grid
two drains
ADA No
Code Compliance ASME A112.19.3
ASME A112.18.1
ASME A112.18.2
CSA B45.4
CSA B125.1
CSA B125.2
cUPC
NSF 61
NSF 372
CEC Listed
IPC

Dayton® Stainless Steel 33" x 22" x 8-1/16" 3-Hole Equal Double Bowl Drop-in Sink and Faucet Kit

  • DROP-IN INSTALLATION: Sink is installed above the countertop, an ideal choice if you are not replacing the counter
  • DOUBLE BOWLS OF EQUAL SIZE: Conveniently use bowls independently for washing, soaking, rinsing, drying and other household tasks
  • 20-GAUGE STAINLESS STEEL: Commercial grade 20-gauge thickness and 300 Series stainless steel for everyday use
  • QUIET: Sound-deadening pad(s) minimizes sound and vibration for a quieter time at the sink
  • U-CHANNEL INSTALLATION: Mounting clips placed inside the channel before installation means less time under the sink for an easier install
  • CENTER DRAIN: Drain is conveniently placed in the center of the sink
  • DRAIN OPENING: Sink drain opening measures 3-1/2"
  • CABINET SIZE: Minimum cabinet size for this sink is 36"
  • KIT INCLUDES: DSE233223 sink, LK5000CR faucet, LGBG1415SS bottom grid, two drains; conveniently packaged together to save you time
