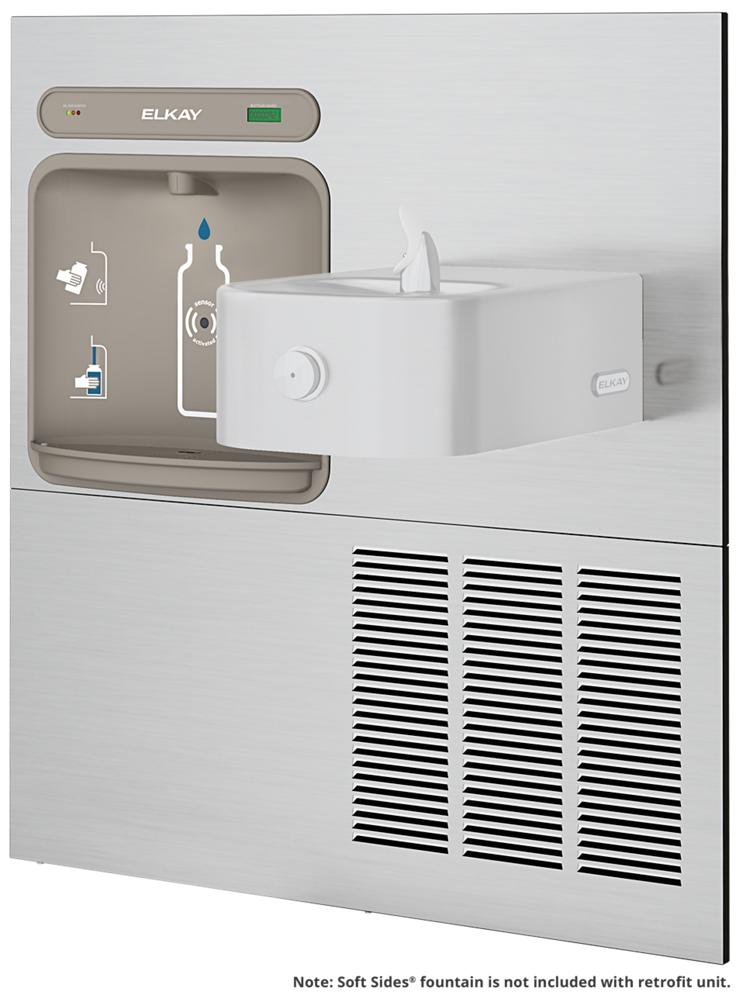

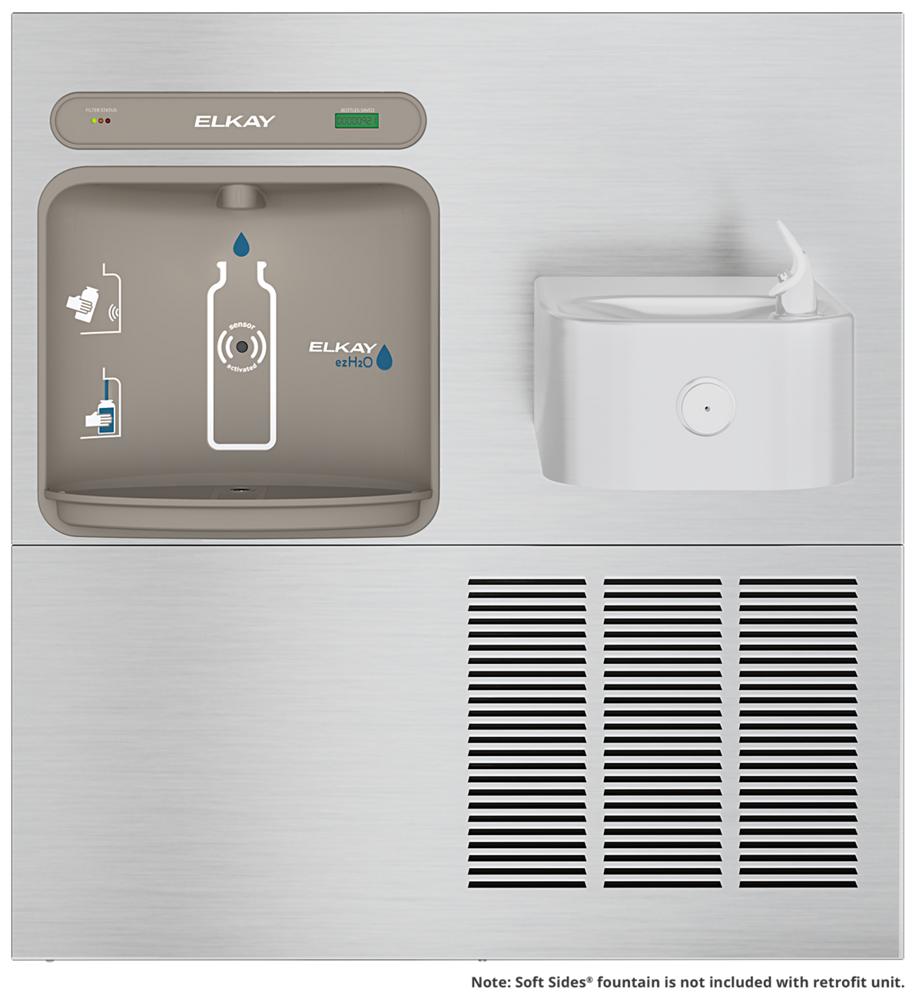

LZWS-ERFP8-RF

ezH2O® Retrofit Bottle Filling Station for Soft Sides® Fountain Filtered Refrigerated Stainless

$3,744.00 (USD)

Actual selling price may vary
The Elkay EZH2O® Bottle Filling Station delivers a clean quick water bottle fill and enhances sustainability by minimizing our dependency on disposable plastic bottles. Designed to retrofit existing bi-level refrigerated Soft Sides fountains. Bottle Filler features sanitary no-touch sensor activation with automatic 20-second shut-off timer.
Read More
Spec + Install + BIM Where to Buy
  • Touchless, sensor activation (bottle filler) designed to retrofit with an existing refrigerated push-button fountain
  • Hermetically sealed refrigeration system provides chilled water to satisfy thirst
  • Fill rate is 1.1 GPM. Laminar flow provides clean fill with minimal splash. Real drain system eliminates standing water
  • Visual filter monitor with LED filter status indicator for when filter change is necessary
  • The 3,000-gallon filter is certified to NSF 42 and 53 for lead, Class 1 particulate, chlorine, taste and odor reduction
  • Key plastic components are manufactured with silver ion antimicrobial agent helping to provide clean, stain- and odor-free surfaces
  • Silver ion antimicrobial protection on key plastic components to inhibit the growth of mold and mildew
  • Ships with new top panel, frame and integral ezH2O® station
  • Touchless, sensor-activated bottle filler designed to retrofit with an existing refrigerated push-button fountain
  • Bottle filler meets ADA guidelines for reach range; fountain meets ADA guidelines for wheelchair access
...more

Specifications

Material Stainless Steel
Number of Stations 2
Features Antimicrobial
Filtered
Green Ticker™
Hands Free
Laminar Flow
Real Drain
Visual Filter Monitor
Power 115V/60Hz
Dimensions L: 38-1/2IN
W: 19-1/4IN
H: 40-13/16IN
Bubbler Style Flexi-Guard ® Safety Bubbler
Mounting Type Wall Mount (In-Wall Frame/Plate)
Chilling Capacity 8.0 GPH
Installation Location Indoor
Shipping Dimensions L: 46-1/4IN
W: 15-3/4IN
H: 28IN
Shipping Weight 50LB
Included With Product Integral Bottle Filling Station
Filter
Panels
Mounting Frame
ADA Yes
Filtered Yes
Code Compliance CSA C22.2 No. 120
NSF 42
NSF 53
NSF 401
UL 399
NSF 61
NSF 372
Note Utilizes existing single fountain, right mounting frame and water chiller.
