MPW200

In-wall Mounting Plate for Bi-level On-wall Non-refrigerated Fountains

$771.00 (USD)

Actual selling price may vary
Where to Buy Contact Us
Material Galvanized Steel
Power No Electrical Required

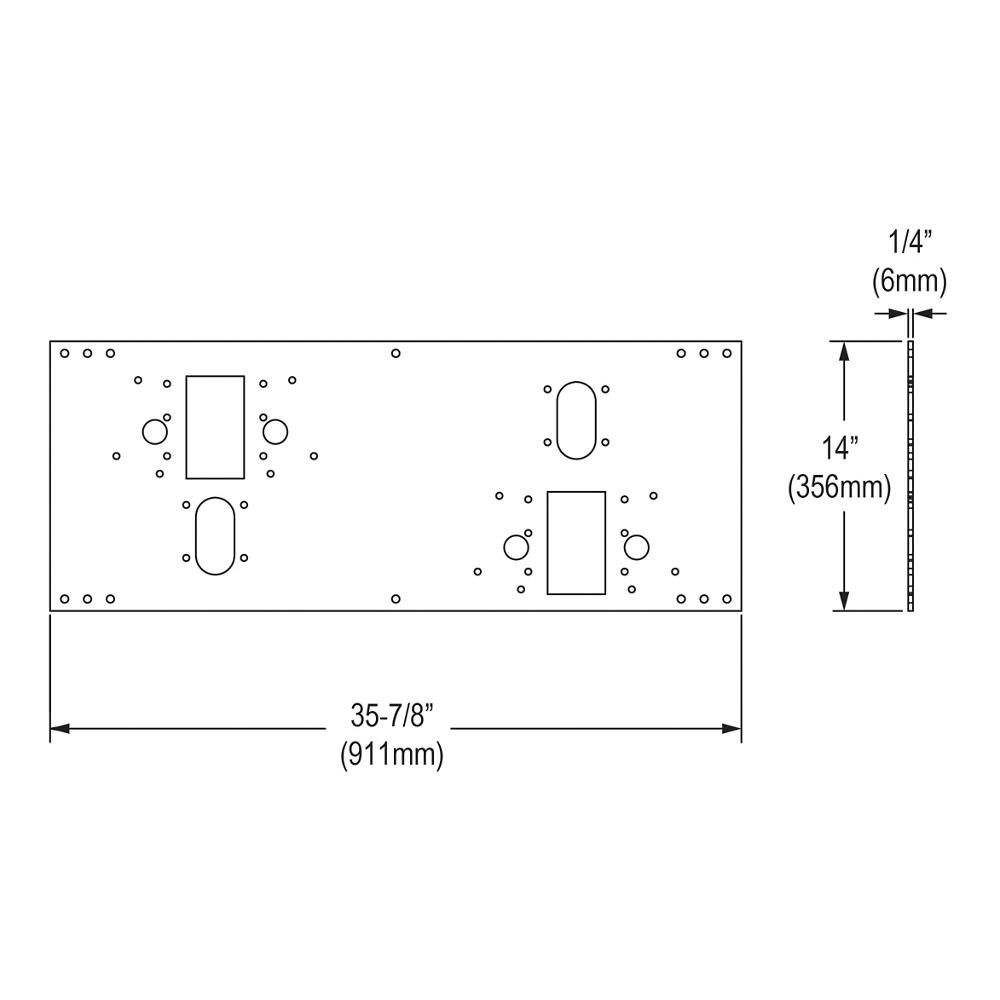

Dimensions L: 35-7/8"
W: 1/4"
H: 14"
Shipping Dimensions L: 40-1/2"
W: 16-1/2"
H: 1-3/4"
Shipping Weight 40 LBS
Included With Product Mounting Plate
Note For use with bi-level on-wall non-refrigerated fountains.

We carry a range of mounting frames, plates and other installation support systems to properly position and enhance our refrigerated and non-refrigerated bottle filling stations, water coolers, drinking fountains and chillers of all configurations.

  • Universal design provides extra support when mounting in-wall bi-level models

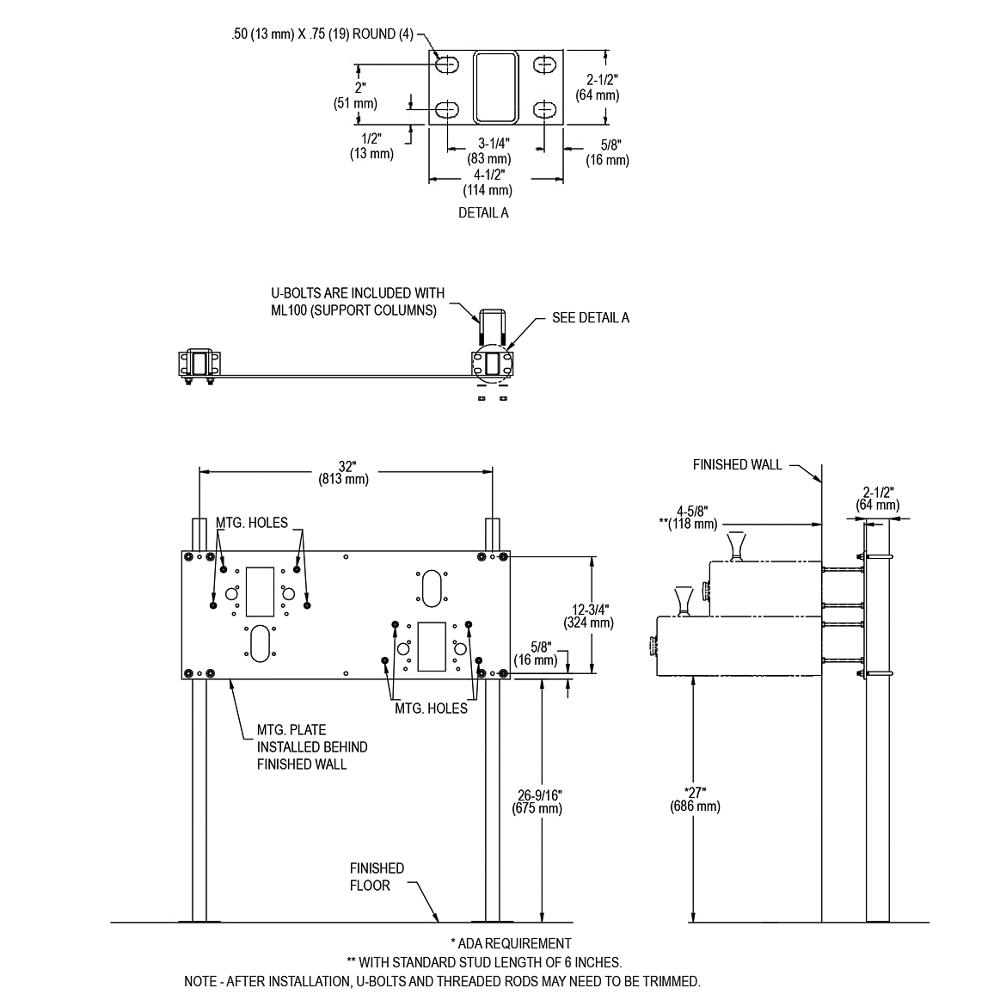

  • Plate can be installed directly to studs or in conjunction with ML100 mounting legs (optional accessory sold separately)
  • Constructed of heavy-gauge steel supporting up to 500 lbs
  • Secures directly to a variety of load-bearing surfaces
  • Adjustable height setting allows for adult or child ADA installation
  • Built in the USA
