MLP200

In-wall Carrier for Bi-level On-wall Bottle Fillers Coolers & Fountains

$1,883.00 (USD)

Actual selling price may vary
We carry a range of mounting frames, plates and other installation support systems to properly position and enhance our refrigerated and non-refrigerated bottle filling stations, water coolers, drinking fountains and chillers of all configurations.
Read More
Spec + Install + BIM Where to Buy
  • Universal design provides extra support when mounting on-wall bi-level models

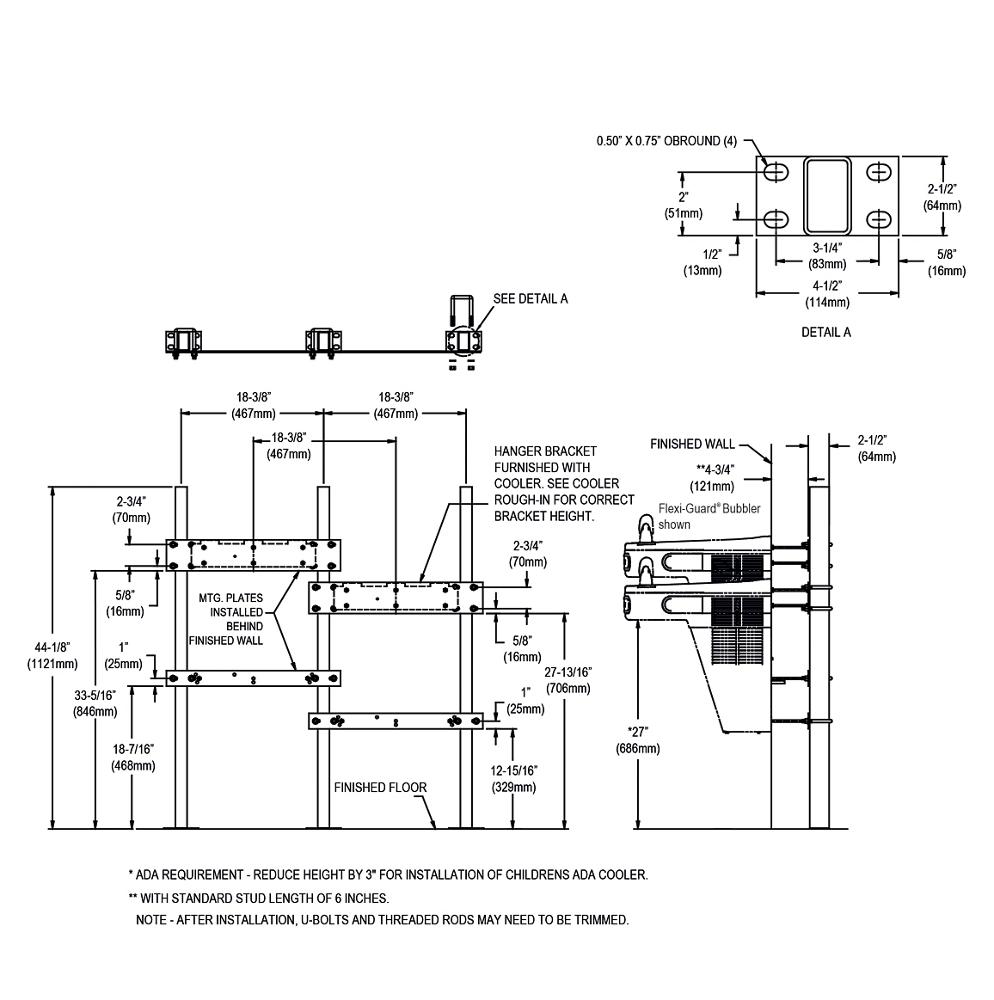

  • System can be installed in as little as a 2" x 4" wall
  • Constructed of heavy-gauge steel supporting up to 500 lbs
  • Secures directly to a variety of load-bearing surfaces
  • Adjustable height setting allows for adult or child ADA installation
  • Built in the USA
...more

Specifications

Material Galvanized Steel
Power No Electrical Required

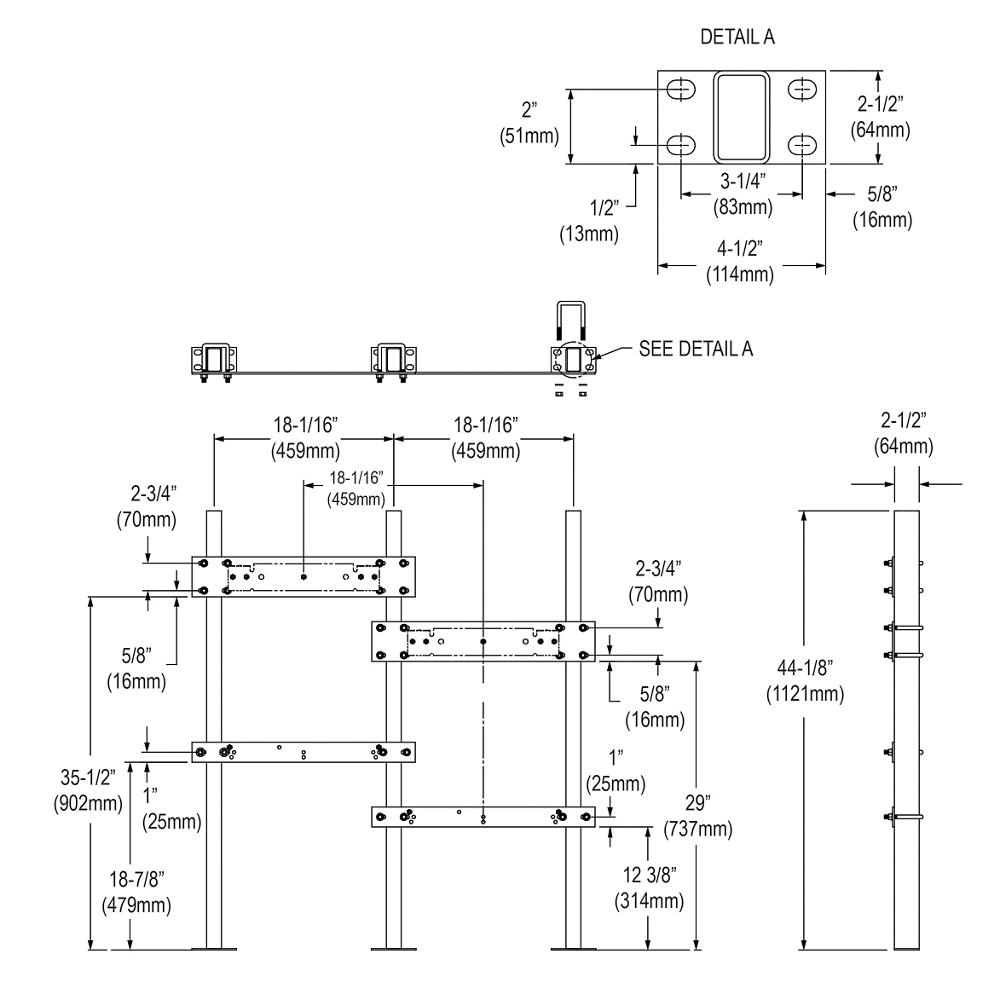

Dimensions L: 38-1/2IN
W: 2-11/16IN
H: 44-1/8IN
Shipping Dimensions L: 58IN
W: 9IN
H: 5IN
Shipping Weight 54LB
Included With Product Mounting Carrier Assembly

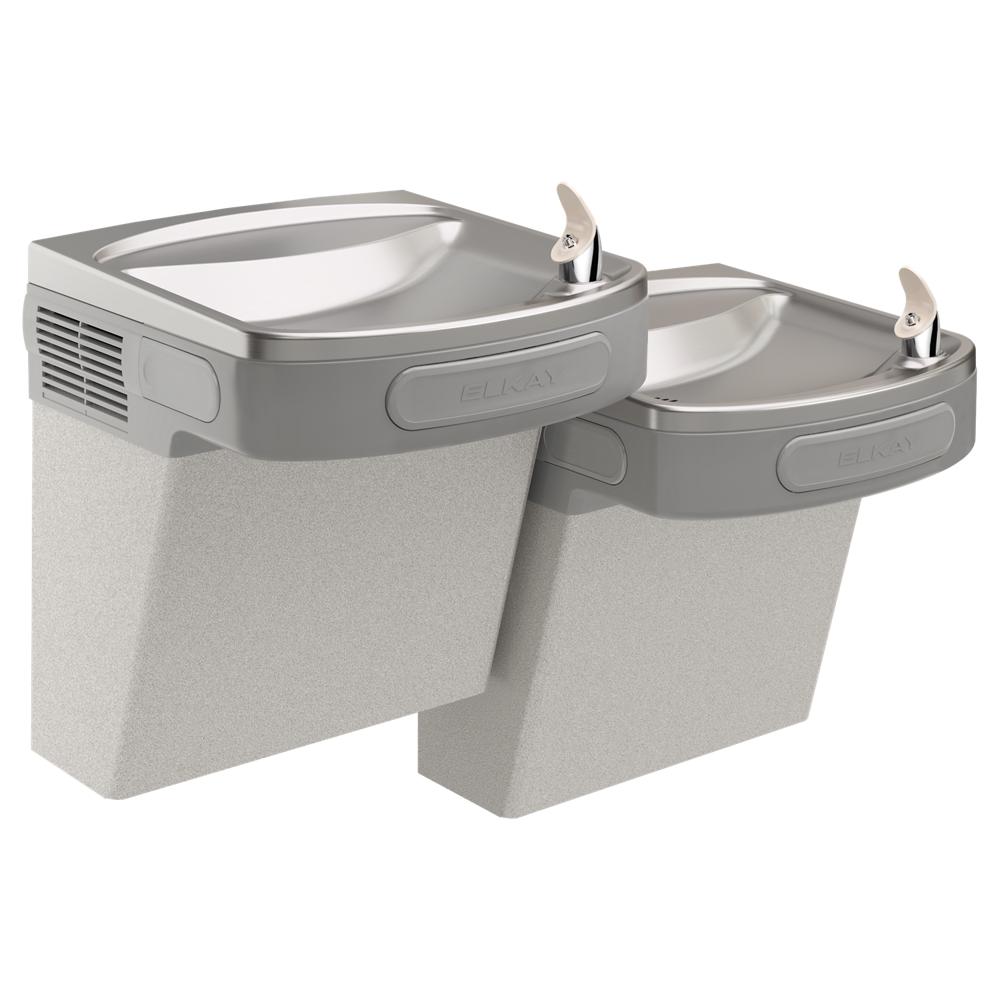

Note For use with bi-level on-wall bottle fillers, coolers & fountains.

Resources

PROP 65 WARNING

How-To Videos

Specifications

Material Galvanized Steel
Power No Electrical Required
Dimensions L: 38-1/2IN
W: 2-11/16IN
H: 44-1/8IN
Shipping Dimensions L: 58IN
W: 9IN
H: 5IN
Shipping Weight 54LB
Included With Product Mounting Carrier Assembly
Note For use with bi-level on-wall bottle fillers, coolers & fountains.
