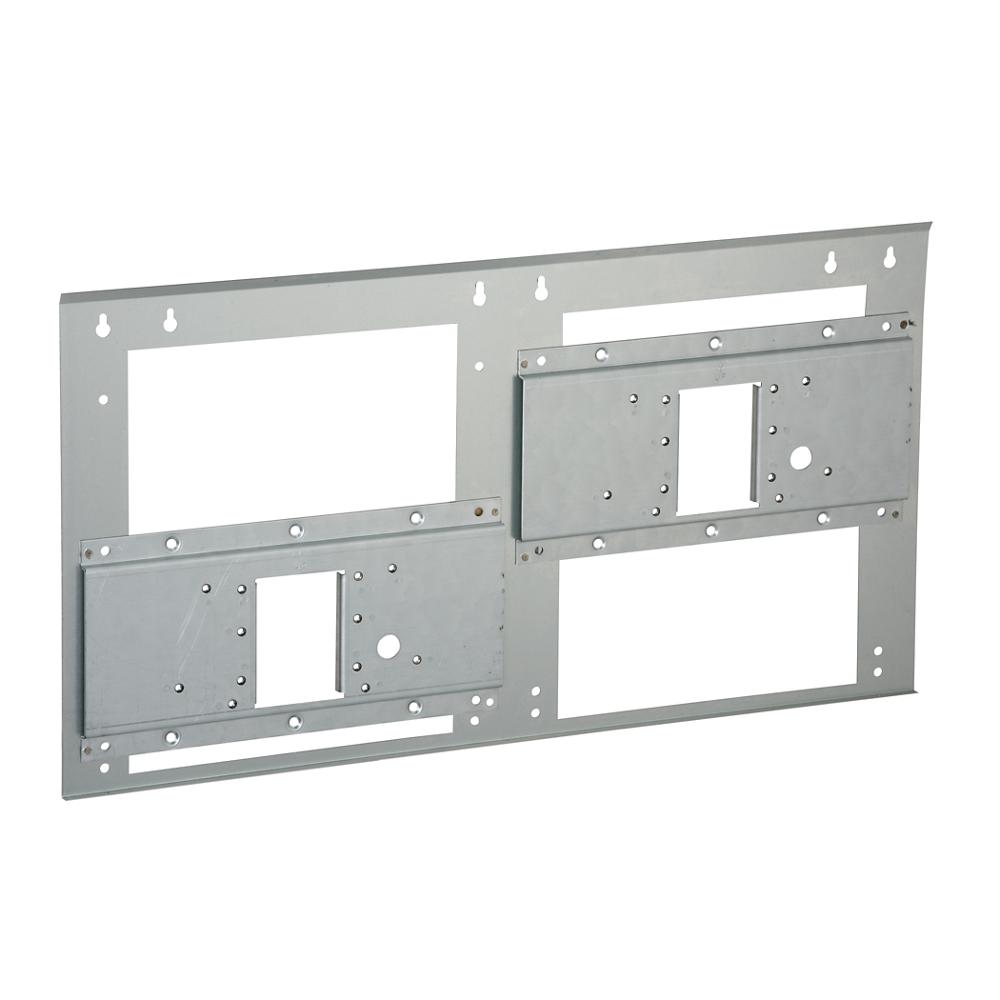

MP20RA

Surface Mounting Plate for Reversed Bi-level On-wall Non-refrigerated Fountains

$441.00 (USD)

Actual selling price may vary
Where to Buy Contact Us
Material Galvanized Steel
Number of Stations 2
Type Mounting Options

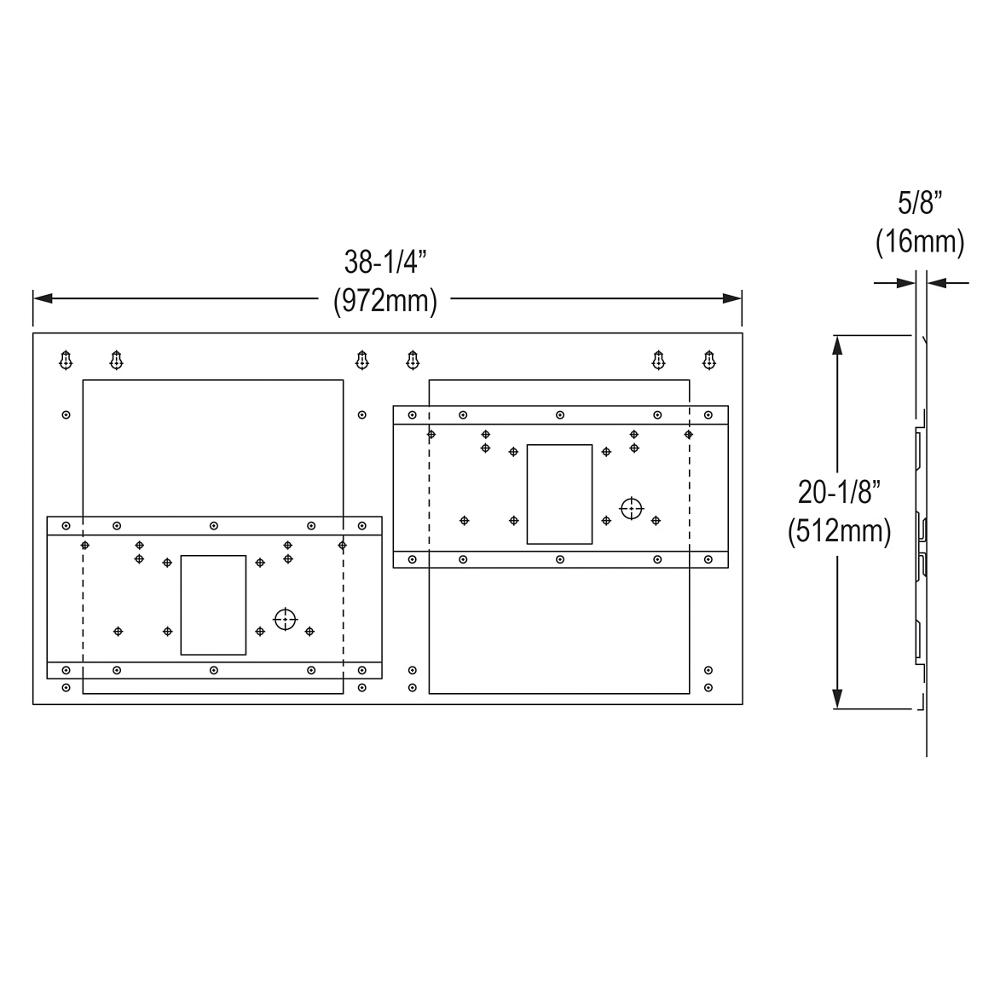

Dimensions L: 38-1/4"
W: 5/8"
H: 20-1/8"
Bubbler Style N/A
Mounting Option Wall Mount (Inwall Frame/Plate)
Installation Location Indoor
Application Type Hospitality
Shipping Dimensions L: 42-3/4"
W: 3"
H: 24-1/2"
Shipping Weight 18 LBS
Included with Product Mounting Frame Assembly
Country Of Origin USA
ADA No
Note Mounting frame included with Elkay EDFPB(V)M117FPRAK and EDFPB(V)M117RAK non-refrigerated models.

We carry a range of mounting frames, plates and other installation support systems to properly position and enhance our refrigerated and non-refrigerated bottle filling stations, water coolers, drinking fountains and chillers of all configurations.

  • Reversed two-station surface mounting plate provides additional support for on-wall drinking water model installations.
  • Compatible with specific Elkay® non-refrigerated models; see specifications tab for details
  • Mounting frame included with specific SwirlFlo® models
  • Secures directly to a variety of load-bearing surfaces.
  • Refer to end product for ADA compliance information.
  • Built in the USA.
