MF100

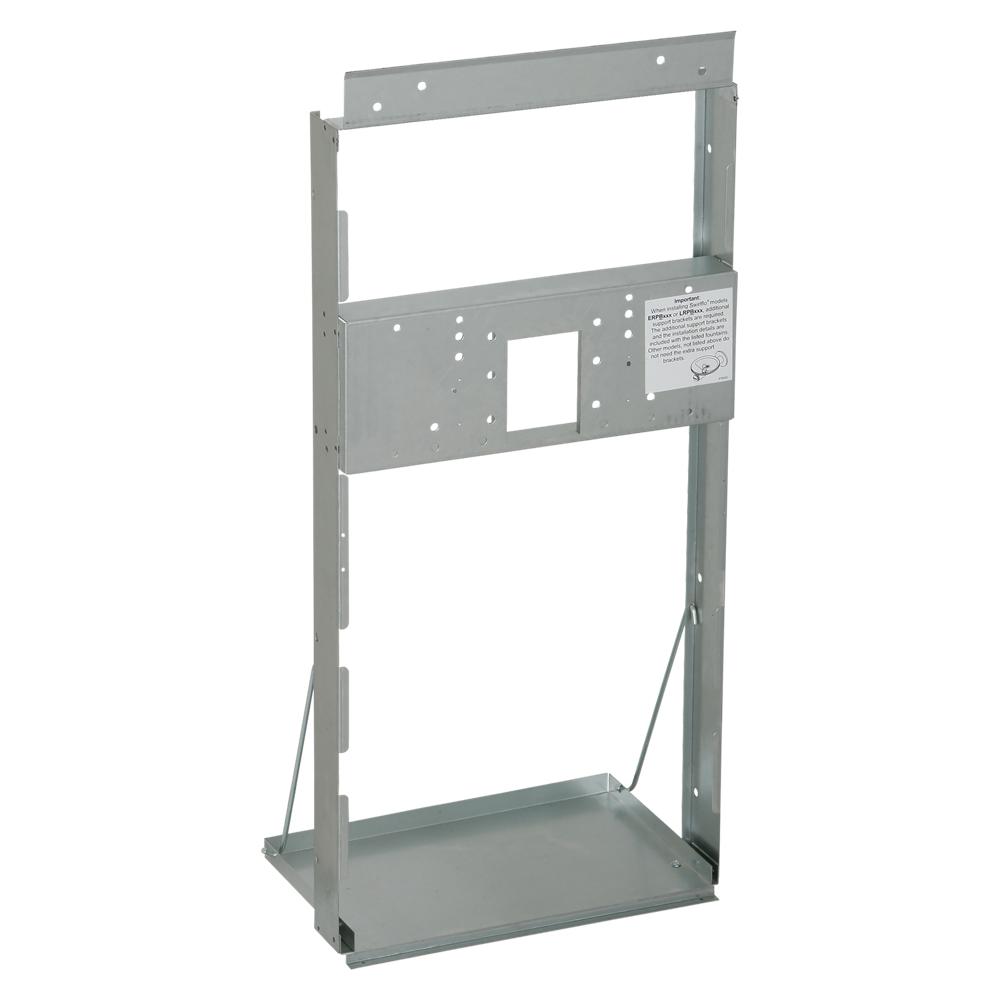

Mounting Frame for Single-station In-wall Refrigerated Coolers

$315.00 (USD)

Actual selling price may vary
Where to Buy Contact Us
Material Galvanized Steel
Number of Stations 1
Type Mounting Options

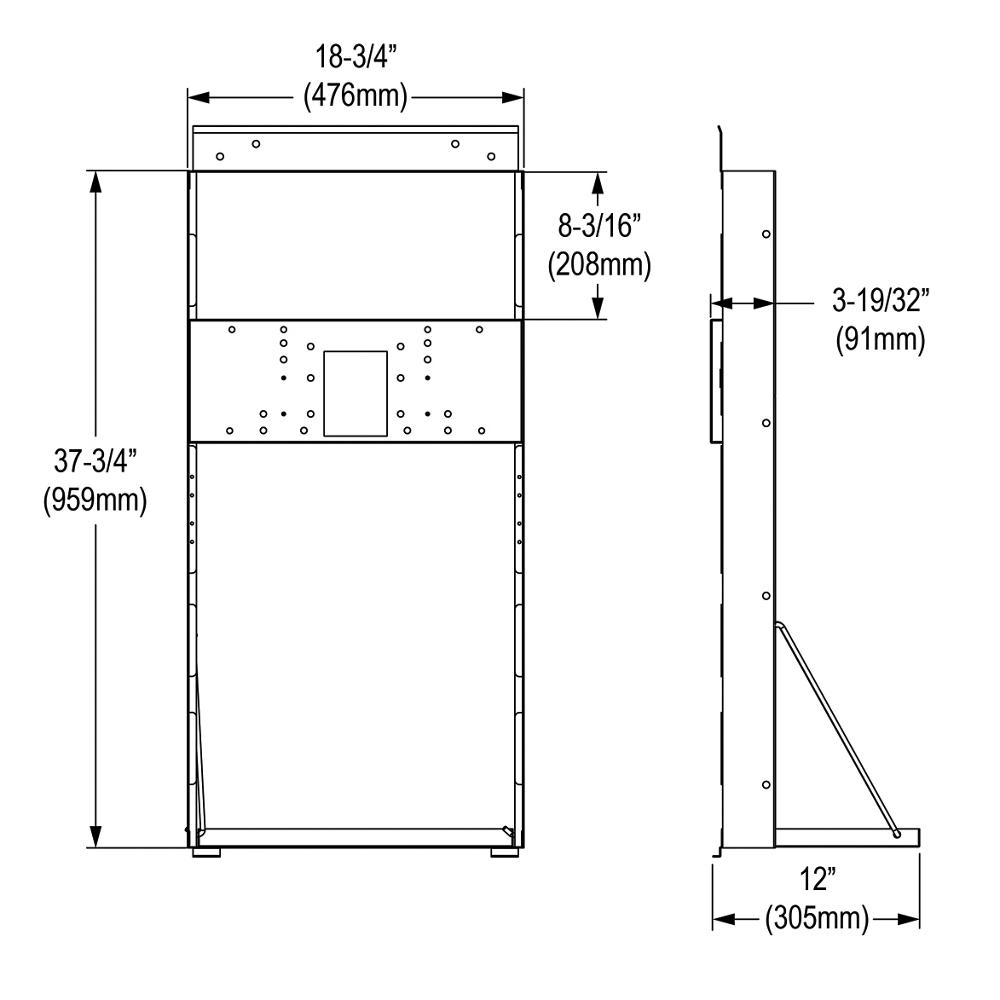

Dimensions L: 18-3/4"
W: 12"
H: 37-3/4"
Bubbler Style N/A
Mounting Option Wall Mount (Inwall Frame/Plate)
Installation Location Indoor
Application Type Hospitality
Shipping Dimensions L: 19"
W: 4"
H: 46"
Shipping Weight 18 LBS
Included with Product Mounting Frame Assembly
Country Of Origin USA
ADA No
Note For use with Elkay ENOB, ERFP, ERO, ERPB, LNTE, LRPB refrigerated single station models.

We carry a range of mounting frames, plates and other installation support systems to properly position and enhance our refrigerated and non-refrigerated bottle filling stations, water coolers, drinking fountains and chillers of all configurations.

  • Single-station mounting frame enables installation of in-wall drinking water models.
  • Compatible with various Elkay® refrigerated models; see specifications tab for details
  • Mounting frame included with specific SwirlFlo® and Soft Sides® models
  • Secures directly to a variety of load-bearing surfaces.
  • Refer to end product for ADA compliance information.
  • Built in the USA.
