| Material |
Chrome-plated Brass |
|---|---|
| Spray Type |
None |
| Installation Type |
Wall Mount |
| Features |
Hands Free Sensor Activated Solid Brass Construction |

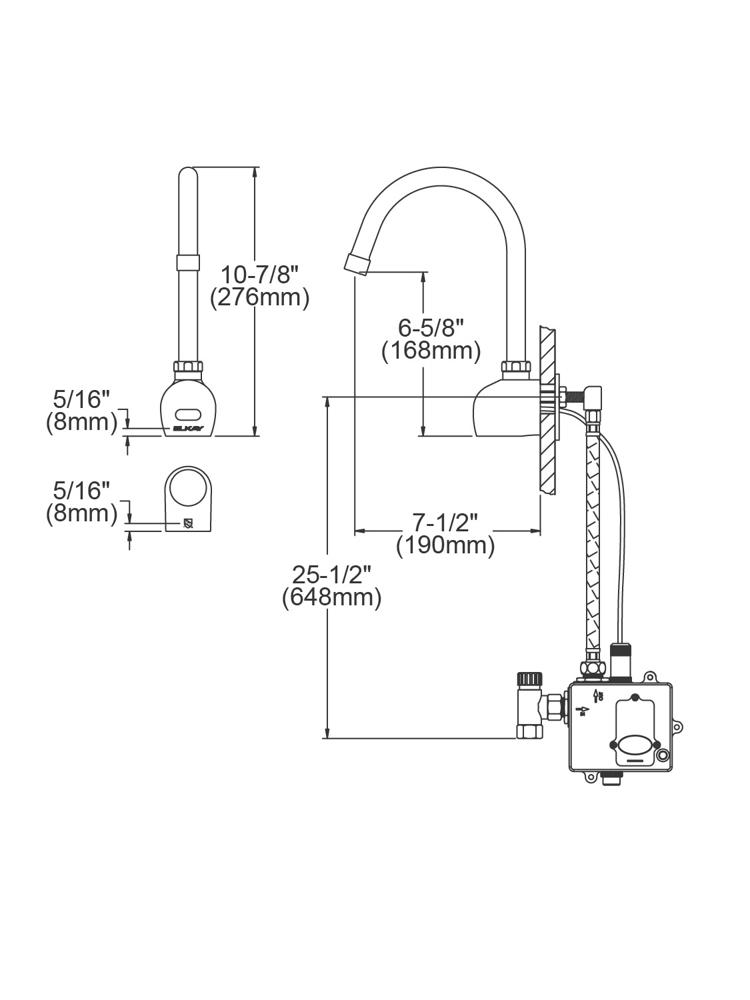

| Dimensions |
L: 7-15/16" W: 2-1/4" H: 10-7/8" |
| Handle Quantity |
0 |
| Handle Type |
Sensor Operated (Hands Free) |

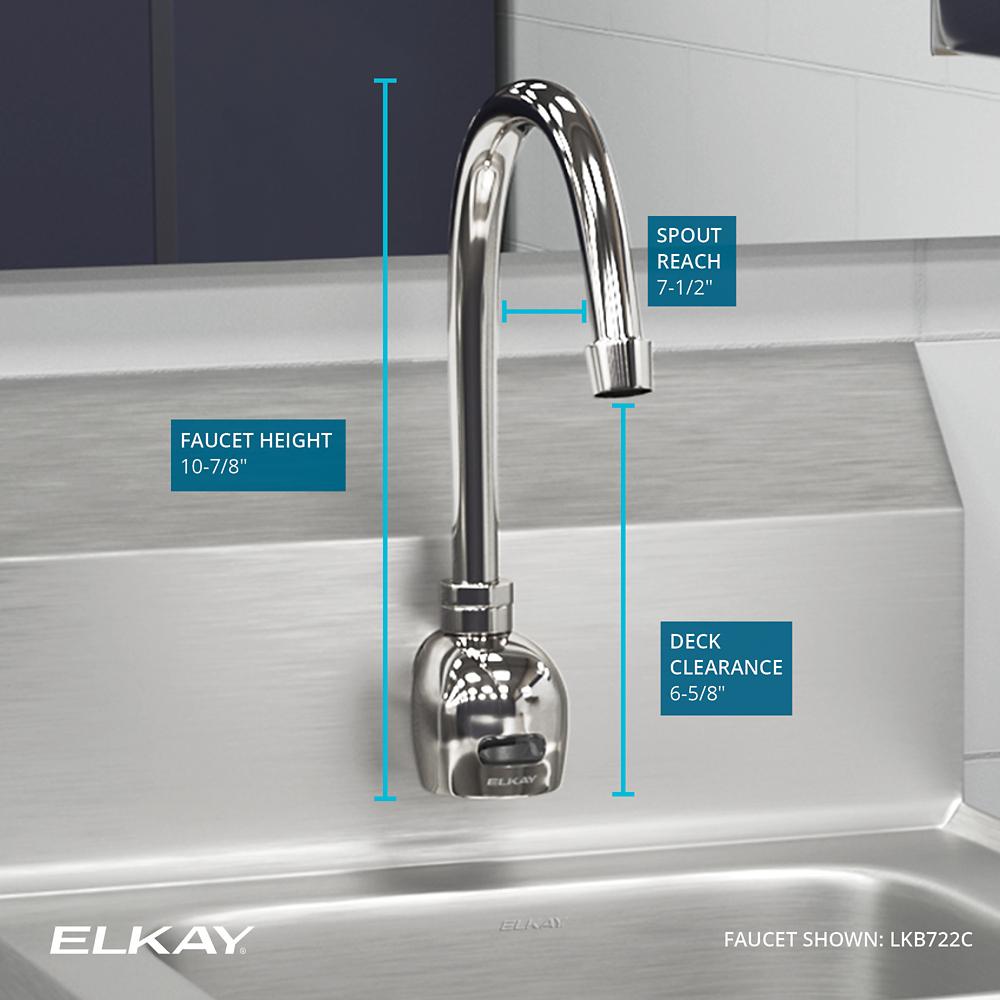

| Deck Clearance |
6-5/8" |
| Spout Reach |
7-1/2" |
| Spout Height |
10-7/8" |
| Hole Drillings |
1 |
| Application Type |
Scrub + Handwash |
| Spout Type |
Fixed Spout |
| Valve Type |
Electronic Control Module |
| Valve Connection |
1/2" NPT Female |
| Flow Rate |
1.2 GPM |
| Shipping Dimensions |
L: 17-1/2" W: 8-7/8" H: 3-3/4" |
| Shipping Weight |
5 LBS |

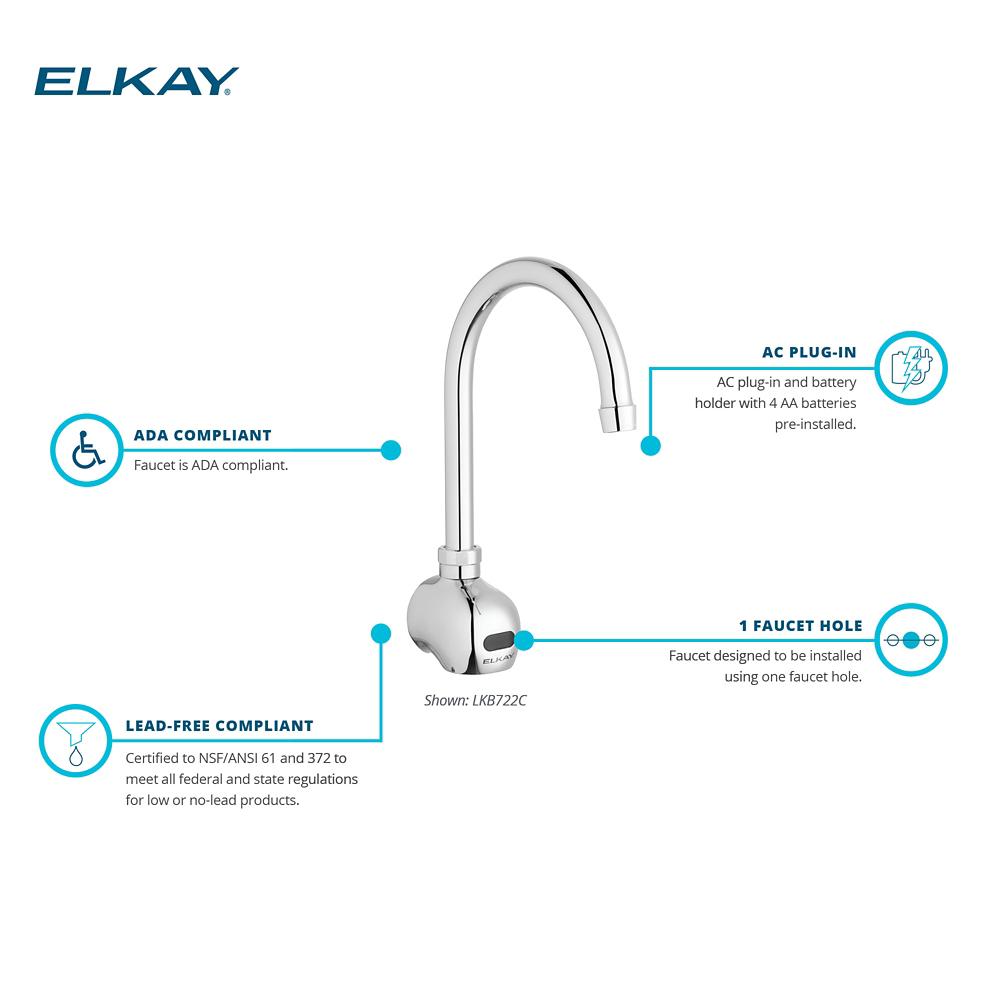

| Included with Product |
AC plug-in and battery holder with 4 AA batteries pre-installed |
| ADA |
Yes |
| Code Compliance Faucets |
ADA & ICC A117.1 ASME A112.18.1/CSA B125.1 NSF 372 (lead free) NSF 61 |
| Note |
in-line filter with clean out trap and flexible supply hose. |
Elkay® commercial faucets combine performance and style. From the commercial kitchen to the classroom, we have faucets for a variety of applications. Select from options and styles that make it easier to take on the tasks you do every day.
