CHSP1716SACC

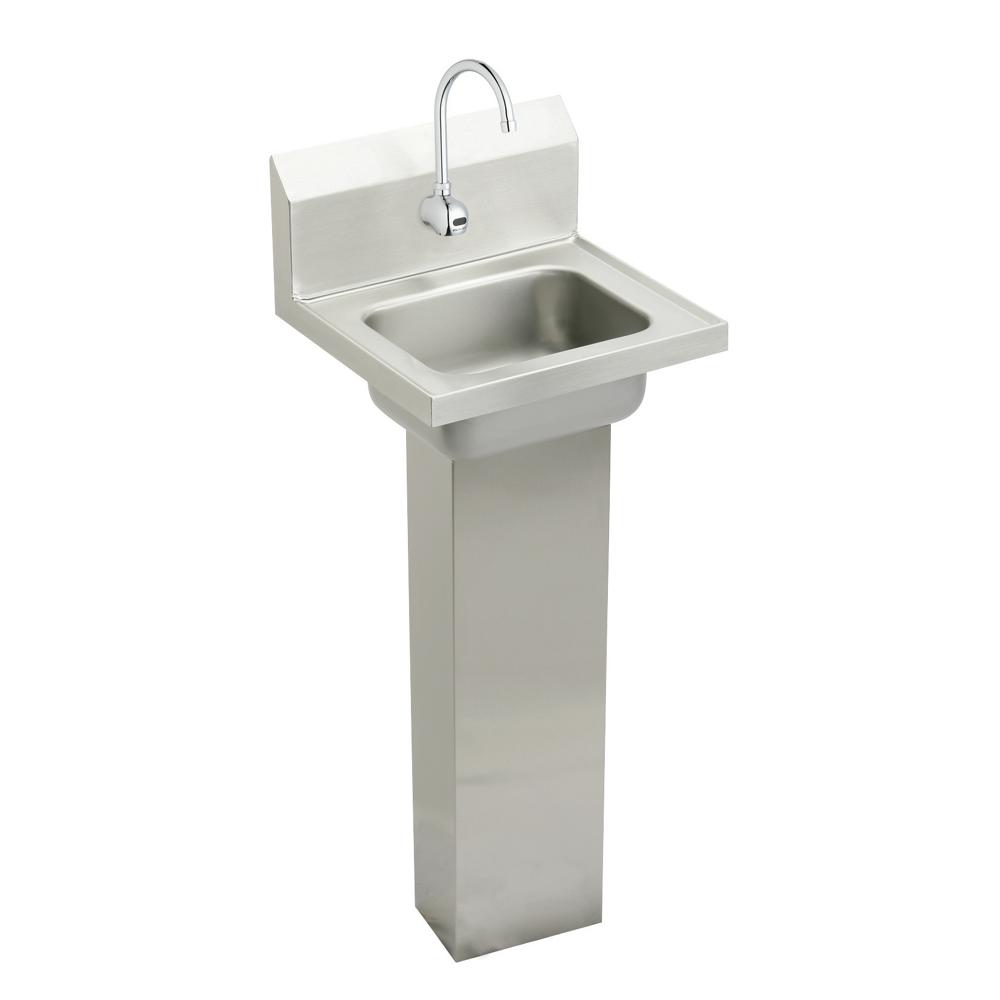

Stainless Steel 16-3/4" x 15-1/2" x 13" Single Bowl Wall Hung Handwash Sink Kit

$2,866.00 (USD)

Actual selling price may vary
Where to Buy Contact Us
Material Stainless Steel
Installation Type Scullery
Gauge 20
Number of Bowls 1
Minimum Cabinet Size 0"

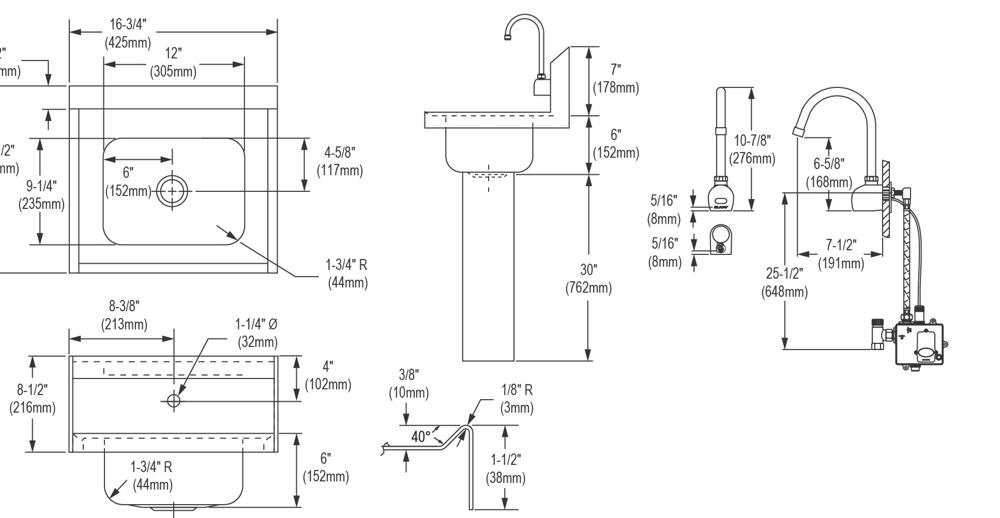

Dimensions L: 16-3/4"
W: 15-1/2"
H: 48-7/8"
Bowl 1 Dimensions L: 12"
W: 9-1/4"
H: 6"
Hole Drillings 1
Drain Size Bowl 1 1-1/2"
Shipping Dimensions L: 24"
W: 15-11/16"
H: 31"
Shipping Weight 32 LBS
Included With Product CHSP1716 sink
LKB722C sensor faucet with AC plug-in / 4 AA batteries
one LK8 grid drain fitting
one LK500 P-trap
Ships In Multiple Boxes Yes
ADA No
Code Compliance ASME A112.19.3
ASME A112.18.1
ASME A112.18.2
CSA B45.4
CSA B125.1
CSA B125.2
NSF 2
cUPC
NSF 61
NSF 372
IPC

Elkay® has been a trusted name in stainless steel since 1920. We are proud to be America's No. 1 selling kitchen sink company. In addition, we offer prep, bar, bath and laundry sinks. Elkay commercial sinks can be found in public spaces such as classrooms, office buildings, health care facilities, parks and recreation areas and more. Available in ADA depths.

  • Type 304 stainless steel basin
  • 1-3/4" radius coved corners
  • 7" high, full-length backsplash with 45-degree angle sloped top
  • Exposed surfaces have a brushed finish
  • Easy to clean and sanitize
  • 2" drain opening
  • 36" floor to rim
  • Stainless steel pedestal
  • Kit includes CHSP1716 sink, LKB722C AC/battery-powered sensor faucet, one LK8 grid drain fitting and one LK500 P-trap
