Material |
Chrome-plated Brass |
---|---|
Spray Type |
None |
Installation Type |
Wall Mount |
Features |
1/2" Adjustable Inlets with Integral Stops Solid Brass Construction Spout Swing Restriction Pin |

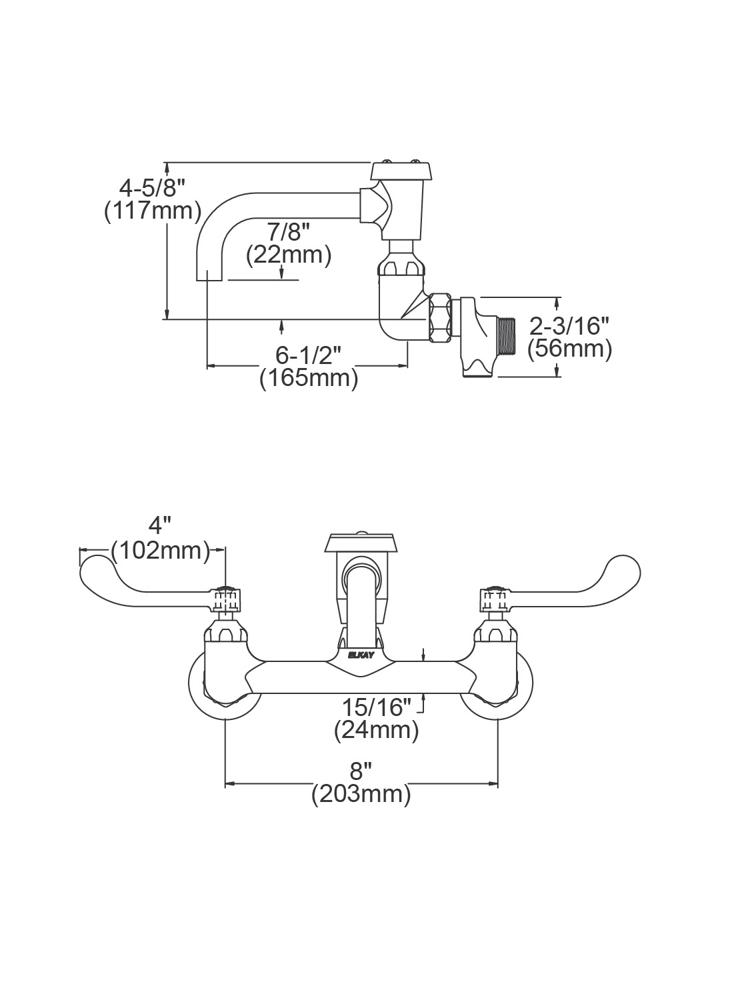

Dimensions |
L: 8" W: 9-7/8" H: 4-5/8" |
Handle Quantity |
2 |
Handle Type |
4" Wristblade Handle |
Deck Clearance |
7/8" |
Spout Reach |
6-1/2" |
Spout Height |
4-5/8" |
Hole Drillings |
2 |
Application Type |
Service + Utility |
Spout Type |
Vented Spout |
Valve Type |
Quarter Turn Ceramic Disc |
Valve Connection |
ShutOff Valve 1/2" NPT FM Inlt |
Flow Rate |
4 GPM |
Shipping Dimensions |
L: 12-3/16" W: 7-3/8" H: 4-3/8" |
Shipping Weight |
8 LBS |
Included with Product |
Shut-off |
Country Of Origin |
TWN |
ADA |
Yes |
Code Compliance Faucets |
ADA & ICC A117.1 ASME A112.18.1/CSA B125.1 NSF 372 (lead free) NSF 61 |
Elkay® commercial faucets combine performance and style. From the commercial kitchen to the classroom, we have faucets for a variety of applications. Select from options and styles that make it easier to take on the tasks you do every day.
