DXUH312010RDFBG

Discontinued

Replaced By: DXUH3118 Contact Us
Material Stainless Steel
Installation Type Sink Kits
Undermount
Gauge 18
Sound Deadening Bottom only pads
Number of Bowls 2
Minimum Cabinet Size 36"

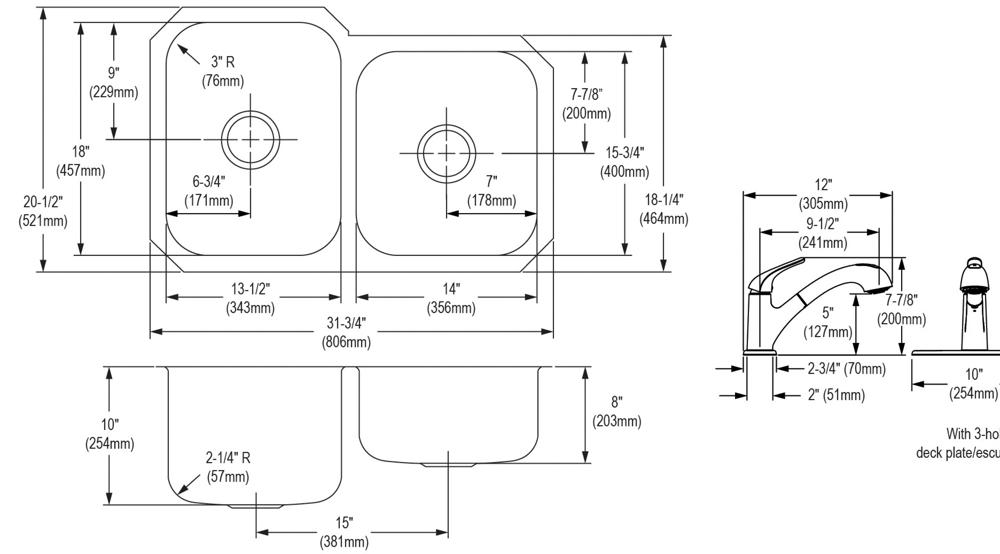

Dimensions L: 31-3/4"
W: 20-1/2"
H: 10"
Bowl 1 Dimensions L: 13-1/2"
W: 18"
H: 10"
Bowl 2 Dimensions L: 14"
W: 15-3/4"
H: 8"
Drain Size 3-1/2"
Drain Size 2 3-1/2"
Application Type Residential/Multi-Family
Shipping Dimensions L: 23-5/16"
W: 12-1/16"
H: 39-7/16"
Shipping Weight 27 LBS
Included with Product LK5000CR faucet

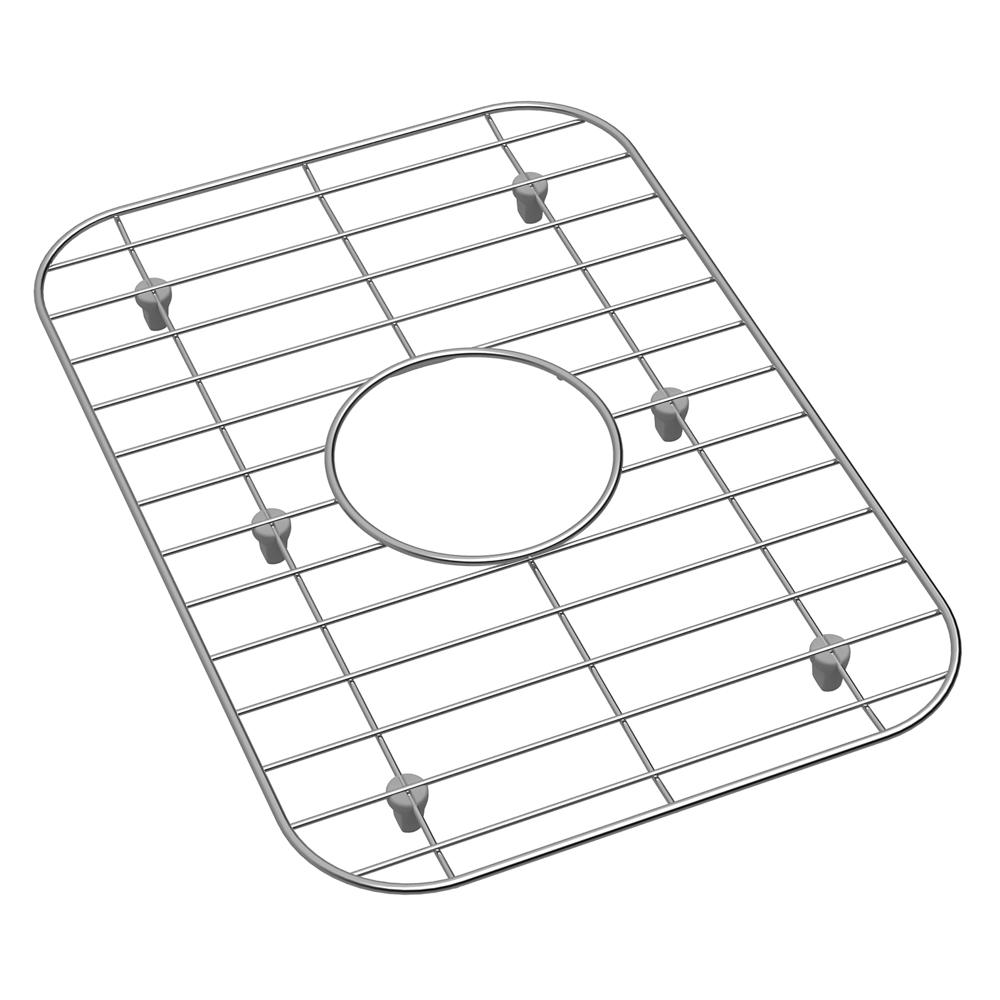

one GBG1318SS bottom grid
two drains
Family Dayton
ADA No
Code Compliance Sinks ASME A112.19.3/CSA B45.4
Code Compliance Faucets ASME A112.18.1/CSA B125.1
CEC
NSF 372 (lead free)
NSF 61
Code Compliance Accessories ASME A112.18.2/CSA B125.2
Room Kitchen

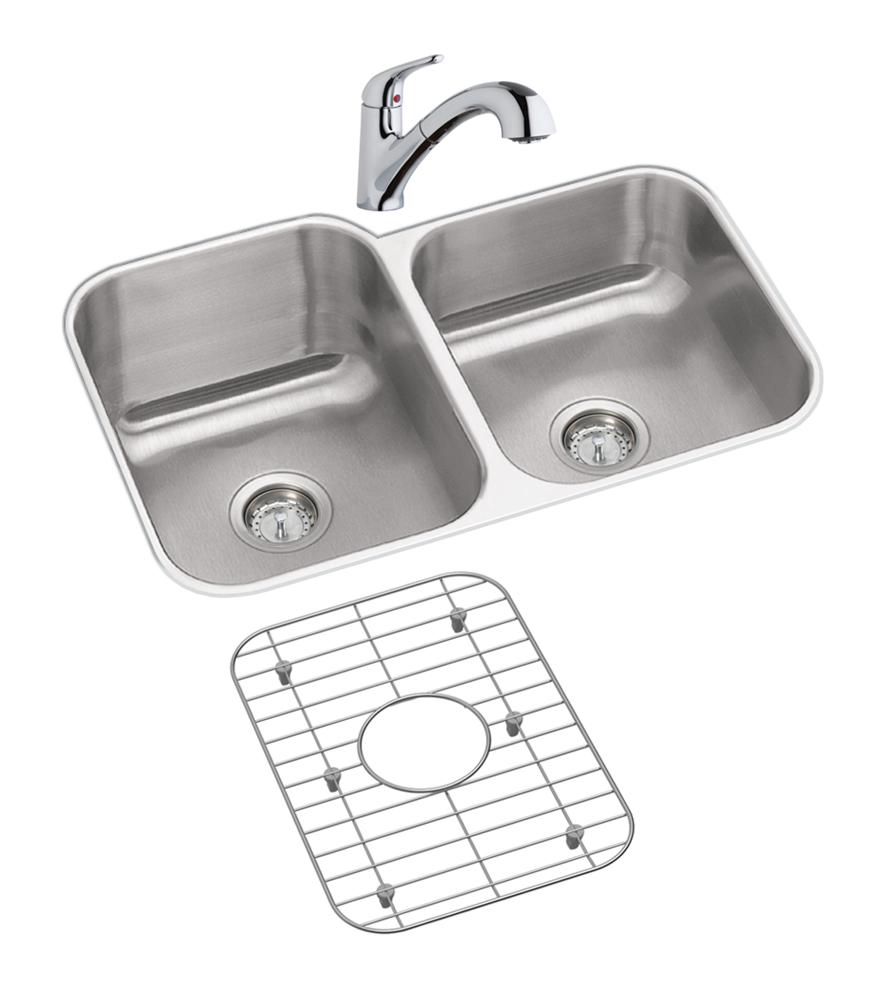

Dayton® Stainless Steel 31-3/4" x 20-1/2" x 10" 60/40 Double Bowl Undermount Sink and Faucet Kit with Bottom Grid

  • UNDERMOUNT INSTALLATION: Sink is installed beneath the countertop creating a seamless appearance between the sink and the countertop
  • 18-GAUGE STAINLESS STEEL: High-quality 18-gauge thickness and 300 Series stainless steel for lasting durability
  • QUIET: Sound-deadening pad(s) minimizes sound and vibration for a quieter time at the sink
  • CENTER DRAIN: Drain is conveniently placed in the center of the sink
  • LARGE CAPACITY: Straight sidewalls give the sink a flat bottom and offer more usable space for stacking, soaking and washing dishes; easy to clean
  • EXTRA DEEP BOWLS: High-capacity bowls offer more room inside for stacking dishes, filling stockpots, and handling large baking sheets and roasters
  • TWO BOWLS, DIFFERENT SIZES: Use bowls independently; wash dishes on one side, while keeping the other bowl available for smaller tasks
  • DRAIN OPENING: Sink drain opening measures 3-1/2"
  • KIT INCLUDES: DXUH312010R sink, LK5000CR faucet, one GBG1318SS bottom grid, two drains; conveniently packaged together to save you time
