CHS1716SACTMC

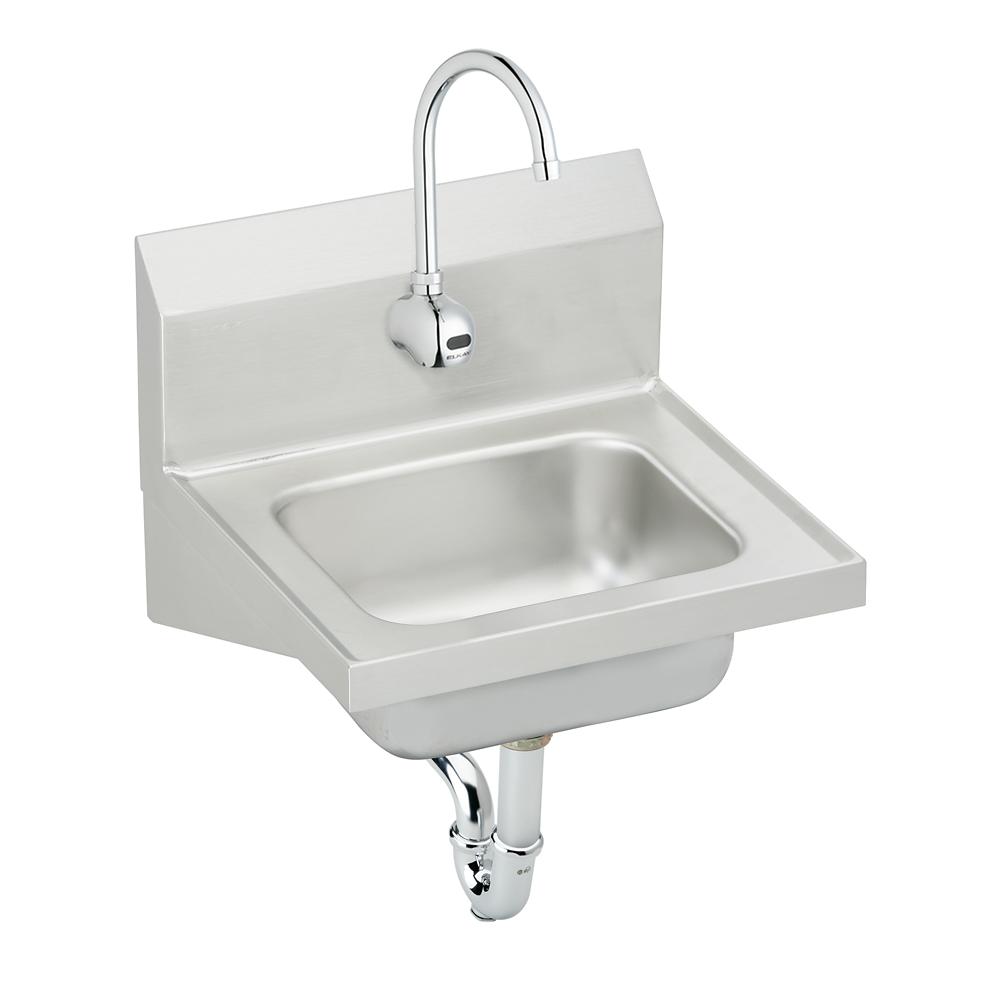

Stainless Steel 16-3/4"x15-1/2"x13" Single Bowl Wall Hung Handwash Sink w/Faucet+Thermostatic Mixing Valve+Drain+P-trap

$3,178.00 (USD)

Actual selling price may vary
Where to Buy Contact Us
Material Stainless Steel
Installation Type Wall
Gauge 20
Number of Bowls 1
Minimum Cabinet Size 0"
Dimensions L: 16-3/4"
W: 15-1/2"
H: 13"
Bowl 1 Dimensions L: 12"
W: 9-1/4"
H: 6"
Spout Reach 7-1/2"
Spout Height 10-7/8"
Hole Drillings 1
Drain Size Bowl 1 2"
Shipping Dimensions L: 17-1/8"
W: 14-13/16"
H: 19-5/8"
Shipping Weight 22 LBS
Included With Product CHS1716 sink
one LKB722C sensor faucet with AC plug-in / 4 AA batteries
one LK723 thermostatic mixing valve
one LK8 drain fitting
one LK500 P-trap
Ships In Multiple Boxes Yes
ADA No
Code Compliance ASME A112.19.3
ASME A112.18.1
ASME A112.18.2
ASSE 1070
CSA B45.4
CSA B125.1
CSA B125.2
NSF 2
cUPC
NSF 61
NSF 372
CEC Listed
IPC

Elkay® has been a trusted name in stainless steel since 1920. We are proud to be America's No. 1 selling kitchen sink company. In addition, we offer prep, bar, bath and laundry sinks. Elkay commercial sinks can be found in public spaces such as classrooms, office buildings, health care facilities, parks and recreation areas and more. Available in ADA depths.

  • Type 304 stainless steel basin
  • 1-3/4" radius coved corners
  • 7" high, full-length backsplash with 45-degree angle sloped top
  • Exposed surfaces have a brushed finish
  • 2" drain opening
  • Easy to clean and sanitize
  • Furnished with hanger and integral stainless steel support brackets
  • Kit includes CHS1716 sink, LKB722C AC/battery-powered sensor faucet, LK723 thermostatic mixing valve, LK8 drain fitting and LK500 P-trap
