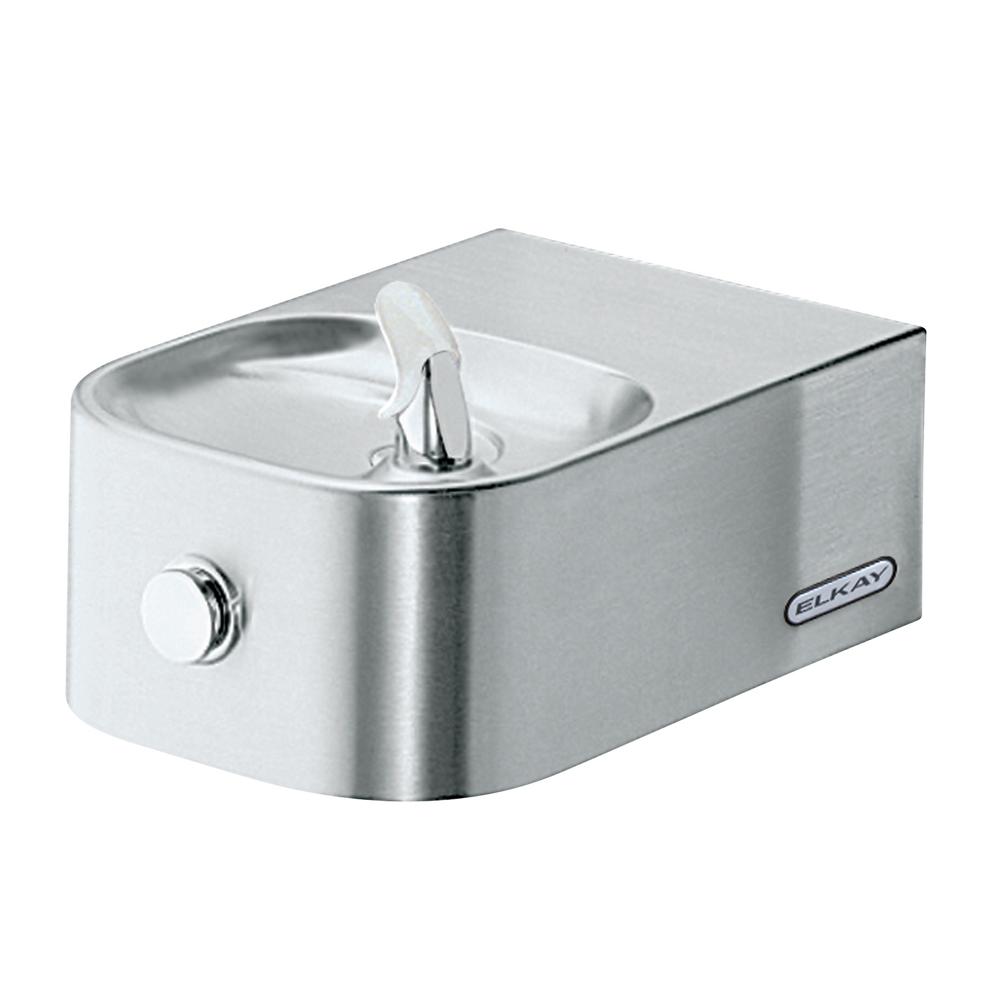

EDFP214C

Soft Sides® Single ADA Fountain Non-Filtered Non-Refrigerated Stainless

$1,707.00 (USD)

Actual selling price may vary
Soft Sides® architectural drinking fountains feature softly rounded corners and a Contoured basin designed to provide a splash-resistant surface.
Read More
Spec + Install + BIM Where to Buy Configure My Specs
  • Contoured fountain provides an attractive and safe product
  • Mechanical bubbler push button continues to provide water when electrical service is interrupted
  • Flexi-Guard bubbler provides a flexible antimicrobial mouth guard that protects against injury and microorganisms from growing on it
  • Stainless steel finish is corrosion resistant and attractive
  • Bottom cover plate conceals plumbing and internal components
  • Rated for indoor or outdoor use
...more

Specifications

Number of Stations 1
Power No Electrical Required
Gauge 18

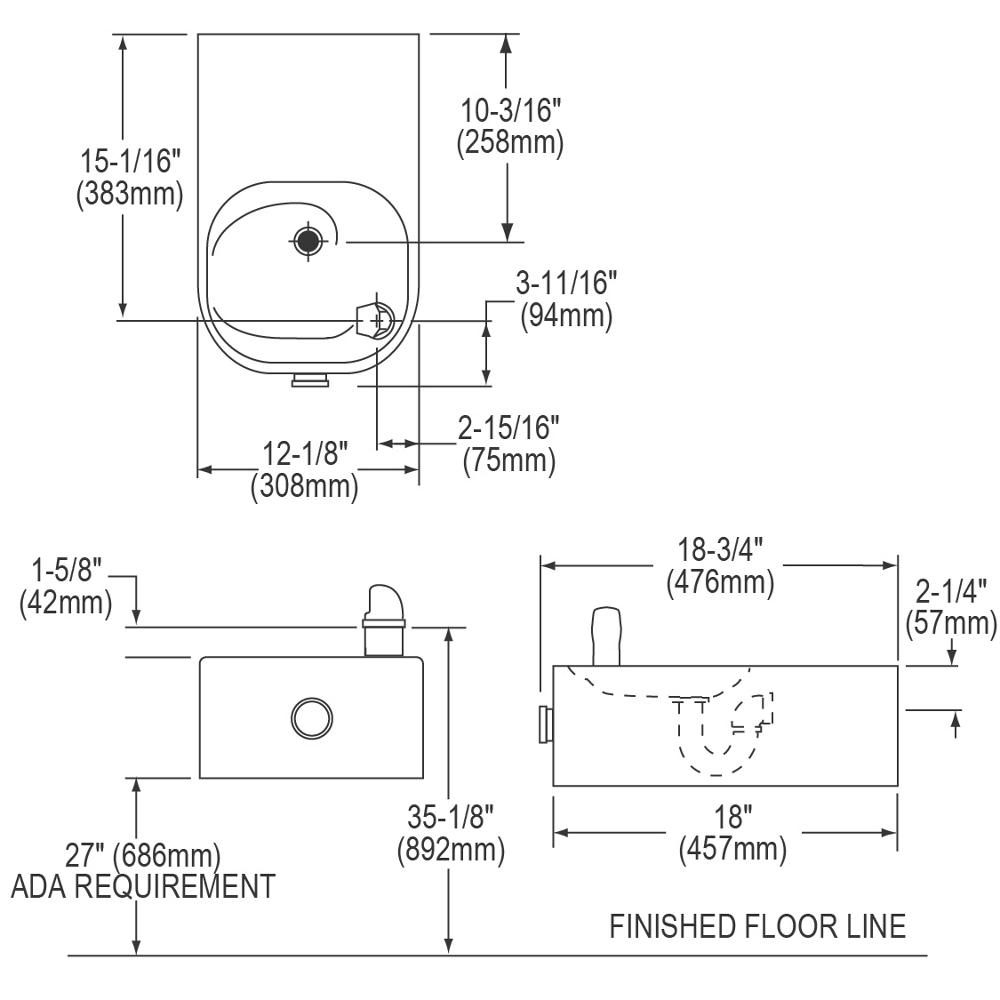

Dimensions L: 12-1/8IN
W: 18-3/4IN
H: 6-1/2IN
Bubbler Style Flexi-Guard ® Safety Bubbler
Mounting Type Wall Mount (On Wall)
Chilling Capacity Non-refrigerated
Installation Location Indoor + Outdoor
Application Classroom
Shipping Dimensions L: 28-11/16IN
W: 21IN
H: 16IN
Shipping Weight 16LB
Included With Product Fountain
ADA Yes
Filtered No
Code Compliance ASME A112.19.3/CSA B45.4
CSA B45.4
NSF REG4
NSF 61
NSF 372

Resources

PROP 65 WARNING

Configure My Specs

Configure your product to generate spec sheets, BIM files, EPDs, HPDs, and installation instructions - all in a single download. This experience uses local browser storage to save your projects. To avoid losing saved work, do not clear your browser's local storage or cookies. To learn more about Configure My Spec, explore this page.
