EZVRSM-EDFPVM217D1LK

ezH2O® VR Mechanical Bottle Filling Station w/Bi-Level Integral Soft Sides® Ftn Non-Filtered Non-Refrigerated Stainless

$7,906.00 (USD)

Actual selling price may vary

NOTE: This Model is Non-Filtered. For Cleaner Water, Choose This Model's Filtered Counterpart LZVRSM-EDFPVM217D1LK
"

The Elkay EZH2O® Bottle Filling Station delivers a clean quick water bottle fill and enhances sustainability by minimizing our dependency on disposable plastic bottles. Vandal-resistant fountain and bottle filling station in a consolidated space saving ADA compliant design.
Read More
Spec + Install + BIM Where to Buy Configure My Specs
  • Vandal-resistant, push-button activation for both the bottle filler and the water fountain
  • Fill rate is 1.0 GPM
  • Laminar flow provides clean fill with minimal splash
  • Vandal-resistant bubblers feature chrome-plated integral hood guard to prevent contamination from other users, airborne deposits and tampering
  • Rated for indoor or outdoor use
  • No additional drain is needed for the bottle filler
  • Surface mount bottle filler drains into the lower fountain below
...more

Specifications

Material Stainless Steel
Number of Stations 2
Features Ambient Water
Includes Back Plate
Laminar Flow
Mechanically Activated
New Offering
Vandal Resistant
Power No Electrical Required

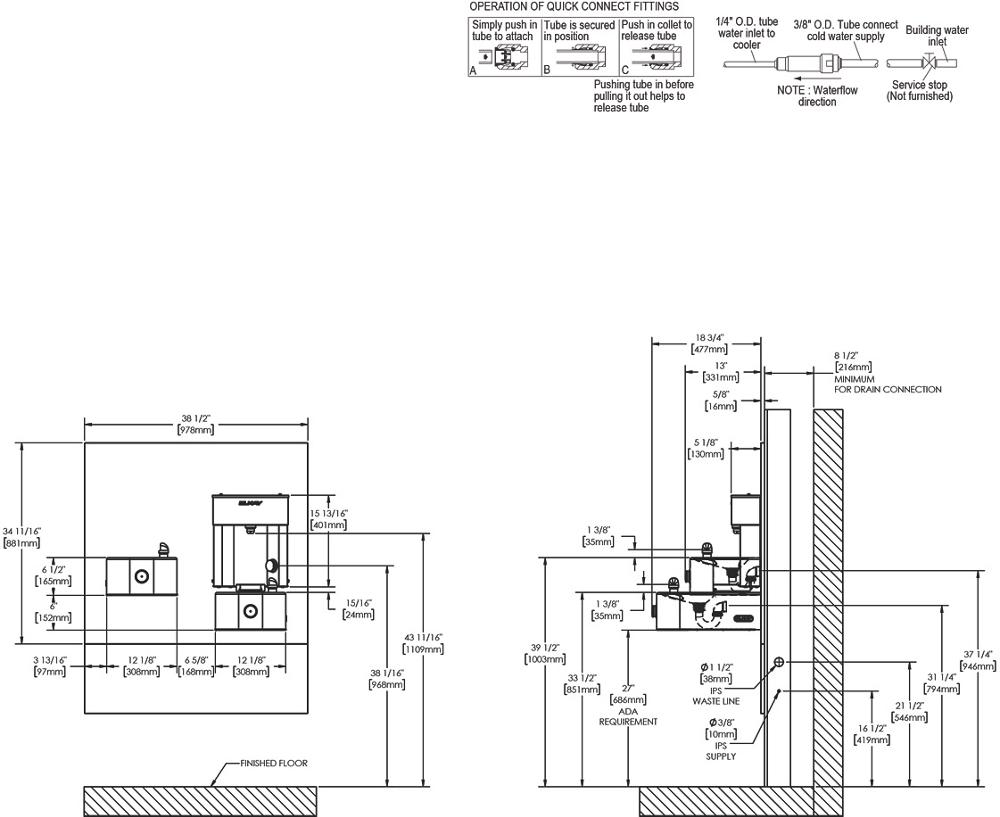

Dimensions L: 38-1/2IN
W: 19-3/8IN
H: 34-5/8IN
Bubbler Style Vandal Resistant
Mounting Type Wall Mount (In-Wall Frame/Plate)
Chilling Capacity Non-refrigerated
Installation Location Indoor + Outdoor
Application Classroom
Shipping Dimensions L: 41-5/8IN
W: 45-1/4IN
H: 38IN
Shipping Weight 118LB
Included With Product Bottle Filler (VRCSM214C)
Fountain Only (EDFPV217LSM-NF)
Mounting Frame (MFWS202)
Ships In Multiple Boxes Yes
ADA Yes
Filtered No
Note Access Panel - (Part number ACCESS12X38-5) is recommended for installations with no rear access
