DSE233223DFBG

Discontinued

Replaced By: DSE233223 Contact Us
Material Stainless Steel
Installation Type Drop-in
Sink Kits
Gauge 20
Sound Deadening Bottom only pads
Number of Bowls 2
Minimum Cabinet Size 36"

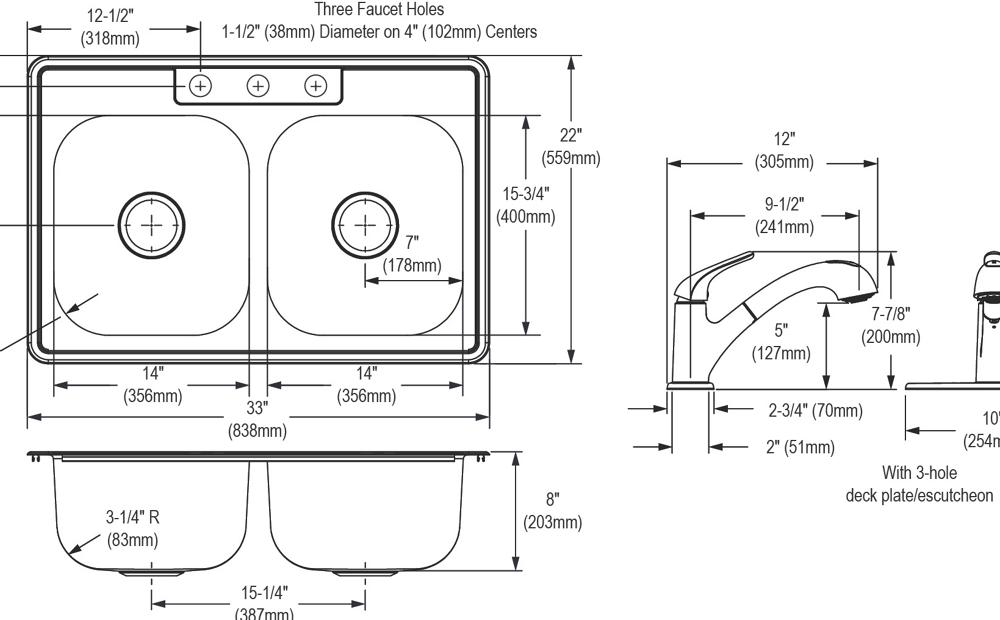

Dimensions L: 33"
W: 22"
H: 8-1/16"
Bowl 1 Dimensions L: 14"
W: 15-3/4"
H: 7-7/8"
Bowl 2 Dimensions L: 14"
W: 15-3/4"
H: 7-7/8"
Drain Size 3-1/2"
Drain Size 2 3-1/2"
Application Type Residential/Multi-Family
Shipping Dimensions L: 23-7/16"
W: 12-3/16"
H: 39-5/8"
Shipping Weight 31 LBS
Included with Product LK5000CR faucet
one GBG1415SS bottom grid
two drains
Country Of Origin USA
Family Dayton
ADA No
Code Compliance Sinks ASME A112.19.3/CSA B45.4
Code Compliance Faucets ASME A112.18.1/CSA B125.1
CEC
NSF 372 (lead free)
NSF 61
Code Compliance Accessories ASME A112.18.2/CSA B125.2

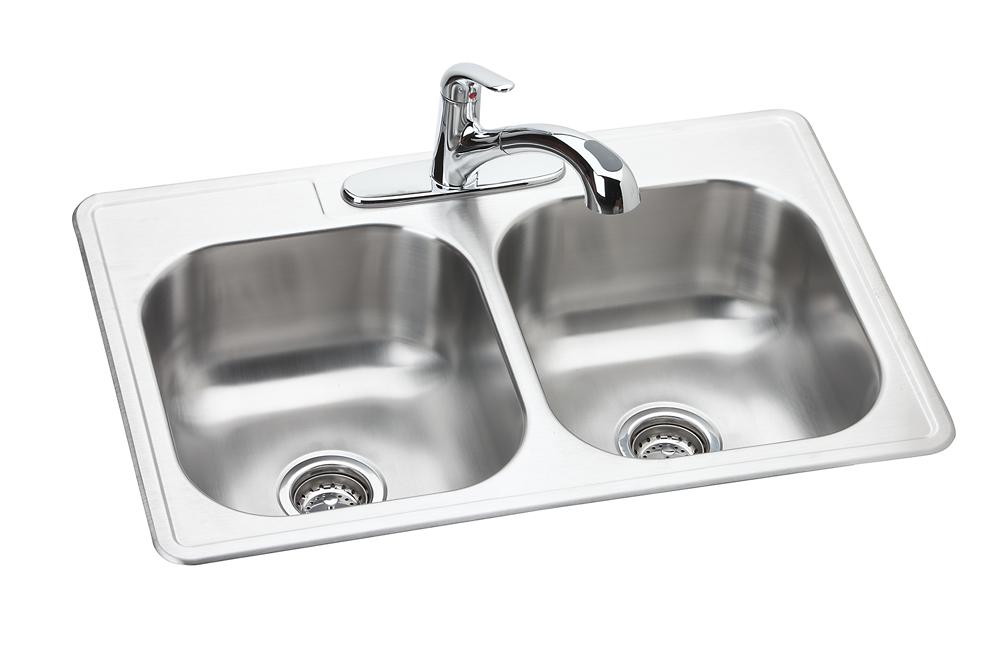

Dayton® Stainless Steel 33" x 22" x 8-1/16" 3-Hole Equal Double Bowl Drop-in Sink and Faucet Kit

  • DROP-IN INSTALLATION: Sink is designed for drop-in installation to make the sink a focal point of your room
  • DOUBLE BOWLS OF EQUAL SIZE: Conveniently use bowls independently for washing, soaking, rinsing, drying and other household tasks.
  • 20-GAUGE STAINLESS STEEL: Commercial grade 20-gauge thickness and 300 Series stainless steel for everyday use.
  • QUIET: Sound-deadening pad(s) minimizes sound and vibration for a quieter time at the sink
  • U-CHANNEL INSTALLATION: Mounting clips placed inside the channel before installation mean less time under the sink for an easier install
  • CENTER DRAIN: Drain is conveniently placed in the center of the sink.
  • DRAIN OPENING: Sink drain opening measures 3-1/2"
  • CABINET SIZE: Minimum cabinet size for this sink is 36".
  • KIT INCLUDES: DSE233223 sink, LK5000CR faucet, LGBG1415SS bottom grid, two drains; conveniently packaged together to save you time.
