CHS1716C

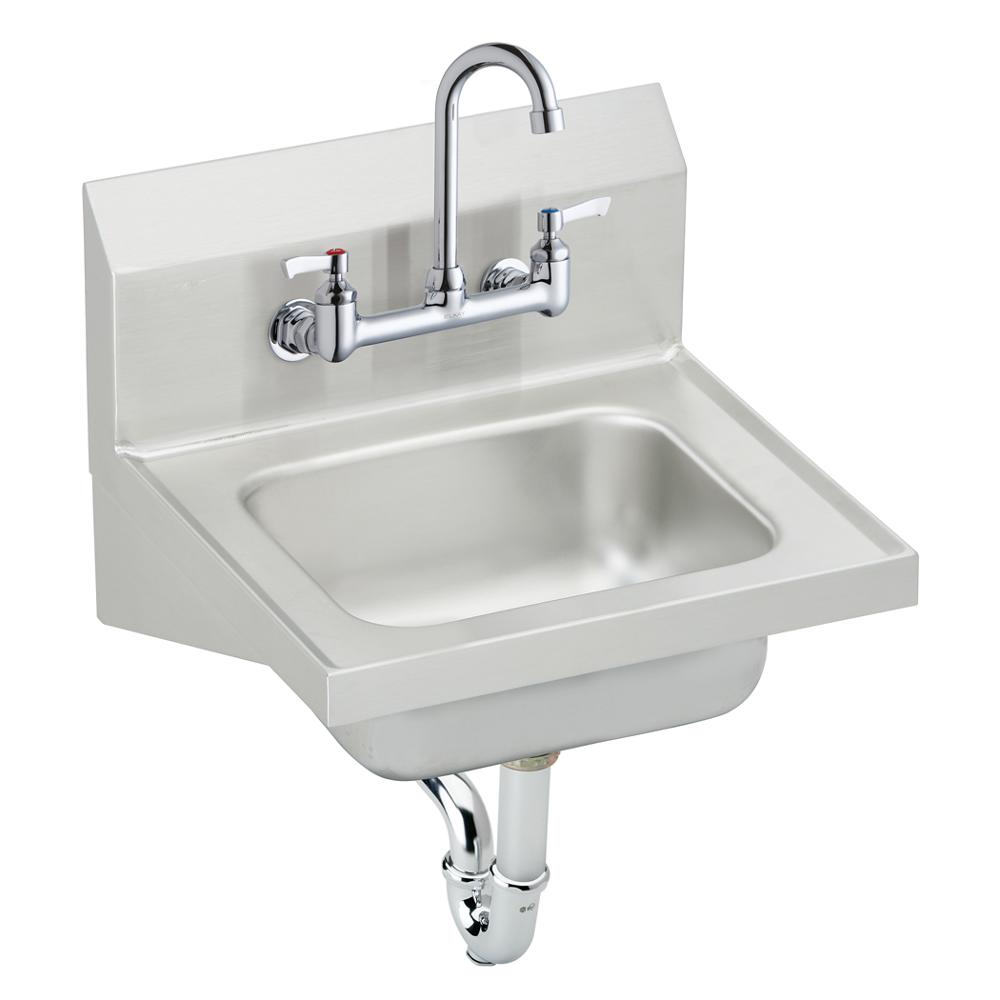

Stainless Steel 16-3/4" x 15-1/2" x 13" Single Bowl Wall Hung Handwash Sink Kit

$1,573.00 (USD)

Actual selling price may vary
Where to Buy Contact Us
Material Stainless Steel
Installation Type Wall
Gauge 20
Number of Bowls 1
Minimum Cabinet Size 0"
Dimensions L: 16-3/4"
W: 15-1/2"
H: 13"
Bowl 1 Dimensions L: 12"
W: 9-1/4"
H: 6"
Drain Size 2"
Application Type Scrub + Handwash
Shipping Dimensions L: 17-1/8"
W: 14-13/16"
H: 19-5/8"
Shipping Weight 18 LBS
Included with Product CHS17162 sink
one LK940GN04L2H faucet
one LK8 drain fitting
and one LK500 P-trap
Country Of Origin PACKAGE
ADA No
Code Compliance Sinks ASME A112.19.3/CSA B45.4
NSF 2
Code Compliance Faucets ASME A112.18.1/CSA B125.1
CEC
NSF 372 (lead free)
NSF 61
Code Compliance Accessories ASME A112.18.2/CSA B125.2

Elkay® has been a trusted name in stainless steel since 1920. We are proud to be America's No. 1 selling kitchen sink company. In addition, we offer prep, bar, bath and laundry sinks. Elkay commercial sinks can be found in public spaces such as classrooms, office buildings, health care facilities, parks and recreation areas and more. Available in ADA depths.

  • Type 304 stainless steel basin.
  • 1-3/4"-radius coved corners.
  • 7"-high, full-length backsplash with 45 degree-angle sloped top.
  • Exposed surfaces have a brushed finish.
  • 2" drain opening.
  • Easy to clean and sanitize.
  • Furnished with hanger and integral stainless steel support brackets.
  • Kit includes CHS1716 sink, LK940GN04L2H faucet, LK8 drain fitting and LK500 P-trap; conveniently packaged together to save you time.
