EU4814C

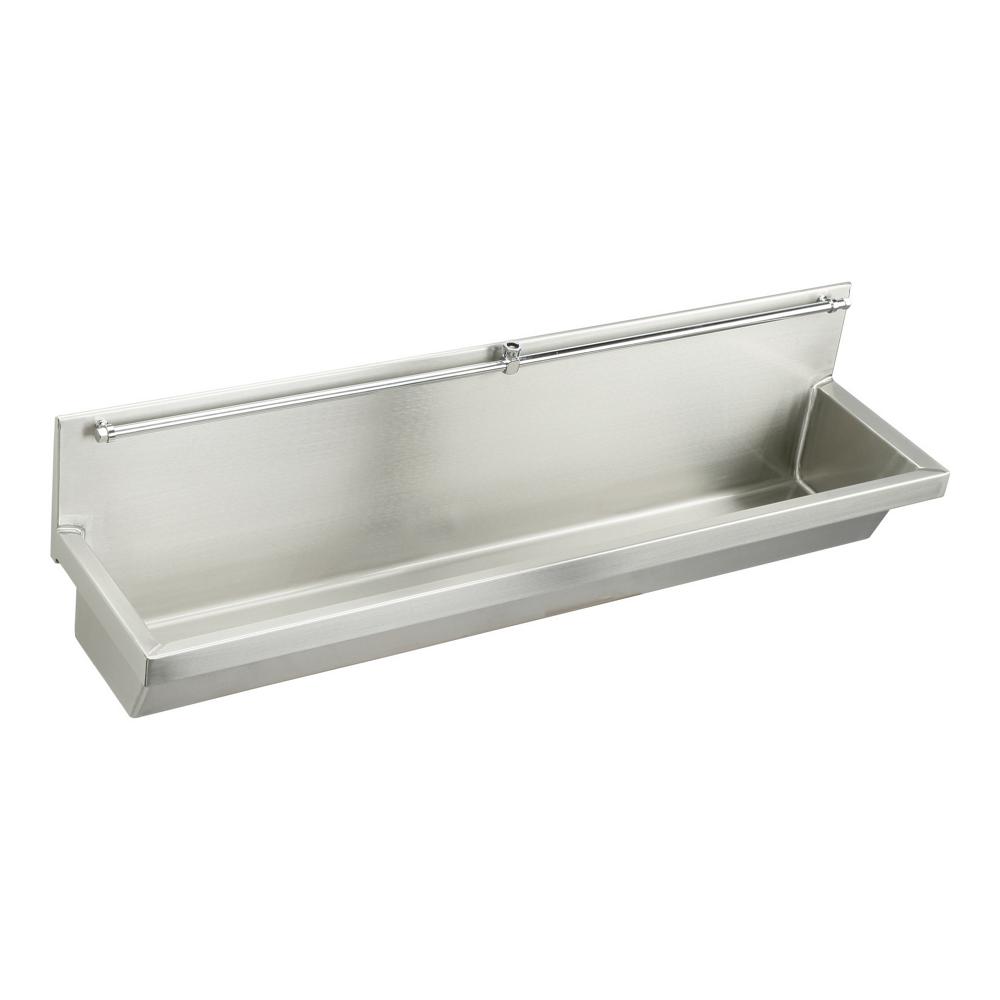

Stainless Steel 48" x 14" x 8" Wall Hung Multiple Station Urinal Kit

$4,916.00 (USD)

Actual selling price may vary
Loading... Please Wait.
Material Stainless Steel
Installation Type Wall
Gauge 14
Number of Bowls 1

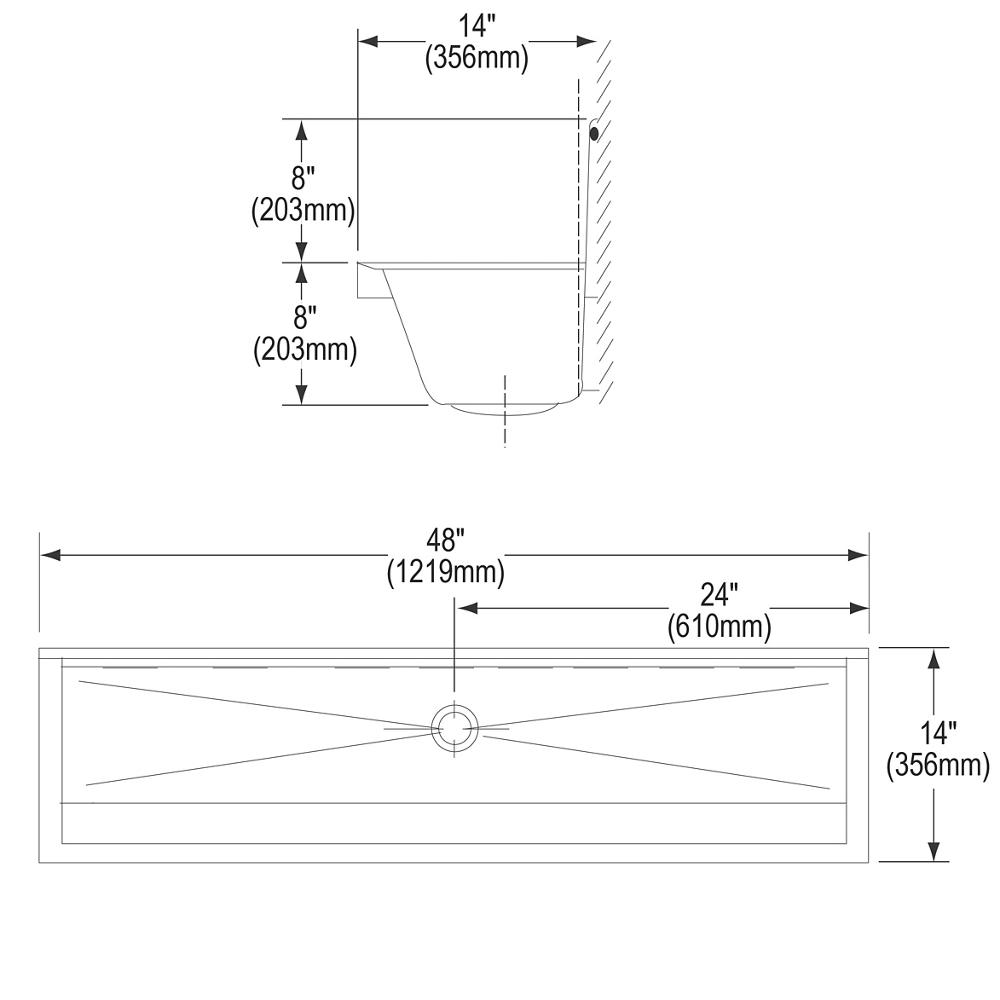

Dimensions L: 48"
W: 14"
H: 16"
Bowl 1 Dimensions L: 46-1/2"
W: 11"
H: 8"
Drain Size 1-3/4"
Application Type Lavatory
Shipping Dimensions L: 64-3/16"
W: 16-3/8"
H: 19-7/8"
Shipping Weight 50 LBS
Included with Product EU4814urinal
one LK177 strainer
Country Of Origin USA
ADA No
Code Compliance Sinks ASME A112.19.3/CSA B45.4
Code Compliance Accessories ASME A112.18.2/CSA B125.2

Elkay® has been a trusted name in stainless steel since 1920. We are proud to be America's No. 1 selling kitchen sink company. In addition, we offer prep, bar, bath and laundry sinks. Elkay commercial sinks can be found in public spaces such as classrooms, office buildings, health care facilities, parks and recreation areas and more. Available in ADA depths.

  • 14-gauge, Type 304 stainless steel.
  • Welded, seamless 1/4" coved corners.
  • Full-length sloping backsplash with flush pipe.
  • 1-1/2"-wide top-channel rims with 2" flat-front apron.
  • Sound-deadening material minimizes sound and vibration for a quieter time at the sink.
  • Furnished with continuous-length wall hanger and integral stainless steel mounting "Z" brackets.
  • Exposed surfaces polished to a satin finish; easy to clean and sanitize.
  • Designed for use with any water control flush valve, time valve or tank.
  • Water control valve and trap not included.
  • Kit includes EU4814 urinal, LK388 flush pipe and one LK177 strainer; conveniently packaged together to save you time
