| Material |
Brass |
|---|---|
| Spray Type |
Pre Rinse |
| Installation Type |
Deck-mount |
| Features |
Low Flow Solid Brass Waterway Construction |

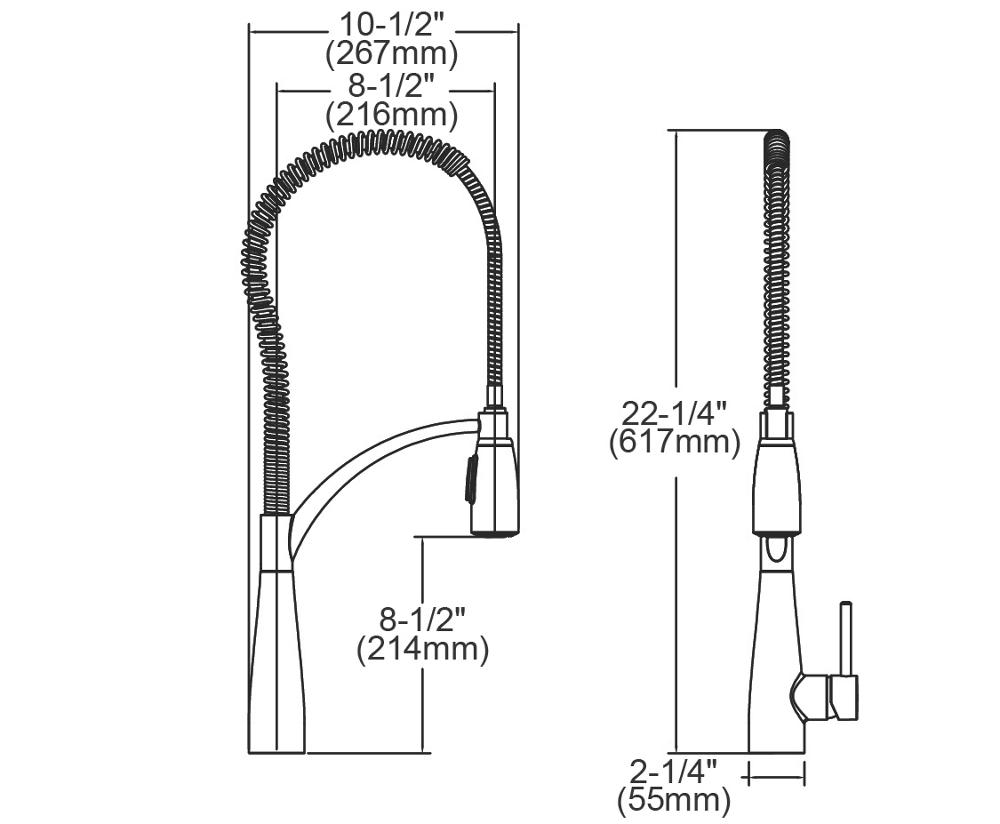

| Dimensions |
L: 10-1/2" W: 2-1/8" H: 22" |
| Handle Quantity |
1 |
| Handle Type |
Forward Only Lever Handle |
| Deck Clearance |
8-1/2" |
| Spout Reach |
8-1/2" |
| Spout Height |
22" |
| Application |
Residential |
| Spout Type |
Semiprofessional |
| Valve Connection |
1/2"-14 NPSM |
| Shipping Dimensions |
L: 27-9/16" W: 11" H: 2-3/4" |
| Shipping Weight |
6 LBS |
| ADA |
Yes |
| Code Compliance |
ASME A112.18.1 CSA B125.1 cUPC NSF 61 NSF 372 CEC Listed IPC |
| Room |
Kitchen |
| Note |
1.5 GPM flow regulator installed (2.2 GPM flow regulator also included with faucet) |
| Cartridge Type |
Ceramic Disc |

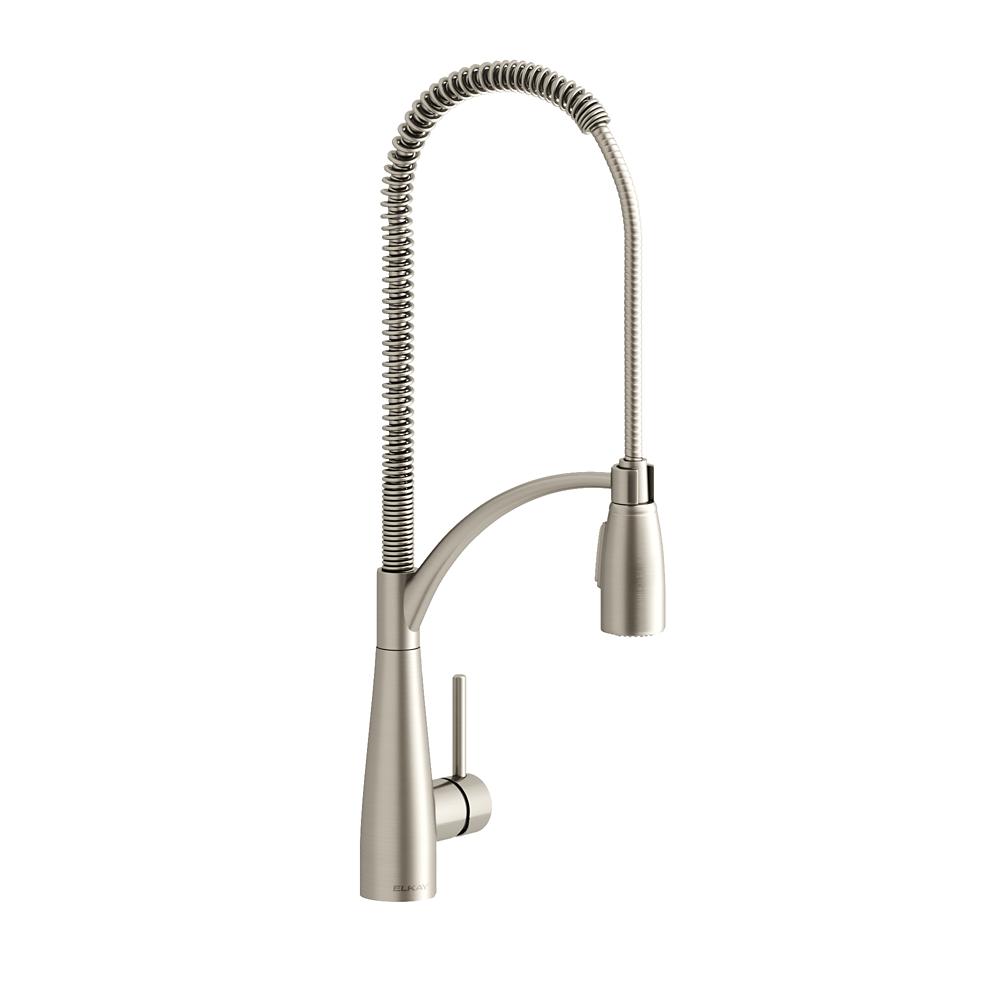

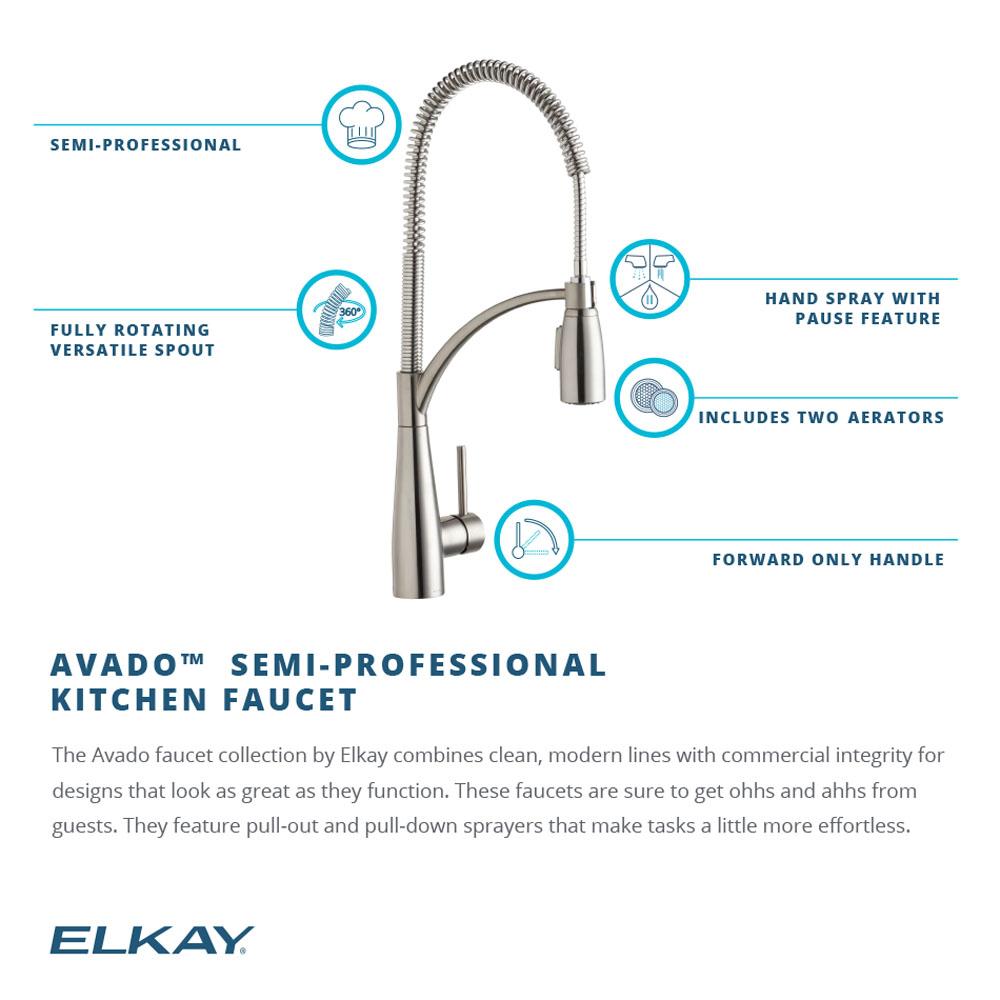

The Avado® kitchen faucet collection by Elkay® combines clean, modern lines with commercial designs that look as great as they function. These faucets are sure to get noticed in finishes such as Chrome, Lustrous Steel and Brushed Nickel. They feature pull-out and pull-down sprayers to make tasks a little more effortless. You can also choose an Avado pot filler.
