| Material |
Brass |
|---|---|
| Spray Type |
Side |
| Installation Type |
Deck-mount |
| Features |
Low Flow |

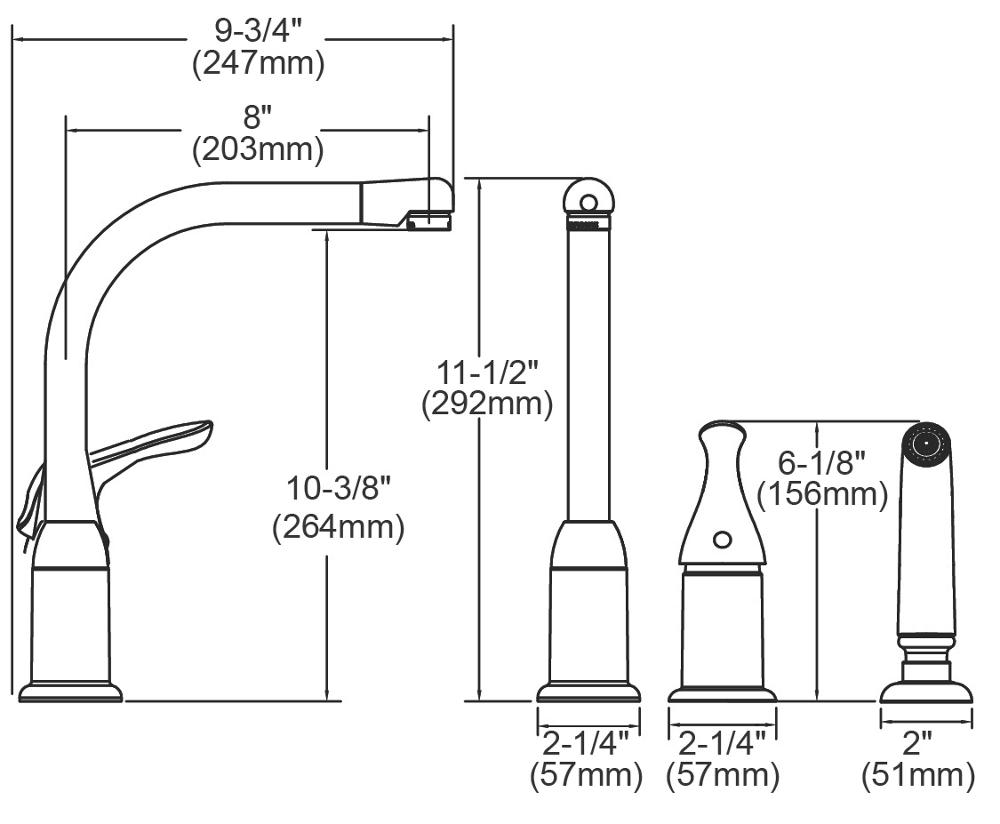

| Dimensions |
L: 2-1/4" W: 9-3/4" H: 11-1/2" |
| Handle Quantity |
1 |
| Handle Type |
Remote Lever Handle |
| Deck Clearance |
10-3/8" |
| Spout Reach |
8" |
| Spout Height |
11-1/2" |
| Application |
Residential |
| Spout Type |
Standard Spout |
| Valve Connection |
3/8" Female Compression Hose Assembly |
| Shipping Dimensions |
L: 16-9/16" W: 10-7/16" H: 2-9/16" |
| Shipping Weight |
4 LBS |
| ADA |
Yes |
| Code Compliance |
ASME A112.18.1 CSA B125.1 cUPC NSF 61 NSF 372 CEC Listed IPC |
| Room |
Kitchen |
| Note |
1.5 GPM flow regulator installed (2.2 GPM flow regulator also included with faucet) |
| Cartridge Type |
Ceramic Disc |
Whether you're looking for a faucet for your home or for commercial use, there's an Elkay® faucet to meet your needs. From the kitchen and bath, to the laundry, we have stylish designs to complement every decor. Our commercial faucets are ideal for offices, classrooms, health care facilities, foodservice applications and more.
