EDFPBWM114C

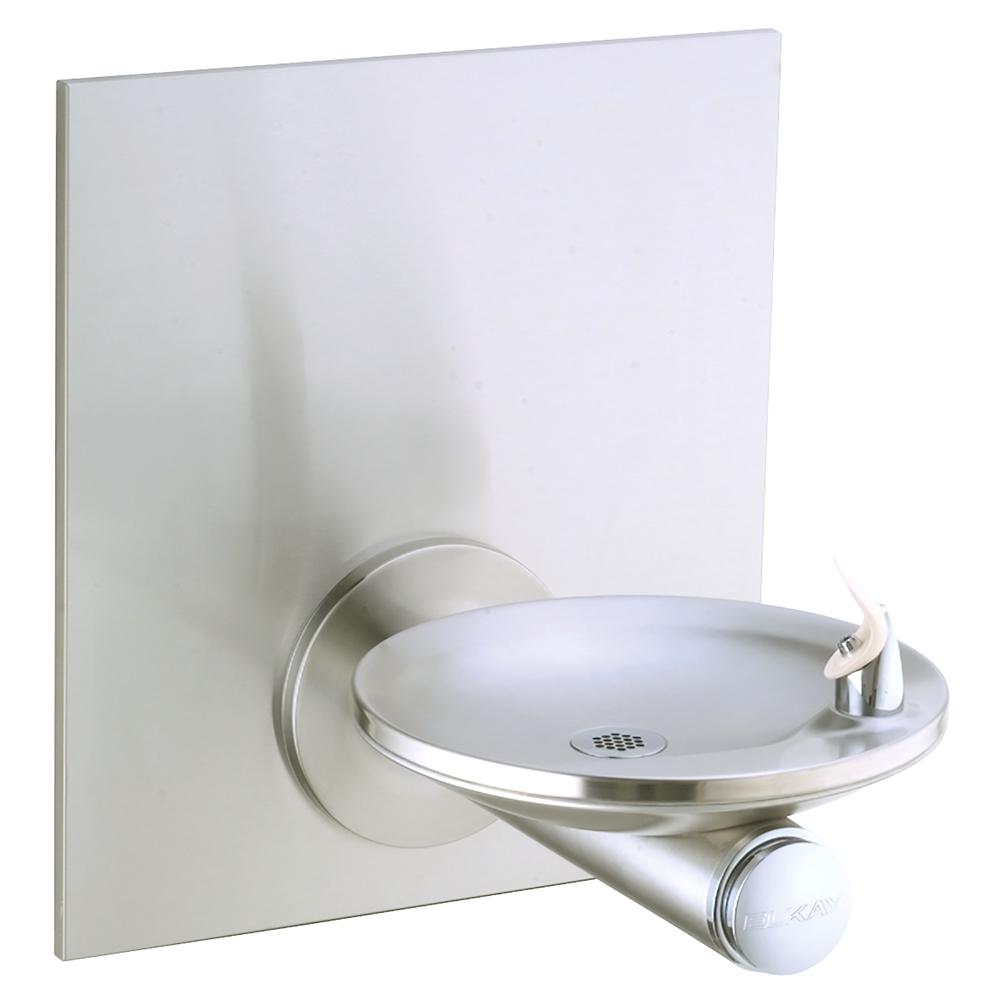

SwirlFlo® Single Fountain Surface Mounting Non-Filtered Non-Refrigerated Stainless

$3,003.00 (USD)

Actual selling price may vary
SwirlFlo® architectural drinking fountains feature sleek styling with a Contoured oval basin designed to provide a splash-resistant surface.
Read More

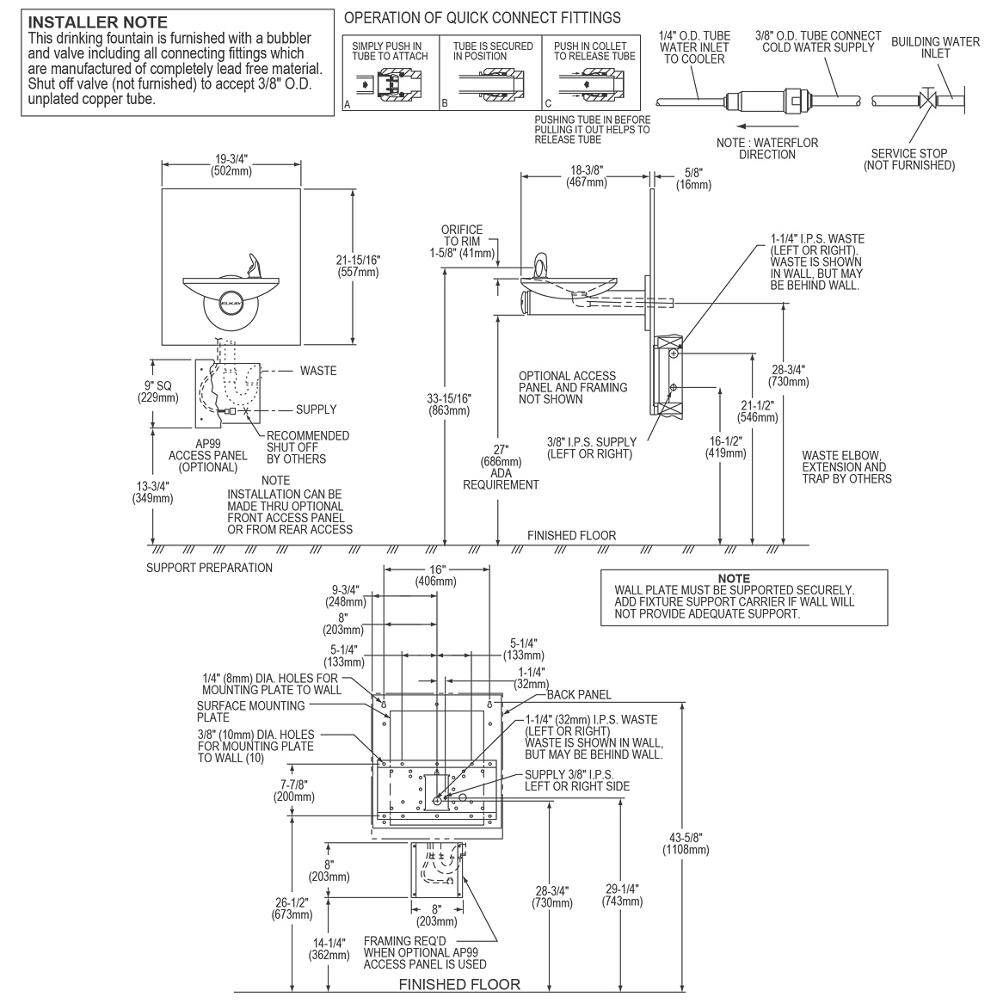

Spec + Install + BIM Where to Buy Configure My Specs
  • Patented stainless steel design enhances any architectural design, whether classic landmark or cutting edge
  • Mechanical bubbler push button continues to provide water when electrical service is interrupted

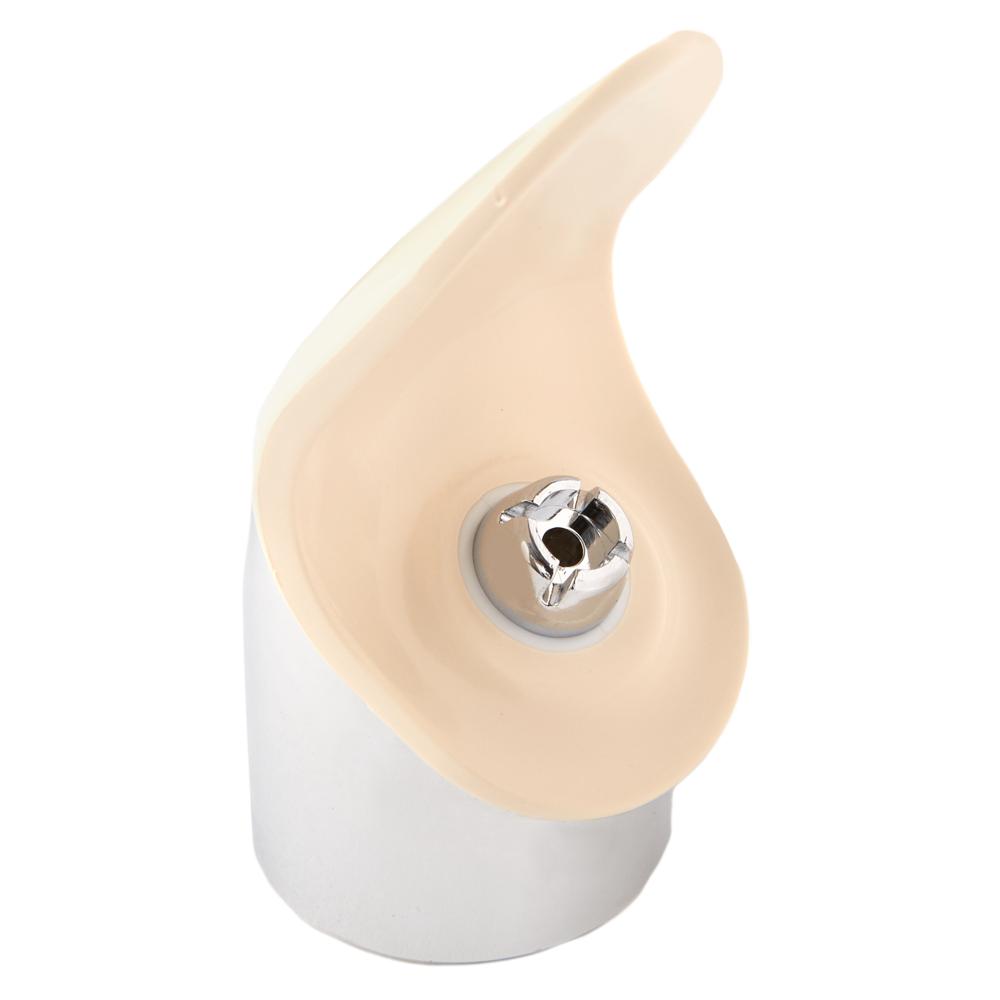

  • Flexi-Guard bubbler provides a flexible antimicrobial mouth guard that protects against injury and microorganisms from growing on it
  • Stainless steel finish is corrosion resistant and attractive
  • Includes wall mounting plate
  • Rated for indoor or outdoor use
...more

Specifications

Material Stainless Steel
Number of Stations 1
Power No Electrical Required
Dimensions L: 19-3/4IN
W: 19IN
H: 21-15/16IN
Bubbler Style Flexi-Guard ® Safety Bubbler
Mounting Type Wall Mount (On Wall)
Chilling Capacity Non-refrigerated
Installation Location Indoor
Shipping Dimensions L: 28-5/8IN
W: 20-5/8IN
H: 14-1/2IN
Shipping Weight 22LB
Included With Product Fountain with Back Plate
Surface Mounting
ADA Yes
Filtered No
Code Compliance ASME A112.19.3/CSA B45.4
CSA B45.4
NSF REG4
NSF 61
NSF 372
Note If rear access is not available front access panels may be required such as ACCESS12X38-5 or AP99

Resources

PROP 65 WARNING

Configure My Specs

Configure your product to generate spec sheets, BIM files, EPDs, HPDs, and installation instructions - all in a single download. This experience uses local browser storage to save your projects. To avoid losing saved work, do not clear your browser's local storage or cookies. To learn more about Configure My Spec, explore this page.

How-To Videos
