EDFP214FC

Soft Sides® Single ADA Fountain Bottle Filler Prepped Non-Filtered Non-Refrigerated Stainless

$1,748.00 (USD)

Actual selling price may vary
Soft Sides® architectural drinking fountains feature softly rounded corners and a Contoured basin designed to provide a splash-resistant surface.
Read More
Spec + Install + BIM Where to Buy Configure My Specs
  • Contoured fountain provides an attractive and safe product
  • Mechanical bubbler push button continues to provide water when electrical service is interrupted
  • Flexi-Guard bubbler provides a flexible antimicrobial mouth guard that protects against injury and microorganisms from growing on it
  • Stainless steel finish is corrosion resistant and attractive
  • Bottom cover plate conceals plumbing and internal components
  • Rated for indoor or outdoor use
...more

Specifications

Material Stainless Steel
Number of Stations 1
Features Glass Filler Prepped
Power No Electrical Required

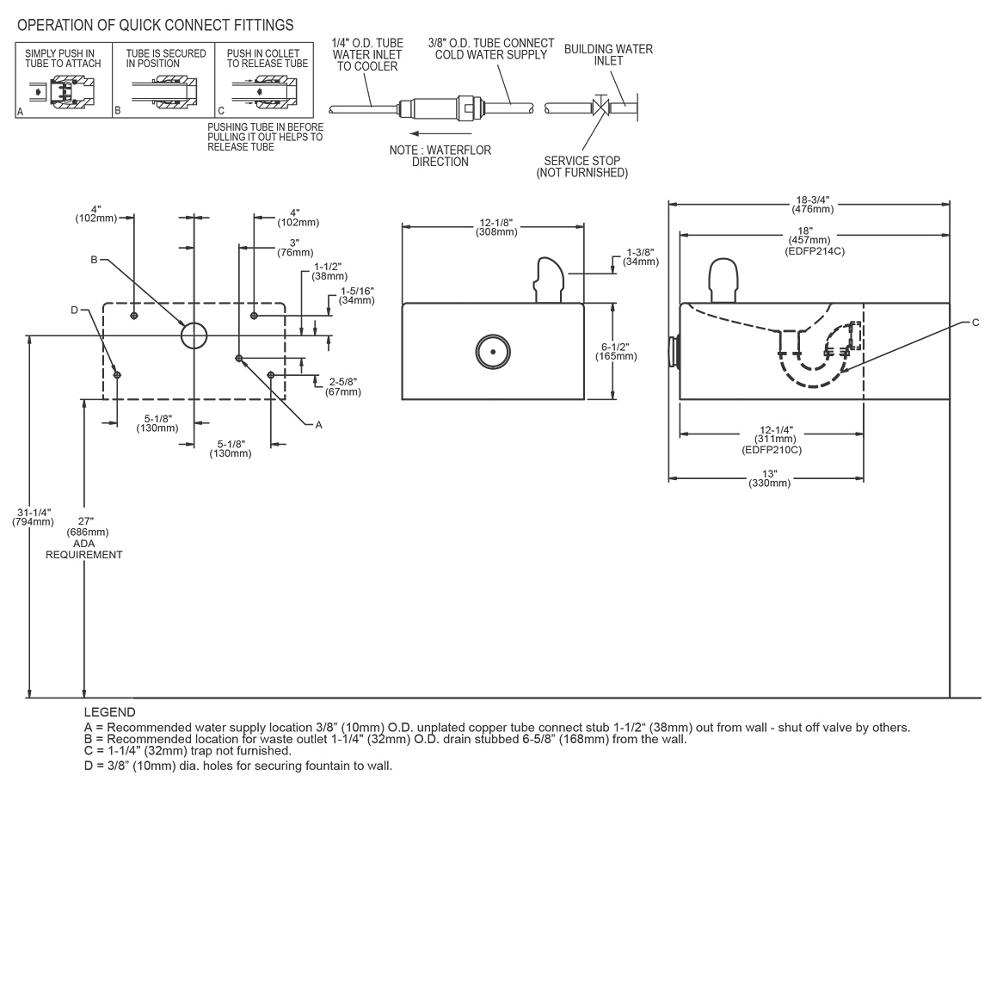

Dimensions L: 12-1/8IN
W: 18-3/4IN
H: 6-1/2IN
Bubbler Style Vandal Resistant
Mounting Type Wall Mount (On Wall)
Chilling Capacity Non-refrigerated
Installation Location Indoor + Outdoor
Shipping Dimensions L: 28-11/16IN
W: 21IN
H: 16IN
Shipping Weight 20LB
Included With Product Fountain
ADA Yes
Filtered No
Code Compliance ASME A112.19.3/CSA B45.4
CSA B45.4
NSF 61
NSF 372
Note Glass filler ordered separately.

Resources

PROP 65 WARNING

Configure My Specs

Configure your product to generate spec sheets, BIM files, EPDs, HPDs, and installation instructions - all in a single download. This experience uses local browser storage to save your projects. To avoid losing saved work, do not clear your browser's local storage or cookies. To learn more about Configure My Spec, explore this page.
