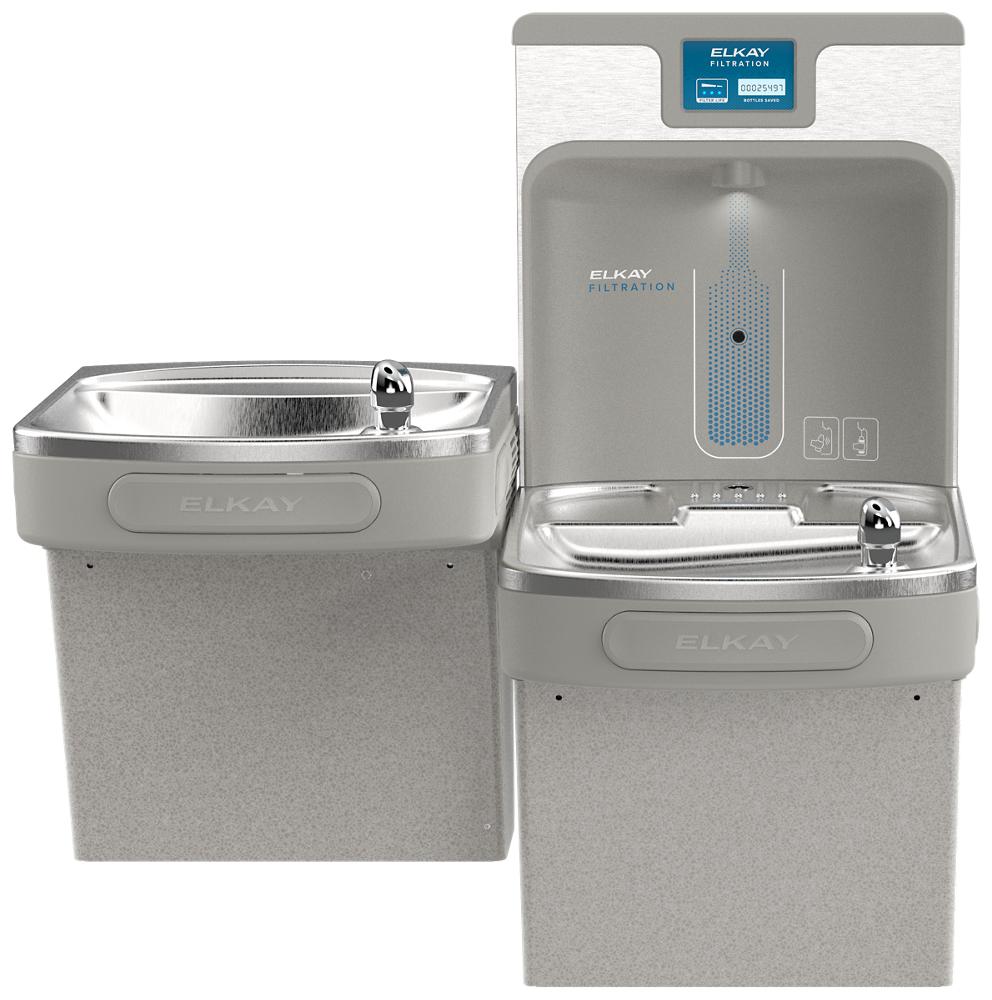

Bottle Filling Station Versatile Bi-Level ADA Cooler Light Gray

Downloads

Specifications

Number of Stations	2
Features	Alcove Light Antimicrobial Automatic Filter Status Reset Energy Savings Filtered Green Ticker™ Hands Free Laminar Flow Quick Filter Change Real Drain Visual Filter Monitor
Power	115V/60Hz
Dimensions	L: 36-3/4" W: 19" H: 39-1/2"
Bubbler Style	Vandal Resistant
Mounting Type	Wall Mount (On Wall)
Chilling Capacity	8.0 GPH
Installation Location	Indoor
Shipping Dimensions	L: 20-1/2" W: 19-11/16" H: 38-1/4"
Shipping Weight	104 LBS
Included With Product	Water Cooler Bottle Filler Filter
ADA	Yes
Filtered	Yes
Code Compliance	ASME A112.19.3/CSA B45.4 CSA B45.4 CSA C22.2 No. 120 NSF 42 NSF 53 NSF 401 UL 399 FCC & ISED NSF 61 NSF 372
Note	Requires VERSATILEBFKIT accessory to move the bottle filler to the left side. Retrofit accessory, plumbSMART Gateway, and Account required for cloud connection.

Description

The Elkay ezH2O® Bottle Filling Station delivers a clean quick water bottle fill and enhances sustainability by minimizing our dependency on disposable plastic bottles. Complete cooler and bottle filling station in a consolidated space saving ADA compliant design. NEW Versatile Bi-Level cooler design allows for standard cooler installation of high-left/low-right or the alternate reverse cooler installation.

Features

Touchless, sensor activation (bottle filler) designed for easy use; easy-to-operate push-bar activation (bubbler)
All metal, vandal-resistant bubbler with chrome-plated integral hood guard to prevent contamination from other users, airborn deposits and tampering
Hermetically sealed refrigeration system provides chilled water to satisfy thirst
Fill rate is 1.1 GPM. Laminar flow provides clean fill with minimal splash. Real drain system eliminates standing water
Visual filter monitor with LED filter status indicator for when filter change is necessary
FillSafe recognition automatically recognizes new filter and resets LED lights to blue
The included 6,000-gallon filter is tested and certified to NSF 42, 53 and 401 for lead, microplastics, Class 1 particulate, chlorine taste and odor reduction
Green Ticker™ informs user of number of 20 oz. plastic water bottles saved from waste
Key plastic components are manufactured with silver ion antimicrobial agent helping to provide clean, stain- and odor-free surfaces
Low-energy LED light encourages use, assists with filling dark bottles and illuminates in dark hallways
One-box packaging so the cooler and bottle filler ship together
System automatically recognizes new filter and updates LED lights back to blue
Intuitive series of blue LED filter status lights accurately displays filter capacity, providing peace of mind to all users that system is properly filtering contaminants
Connected-ready; use our retrofit accessory to set up wireless monitoring, track water usage and more. Accessory sold separately
