LZSTL8WSSP-W1

Enhanced Connected Bottle Filler & Bi-Level ADA Cooler Refrigerated Stainless High Capacity Lead Drop Down Wrapper

$4,498.00 (USD)

Actual selling price may vary
Where to Buy Contact Us Order Chip Samples Install Services
Number of Stations 2
Features Antimicrobial
Automatic Filter Status Reset
Chilled Water
Cloud Connected Device
Energy Savings
FillSafe™
Filtered
Green Ticker™
Hands Free
Laminar Flow
New Offering
Quick Filter Change
Real Drain
Visual Filter Monitor
Power 115V/60Hz
Dimensions L: 36-3/4"
W: 19"
H: 39-1/2"
Bubbler Style Flexi-Guard ® Safety Bubbler
Mounting Type Wall Mount (On Wall)
Chilling Capacity 8.0 GPH
Installation Location Indoor
Application Residential/Multi-Family
Shipping Dimensions L: 20-1/2"
W: 19-11/16"
H: 38-1/4"
Shipping Weight 106 LBS
Included With Product Bottle Filler
Water Cooler
Filter
ADA Yes
Filtered Yes
Code Compliance ASME A112.19.3
CSA B45.4
CSA C22.2 No. 120
NSF 42
NSF 53
NSF 401
UL 399
FCC & ISED
NSF 61
NSF 372
Note Requires accessory VERSATILEBFKIT to move the bottle filler to the left side. One-Box Packaging.

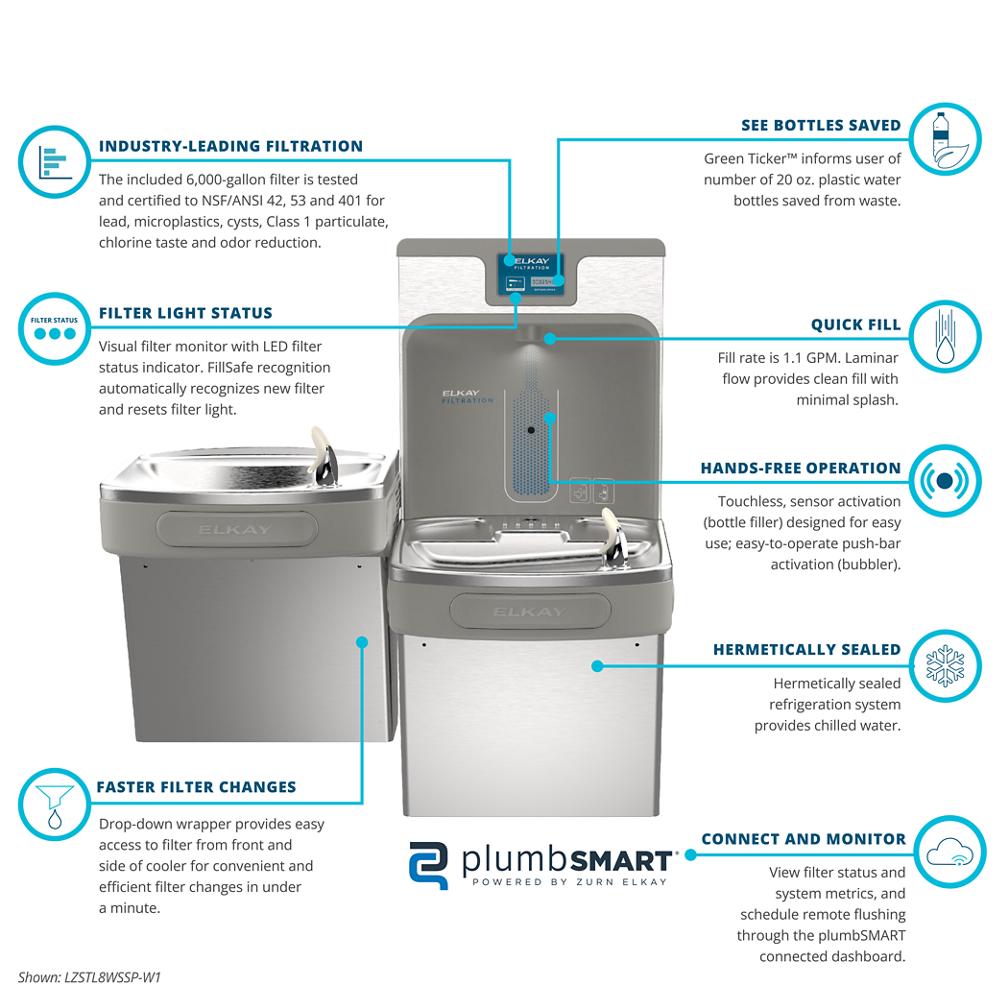

All the benefits of a bottle filling station, made even smarter. Offer fresh, filtered water and track stats across every unit, whether it’s a building or a campus. Easy-to-use dashboards display Bottles Saved counts, filter status and water usage. Facility managers can also schedule flushing events to keep lines cleaner and help prevent waterborne illness. It’s an ideal solution for large offices, airports, colleges and public facilities. Uses plumbSMART software powered by Zurn, which allows facility managers to track water usage and fixture status across a variety of connected plumbing products.

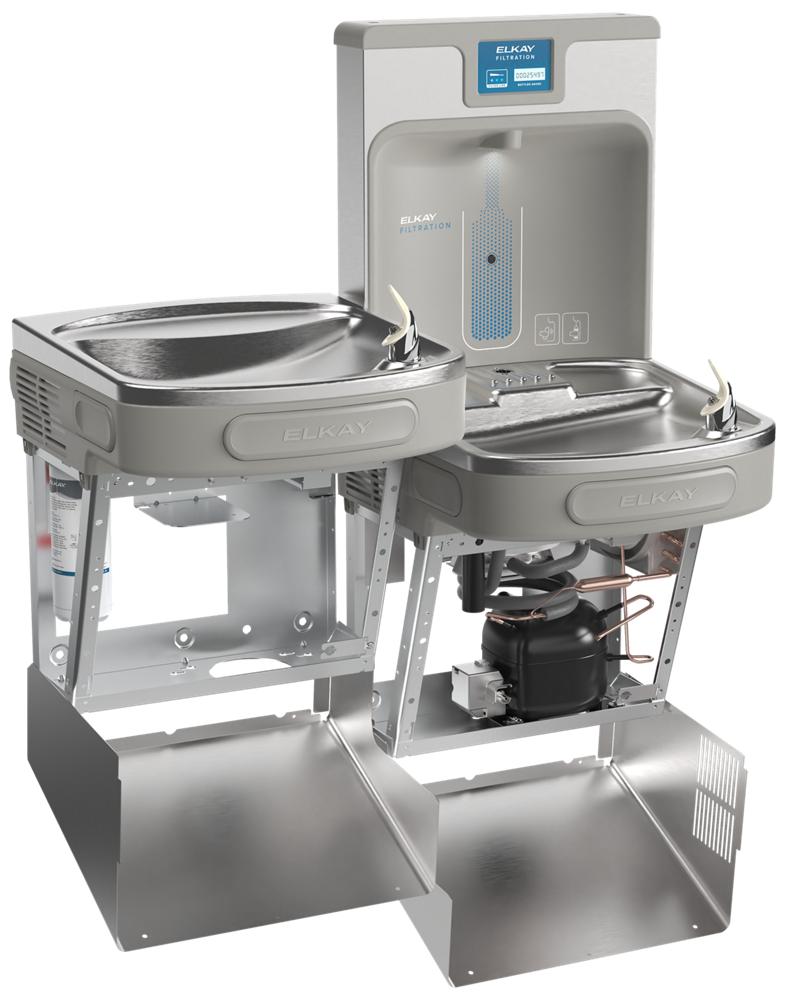

  • Drop-down wrapper provides easy access to filter from front and side of cooler for convenient and efficient filter change in under a minute
  • The included 6,000-gallon filter is tested and certified to NSF 42, 53 and 401 for lead, microplastics, Class 1 particulate, chlorine taste and odor reduction
  • Connected dashboard lets facility managers monitor filter status across all units, making it easier to plan and anticipate filter replacements
  • Schedule flushing events from your desktop, with automatic record-keeping to ensure compliance and safety
  • Save time and effort by viewing Bottles Saved across all units in the building or campus
  • Understand the volume of water consumed vs wasted at a glance, across all connected units
  • Touchless, sensor activation (bottle filler) designed for easy use; easy-to-operate push-bar activation (bubbler)
  • Hermetically sealed refrigeration system provides chilled water
  • Fill rate is 1.1 GPM. Laminar flow provides clean fill with minimal splash. Real drain system eliminates standing water
  • Intuitive series of blue LED filter status lights accurately displays filter capacity, providing peace of mind to all users that system is properly filtering contaminants
  • System automatically recognizes new filter and updates LED lights back to blue
  • Green Ticker™ informs user of number of 20 oz. plastic water bottles saved from waste
  • Key plastic components are manufactured with silver ion antimicrobial agent helping to provide clean, stain- and odor-free surfaces
  • Low-energy LED light encourages use, assists with filling dark bottles and illuminates in dark hallways
  • One-box packaging so the cooler and bottle filler ship together
  • Connected-ready; use our retrofit accessory to set up wireless monitoring, track water usage and more. Accessory sold separately
