LMABFWS-RF

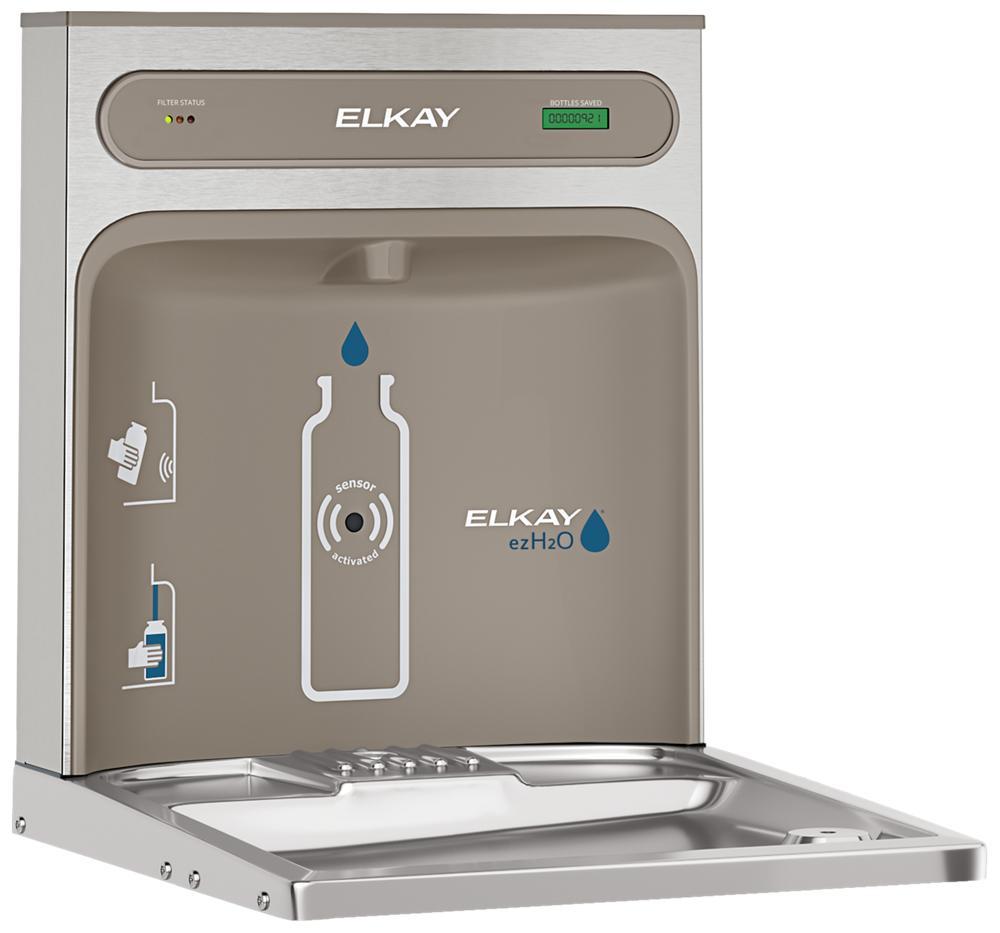

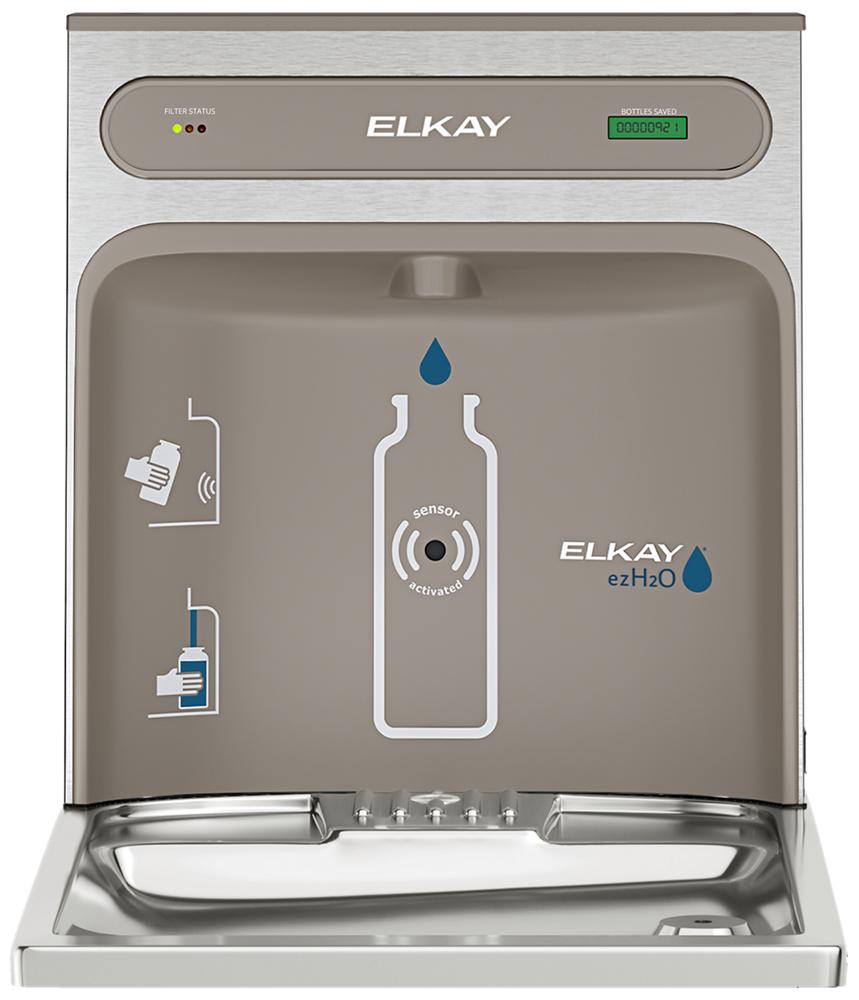

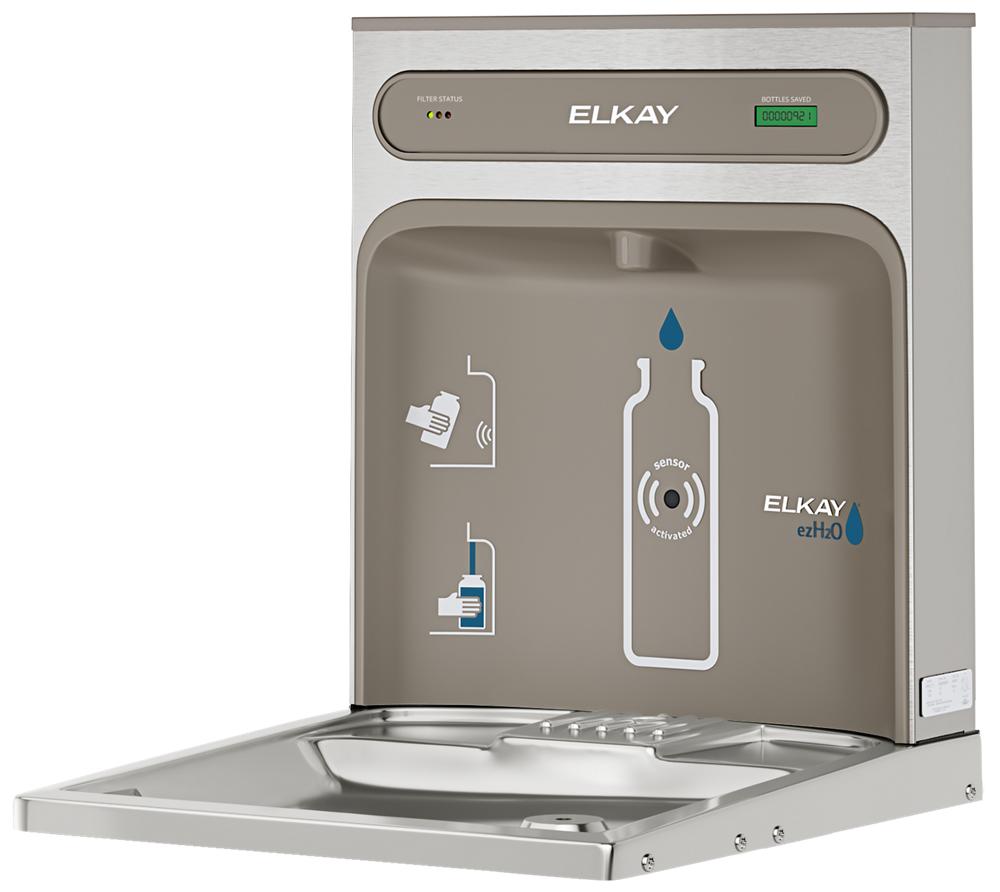

ezH2O® RetroFit Bottle Filling Station Kit for EMAB Family Filtered Non-Refrigerated

$1,716.00 (USD)

Actual selling price may vary
The Elkay EZH2O® Bottle Filling Station delivers a clean quick water bottle fill and enhances sustainability by minimizing our dependency on disposable plastic bottles. Designed to retrofit existing 115V pushbar-activated EMABF style water coolers - includes new basin and drain. Bottle Filler features sanitary no-touch sensor activation with automatic 20-second shut-off timer.
Read More
Spec + Install + BIM Where to Buy Configure My Specs
  • Touchless, sensor-activated bottle filler, designed for easy use; retrofits existing EMABF 115V style coolers
  • Fill rate is 1.5 GPM
  • Visual filter monitor with LED filter status indicator for when filter change is necessary
  • The 3,000-gallon filter is tested and certified to NSF/ANSI 42 and 53 for the reduction of lead, cysts, Class I particulates, and chlorine taste and odor
  • Green Ticker™ informs user of number of 20 oz. plastic water bottles saved from waste
  • Laminar flow provides clean fill with minimal splash
  • Silver ion antimicrobial protection on key plastic components to inhibit the growth of mold and mildew
  • Real drain system eliminates standing water
  • Flexi-Guard bubbler provides a flexible antimicrobial mouth guard that protects against injury and microorganisms from growing on it
  • Rated for indoor use
...more

Specifications

Material Stainless Steel
Number of Stations 1
Features Antimicrobial
Filtered
Green Ticker™
Hands Free
Laminar Flow
Real Drain
Visual Filter Monitor
Power 115V/60Hz
Dimensions L: 17-7/8IN
W: 3-9/16IN
H: 18-7/8IN
Bubbler Style No Bubbler
Mounting Type Wall Mount (On Wall)
Chilling Capacity Non-refrigerated
Installation Location Indoor
Shipping Dimensions L: 19-7/8IN
W: 11-1/2IN
H: 23-3/4IN
Shipping Weight 32LB
Included With Product Retrofit Bottle Filler
Basin with Drain Assy
Filter
ADA Yes
Filtered Yes
Code Compliance CSA C22.2 No. 120
NSF 42
NSF 53
NSF 401
UL 399
NSF 61
NSF 372
Note Need product compatibility info? Find retrofit compatibility guide under the product downloads section.
