RFEZF100SS

EZ Retrofit Frame Single Stainless Steel

$990.00 (USD)

Actual selling price may vary

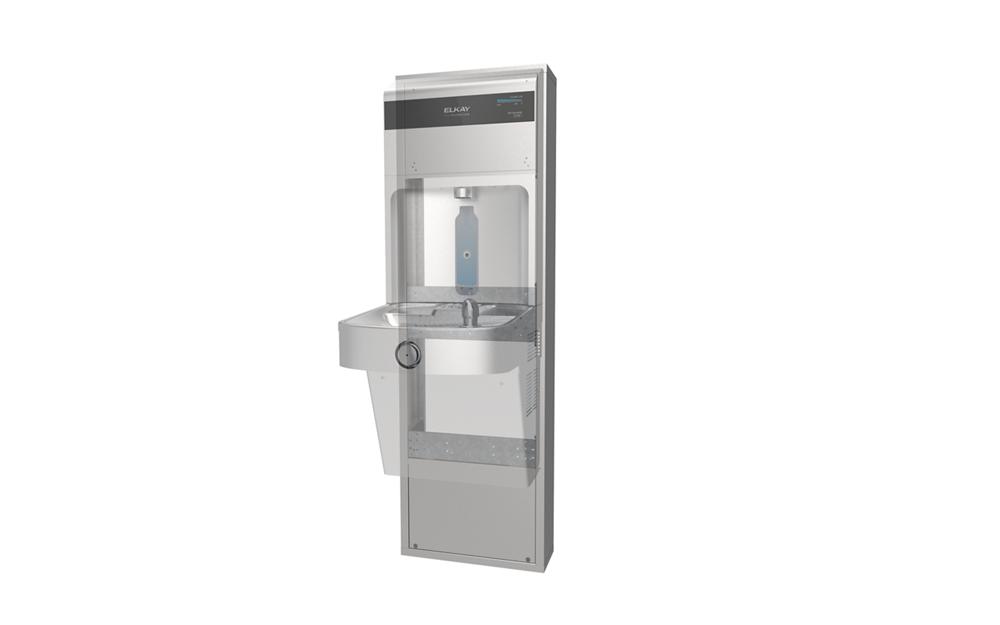

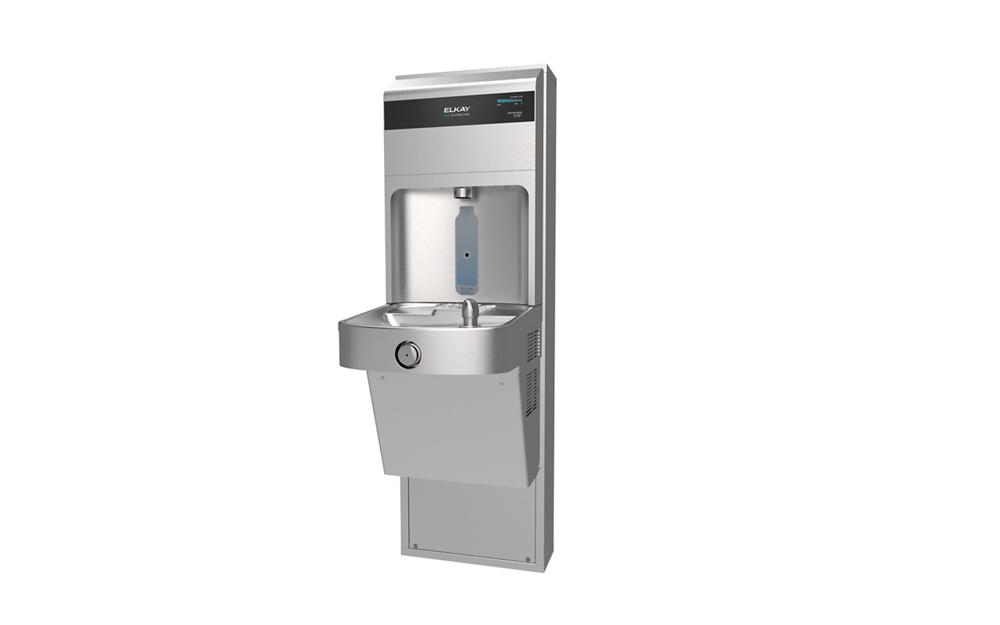

Designed to simplify installation and improve consistency, the EZ Frame for Elkay® drinking fountains provides a faster, cleaner, and more reliable way to secure units to the wall. By eliminating field measuring, reducing wall damage, and ensuring precise alignment, the frame helps installers complete jobs efficiently while minimizing rework. Ideal for retrofit applications, it creates a solid mounting foundation that saves time, reduces labor costs, and delivers a professional finish every time.
Read More

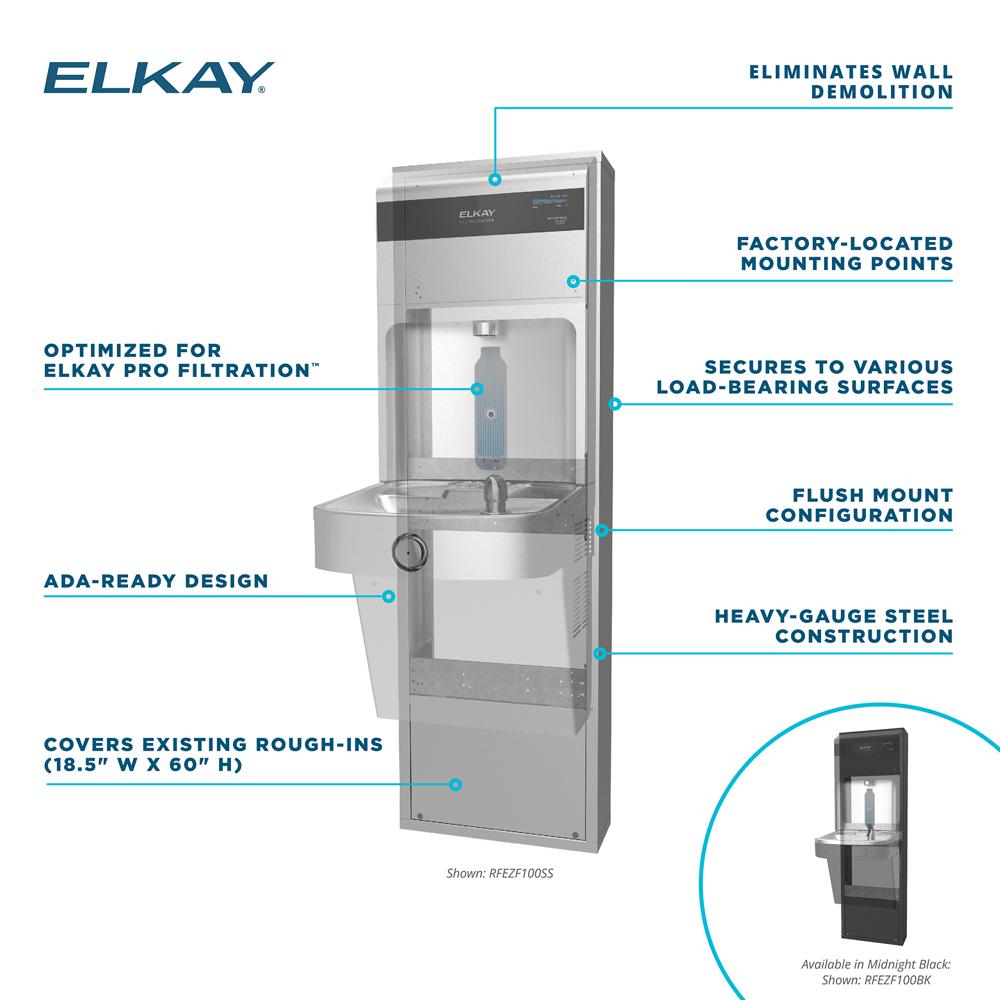

  • Streamlines wall prep and installation, helping installers complete new‑install projects faster and with less labor
  • Improves first‑time accuracy with factory‑located mounting points, eliminating on‑site measuring and reducing installation errors
  • Provides a rigid, reinforced mounting surface engineered for long‑term stability
  • ADA‑Ready design helps ensure Elkay® fountains and bottle fillers meet accessibility requirements when installed correctly
  • Installs directly onto concrete block, brick, or stud walls, offering flexibility across a wide range of building types
  • Simplifies coordination between trades by standardizing mounting locations and reducing layout variability

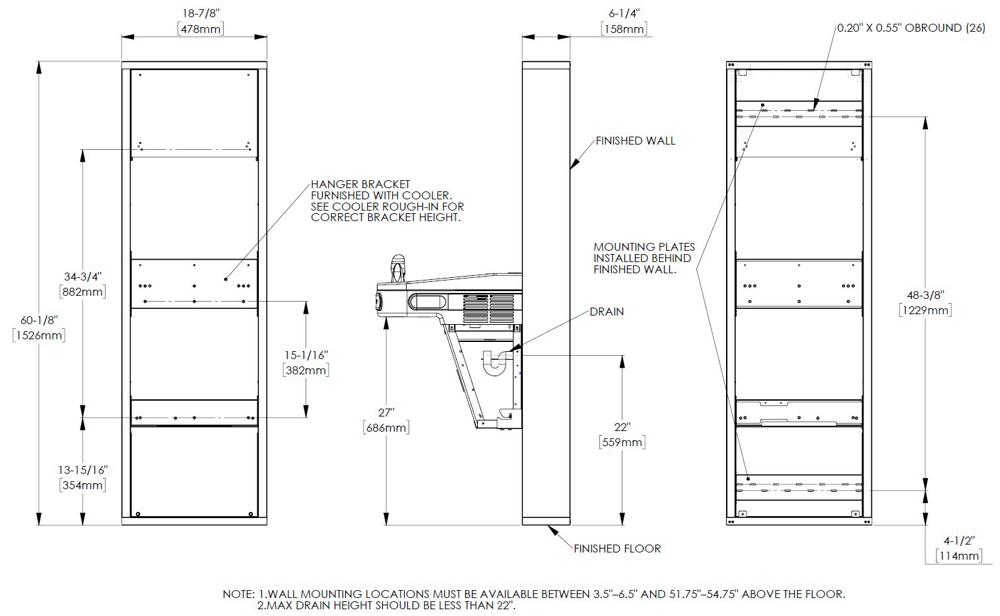

  • Compatible with wall drains positioned 22" or less from the finished floor to support proper drainage
  • Optimized for Elkay® Pro Filtration™ Bottle Filling Stations and compatible with Elkay® Enhanced and Vandal Resistant on‑wall units

Specifications

Material Stainless Steel
Number of Stations 1
Power No Electrical Required
Dimensions L: 6-1/4IN
W: 19IN
H: 61IN
Mounting Type Wall Mount (On Wall)
Installation Location Indoor + Outdoor
Shipping Dimensions L: 7IN
W: 21IN
H: 63IN
Shipping Weight 43LB
Included With Product Mounting Frame
Panels and hardware
Note Ships in One Box; Mounting Hardware Not Included
