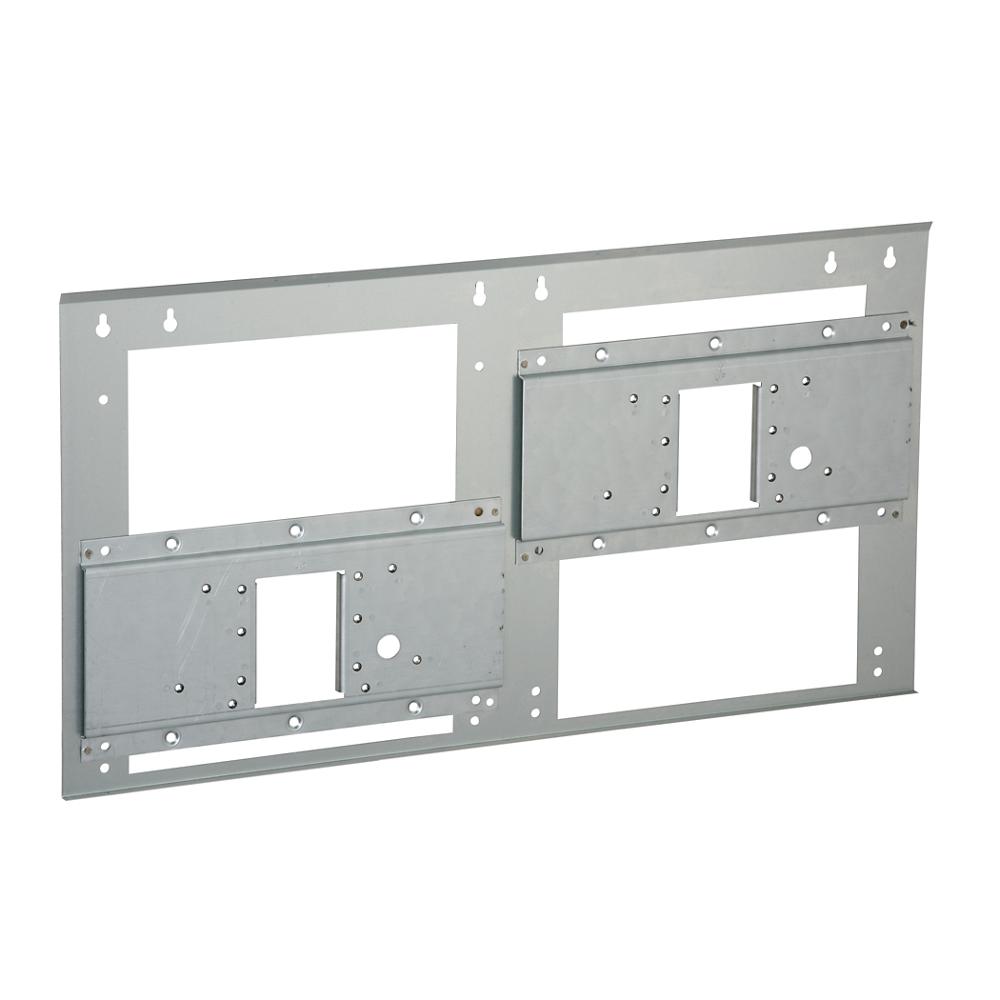

MP20RA

Surface Mounting Plate for Reversed Bi-level On-wall Non-refrigerated Fountains

$565.00 (USD)

Actual selling price may vary
We carry a range of mounting frames, plates and other installation support systems to properly position and enhance our refrigerated and non-refrigerated bottle filling stations, water coolers, drinking fountains and chillers of all configurations.
Read More
Spec + Install + BIM Where to Buy
  • Reversed two-station surface mounting plate provides additional support for on-wall drinking water model installations
  • Compatible with specific Elkay® non-refrigerated models; see specifications tab for details
  • Mounting frame included with specific SwirlFlo® models
  • Secures directly to a variety of load-bearing surfaces
  • Refer to end product for ADA compliance information
  • Built in the USA
...more

Specifications

Material Galvanized Steel
Number of Stations 2

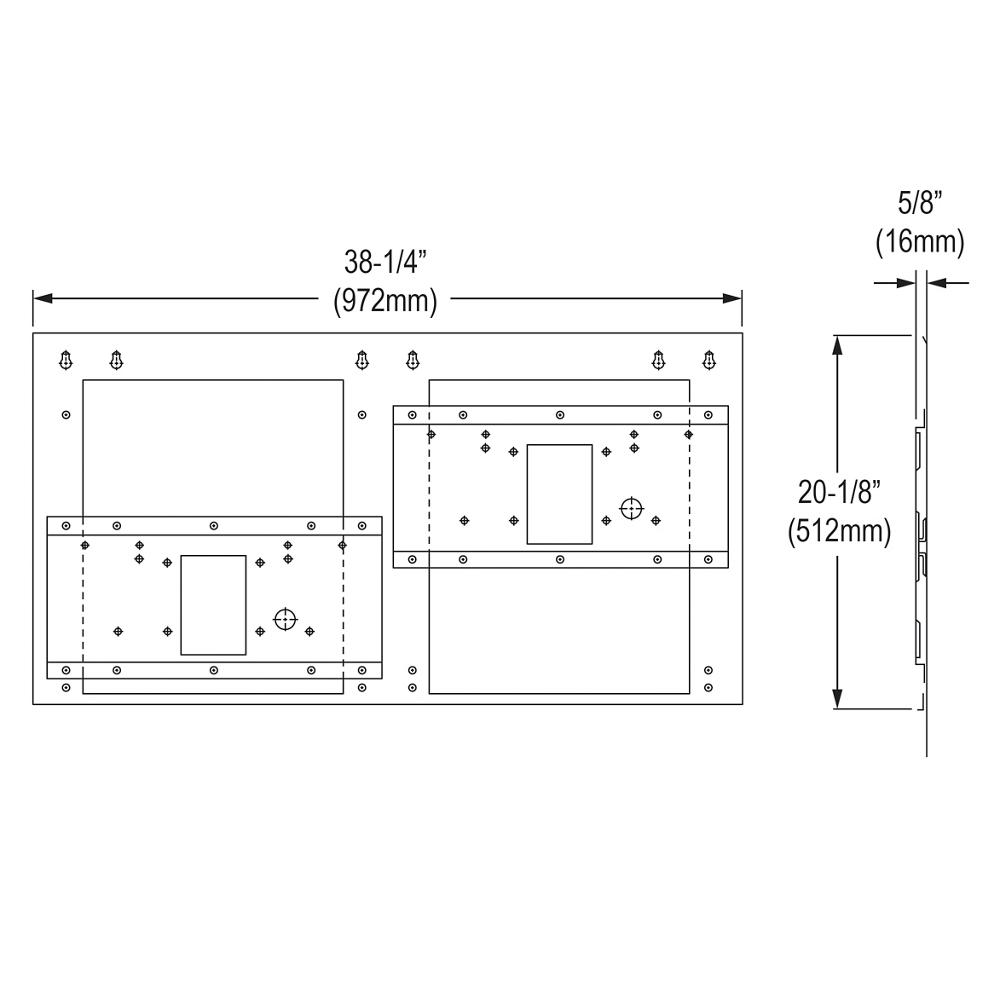

Dimensions L: 38-1/4IN
W: 5/8IN
H: 20-1/8IN
Mounting Type Wall Mount (In-Wall Frame/Plate)
Installation Location Indoor
Application Hospitality
Shipping Dimensions L: 42-3/4IN
W: 3IN
H: 24-1/2IN
Shipping Weight 18LB
Included With Product Mounting Frame Assembly
ADA No
Note Mounting frame included with Elkay EDFPB(V)M117FPRAK and EDFPB(V)M117RAK non-refrigerated models.
