MFWS210

Mounting Frame for Bi-level In-wall Refrigerated SwirlFlo® Bottle Filling Stations

$651.00 (USD)

Actual selling price may vary
We carry a range of mounting frames, plates and other installation support systems to properly position and enhance our refrigerated and non-refrigerated bottle filling stations, water coolers, drinking fountains and chillers of all configurations.
Read More
Spec + Install + BIM Where to Buy
  • Two-station mounting frame enables installation of in-wall drinking water models
  • Compatible with specific Elkay® refrigerated models; see specifications tab for details
  • Mounting frame included with specific SwirlFlo® models
  • Secures directly to a variety of load-bearing surfaces
  • Refer to end product for ADA compliance information
  • Built in the USA
...more

Specifications

Material Galvanized Steel
Number of Stations 2
Power No Electrical Required

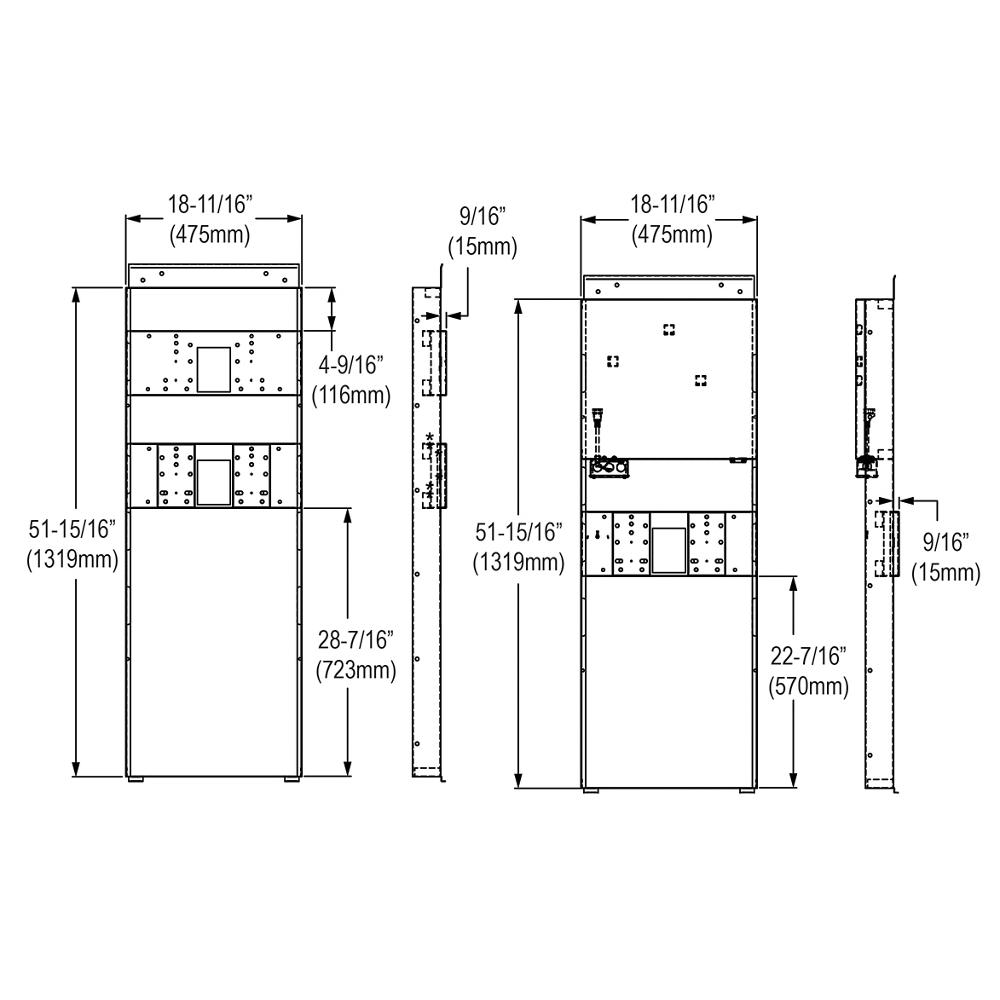

Dimensions L: 18-11/16IN
W: 15-1/2IN
H: 54-15/16IN
Mounting Type Wall Mount (In-Wall Frame/Plate)
Installation Location Indoor
Application Hospitality
Shipping Dimensions L: 59-3/4IN
W: 19-1/8IN
H: 8-1/2IN
Shipping Weight 35LB
Included With Product Mounting Frame Assembly
Note For use with Elkay LZWS-LRPBM28K & EZWS-ERPBM28K refrigerated models.
