MF200

Mounting Frame for Bi-level In-wall Refrigerated Coolers

$531.00 (USD)

Actual selling price may vary
We carry a range of mounting frames, plates and other installation support systems to properly position and enhance our refrigerated and non-refrigerated bottle filling stations, water coolers, drinking fountains and chillers of all configurations.
Read More
Spec + Install + BIM Where to Buy
  • Two-station mounting frame enables installation of in-wall drinking water models
  • Compatible with various Elkay® refrigerated models; see specifications tab for details
  • Mounting frame included with specific SwirlFlo® and Soft Sides® models
  • Secures directly to a variety of load-bearing surfaces
  • Refer to end product for ADA compliance information
  • Built in the USA
...more

Specifications

Material Galvanized Steel
Number of Stations 2

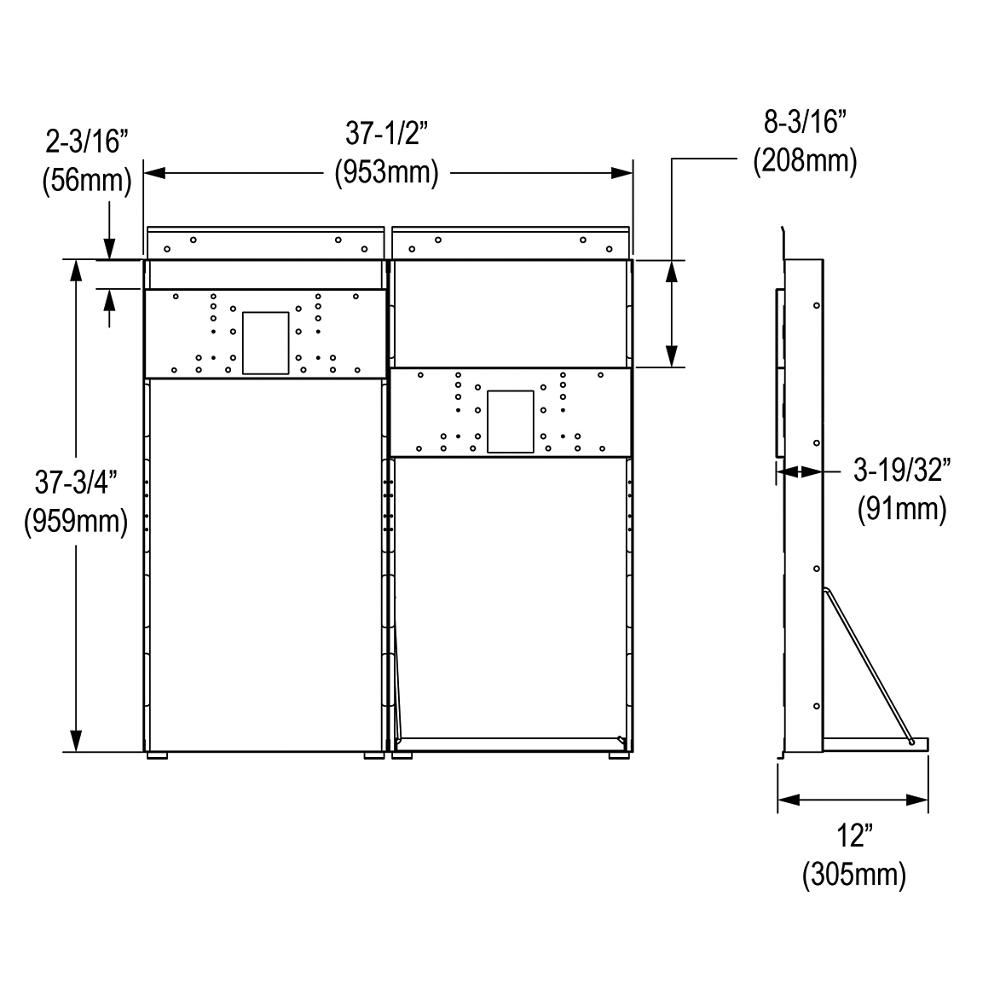

Dimensions L: 37-1/2IN
W: 12IN
H: 37-3/4IN
Mounting Type Wall Mount (In-Wall Frame/Plate)
Installation Location Indoor
Application Hospitality
Shipping Dimensions L: 19IN
W: 9IN
H: 46IN
Shipping Weight 32LB
Included With Product Mounting Frame Assembly
ADA No
Note For use with Elkay ENOB, ERFP, ERO, ERPB, LNTE, LRPB refrigerated bi-level models.
