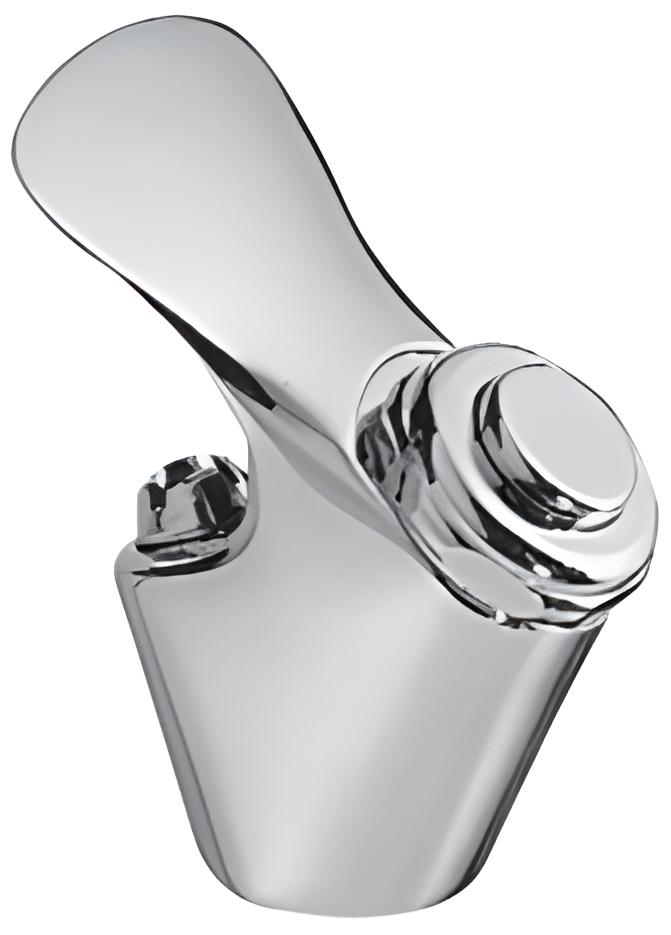

LK142

Push Button Bubbler

$250.00 (USD)

Actual selling price may vary
At Elkay®, we are always looking for ways to make great products even better. Superior quality and popular features allow our customers to find their perfect drinking solutions. Our products are ideal for medical facilities, schools and universities, office buildings, airports, shopping malls, sports arenas and other high-traffic venues, for both indoor and outdoor installations.
Read More
  • Push-button valve bubbler designed so that water never comes in contact with lead-containing materials
  • Built-in adjustable water volume control regulates flow from 20 PSI to 105 PSI
  • Heavy chrome-plated body with a 3/8" (10 mm) NPT connection
  • Requires one 1-1/2" (38 mm) or 1-1/4" (32 mm) faucet hole
  • Optional cover plate (72000408) sold separately
  • Made in USA

Specifications

Material Chrome-plated Brass
Spray Type None
Installation Type Deck-mount

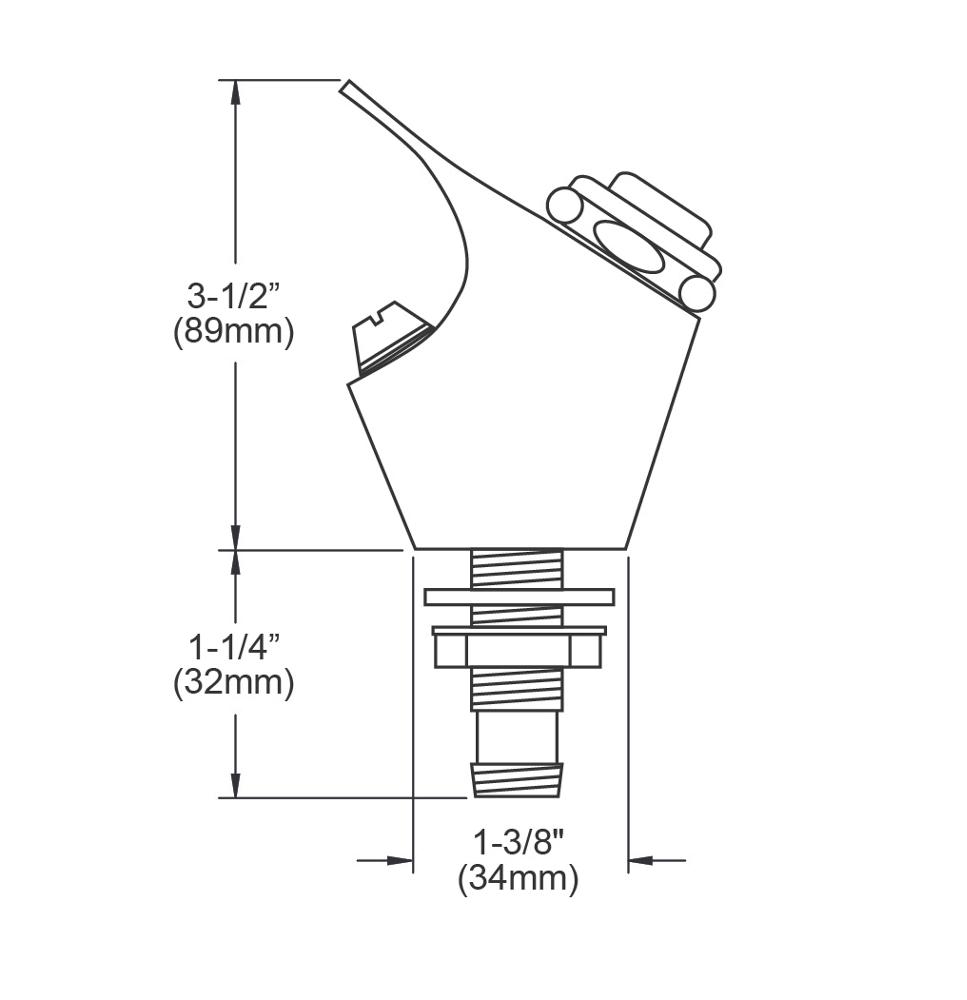

Dimensions L: 1-7/16IN
W: 2-3/8IN
H: 4-3/4IN
Handle Type Push Button
Deck Clearance 1-1/2IN
Spout Reach 13/16IN
Application Hospitality
Spout Type Bubblers + Other
Valve Connection 3/8"-18 NPSM
Shipping Dimensions L: 8IN
W: 5IN
H: 2IN
Shipping Weight 2LB
Included With Product Complete Bubbler Assembly
ADA Yes
Code Compliance ASME A112.18.1
CSA B125.1
NSF 61
NSF 372
Note For use with Elkay EDF15R, EFWC16 models.
