| Material |
Stainless Steel |
|---|---|
| Installation Type |
Sink Kits Undermount |
| Gauge |
16 |
| Sound Deadening |
Full spray sides and bottom with Sides and Bottom pads |
| Number of Bowls |
2 |
| Minimum Cabinet Size |
36" |

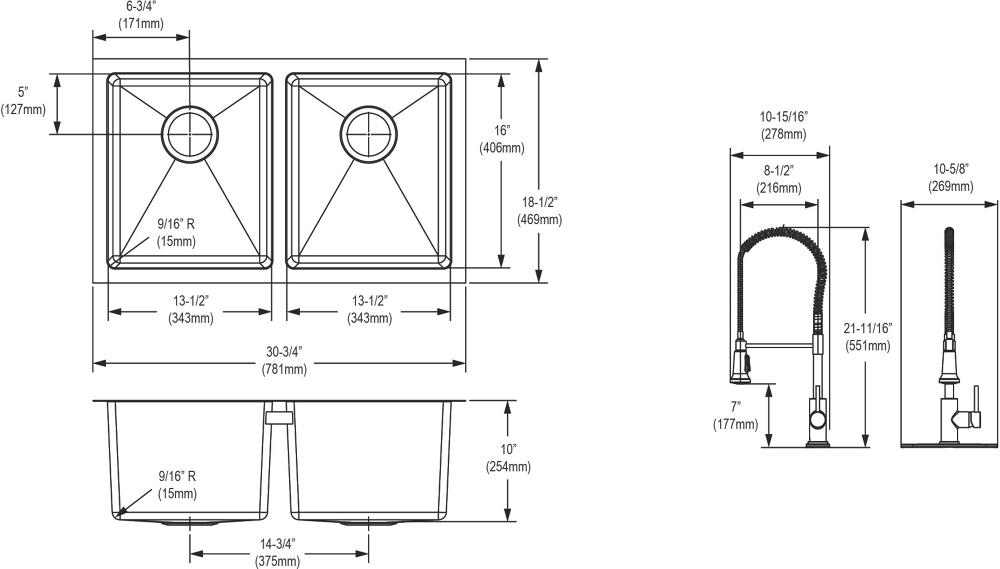

| Dimensions |
L: 30-3/4" W: 18-1/2" H: 10" |
| Bowl 1 Dimensions |
L: 13-1/2" W: 16" H: 10" |
| Bowl 2 Dimensions |
L: 13-1/2" W: 16" H: 10" |
| Drain Size |
3-1/2" |
| Drain Size 2 |
3-1/2" |
| Shipping Dimensions |
L: 37-3/16" W: 25-3/4" H: 11-7/16" |
| Shipping Weight |
51 LBS |
| Included with Product |

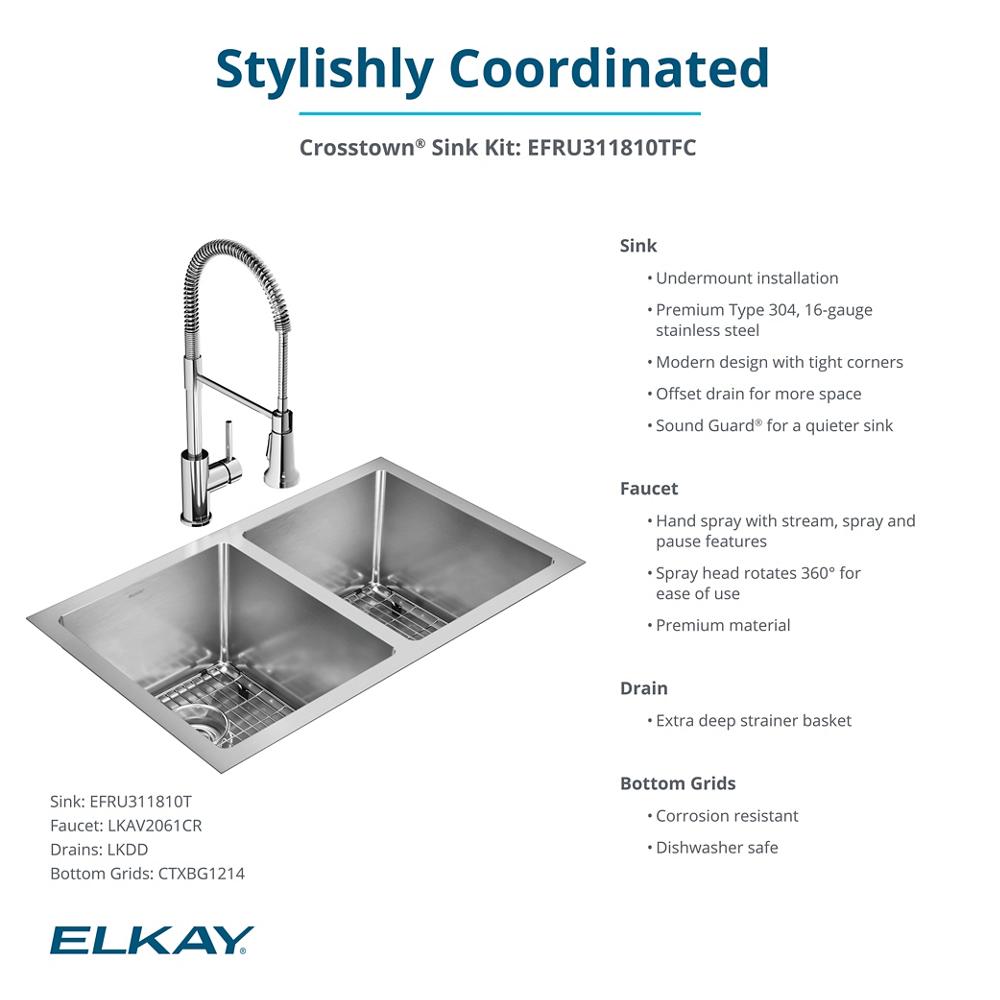

LKAV2061CR Faucet CTXBG1214 Bottom Grids (2) LKDD Deep Strainer Drains (2) |
| Family |
Crosstown |
| ADA |
No |
| Code Compliance Sinks |
ASME A112.19.3/CSA B45.4 |
| Code Compliance Faucets |
ADA & ICC A117.1 ASME A112.18.1/CSA B125.1 CEC NSF 372 (lead free) NSF 61 |
| Code Compliance Accessories |
ASME A112.18.2/CSA B125.2 |
| Room |
Kitchen |
| Note |
Reserve Selection products are sold exclusively, in-store and online, through authorized wholesalers. |

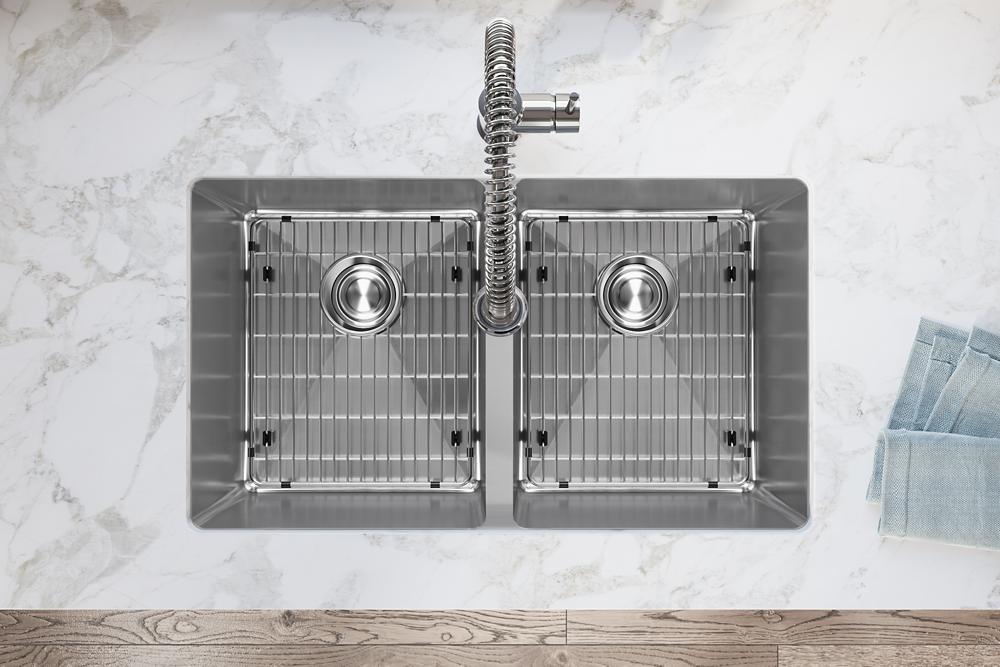

The Elkay Crosstown® collection offers a fresh take on the classic stainless steel sink, combining beauty, function and contemporary design. Tight corners and a flat bottom provide more space inside the sink bowl for stacking and cleaning dishes. The striking geometric shape makes a statement in any home.
