| Material |
Stainless Steel |
|---|---|
| Installation Type |
Sink Kits Undermount |
| Gauge |
16 |
| Sound Deadening |
Full spray sides and bottom with Sides and Bottom pads |
| Number of Bowls |
1 |
| Minimum Cabinet Size |
36" |

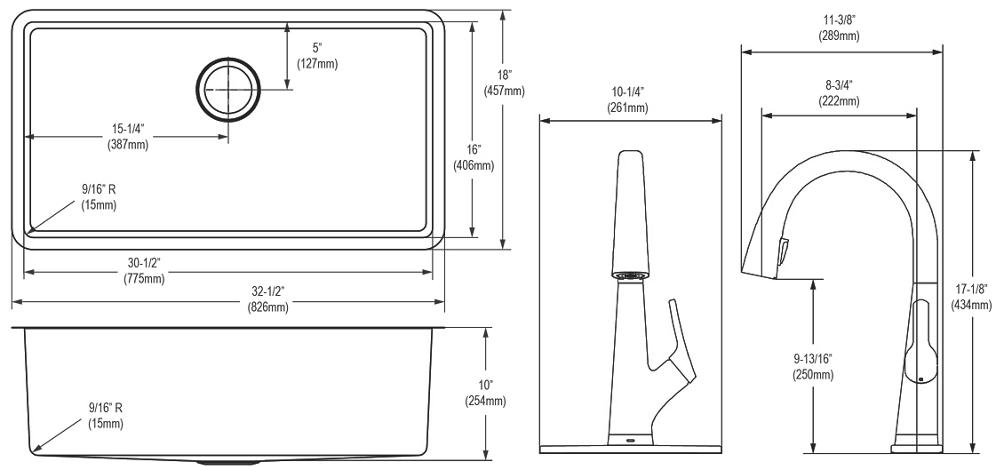

| Dimensions |
L: 32-1/2" W: 18" H: 10" |

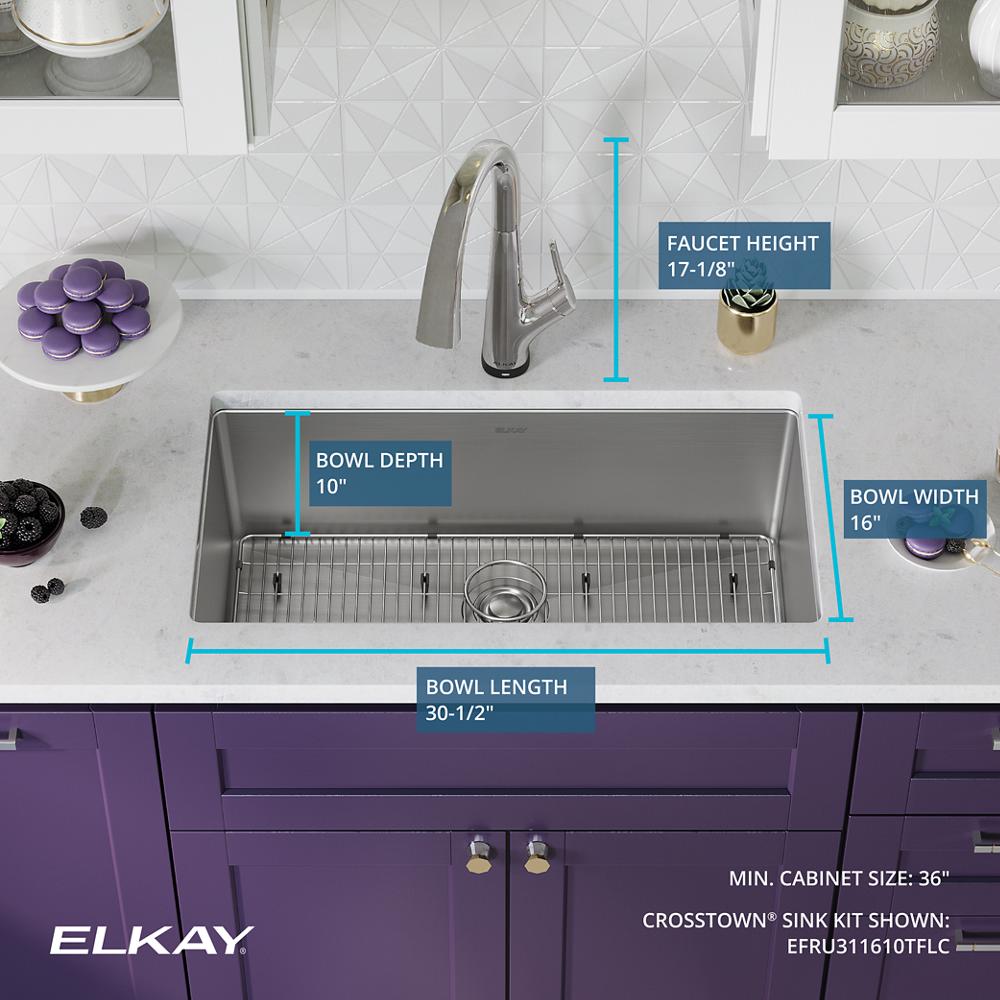

| Bowl 1 Dimensions |
L: 30-1/2" W: 16" H: 10" |
| Drain Size Bowl 1 |
3-1/2" |
| Application |
Kitchen |
| Shipping Dimensions |
L: 37-7/16" W: 26-9/16" H: 15-5/8" |
| Shipping Weight |
32 LBS |

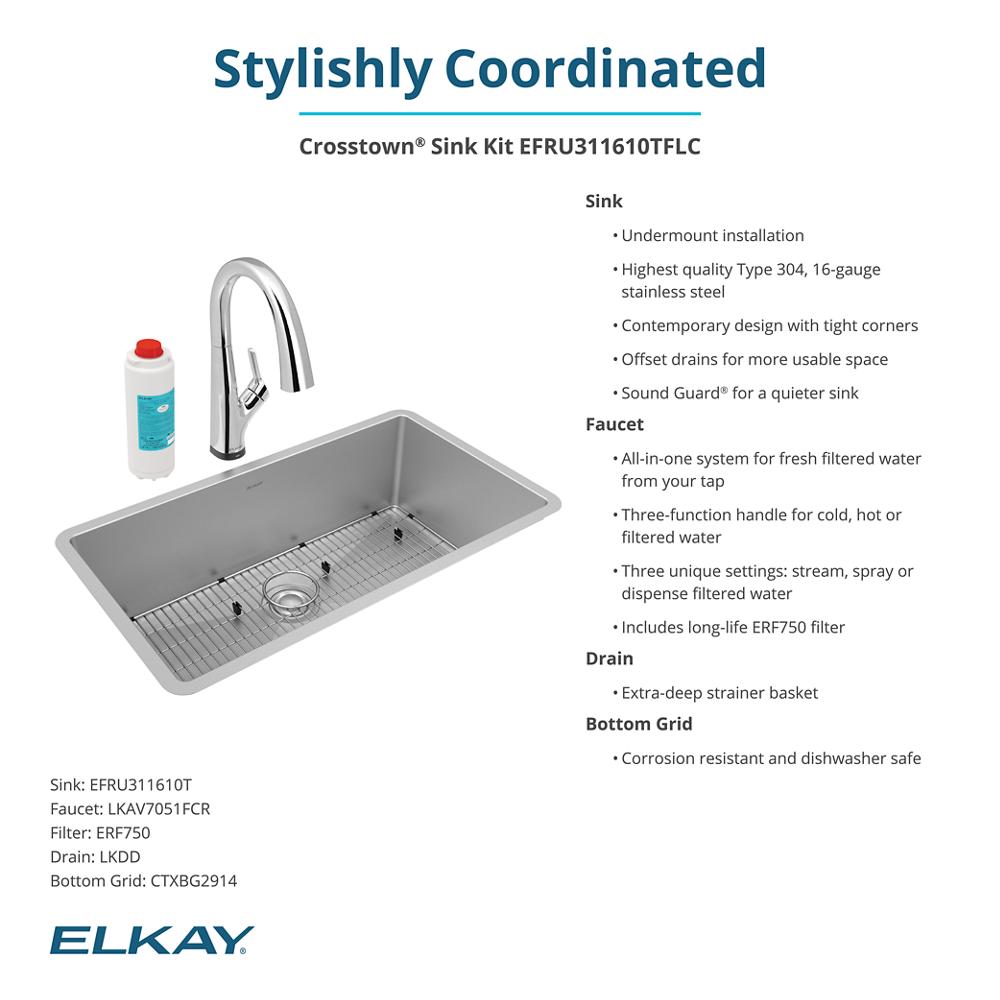

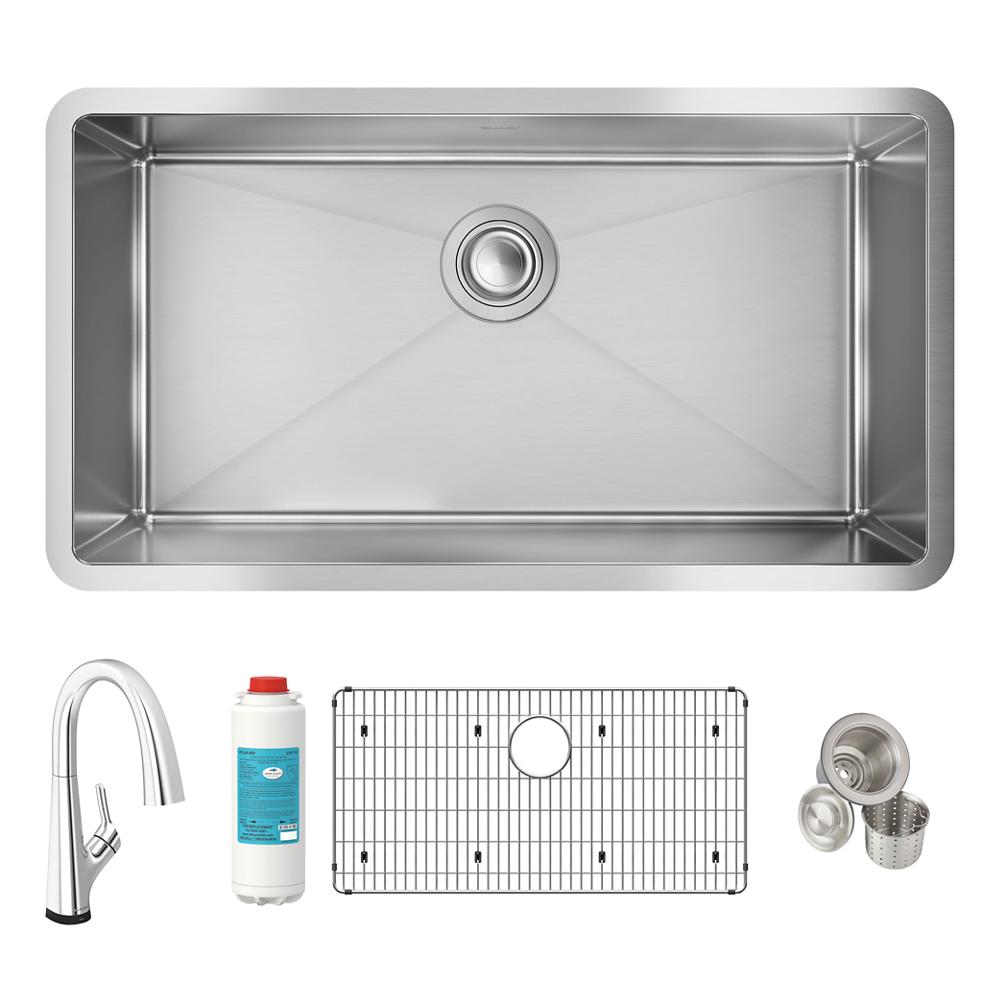

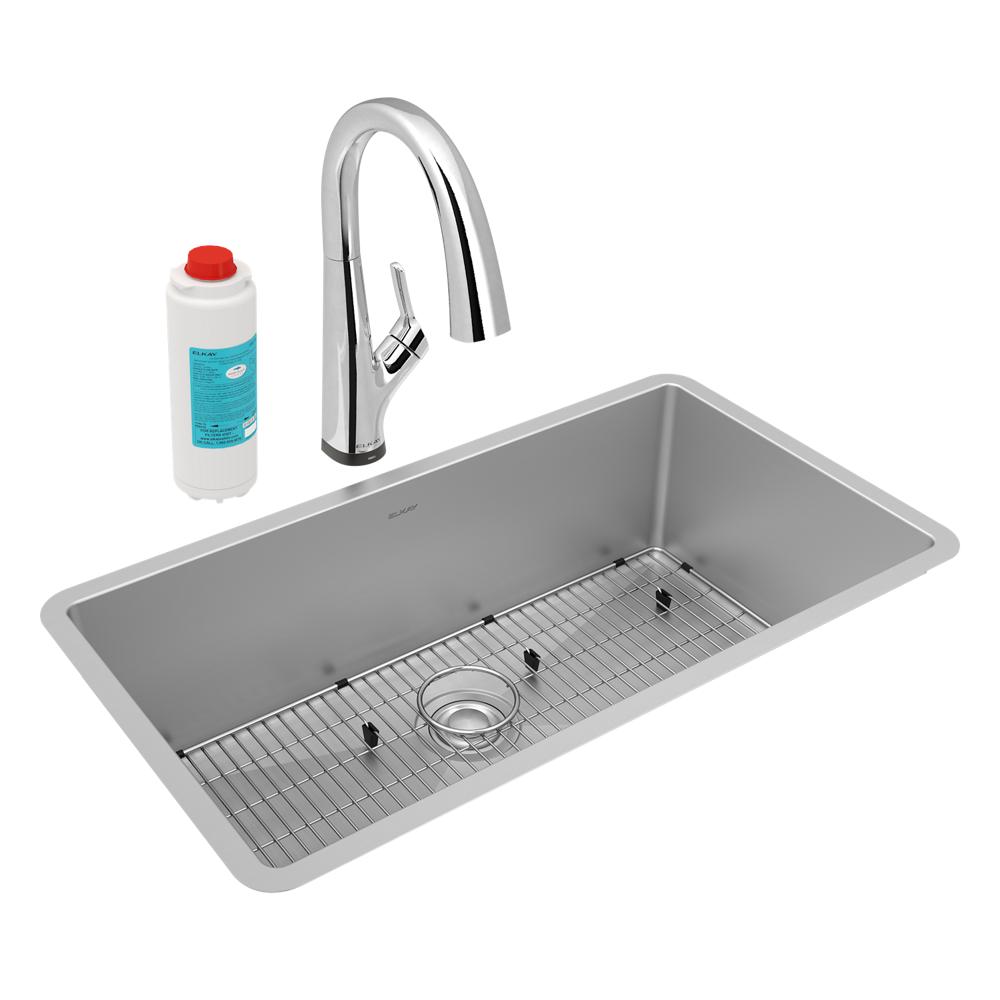

| Included With Product |
LKAV7051FCR Faucet (Filter Included) CTXBG2914 Bottom Grid LKDD Deep Strainer Drain |
| ADA |
No |
| Code Compliance |
ASME A112.19.3 ASME A112.18.1 ASME A112.18.2 CSA B45.4 CSA B125.1 CSA B125.2 NSF 42 NSF 53 NSF 401 cUPC NSF 61 NSF 372 IPC |
| Room |
Kitchen |
| Note |
Reserve Selection products are sold exclusively, in-store and online, through authorized wholesalers. |

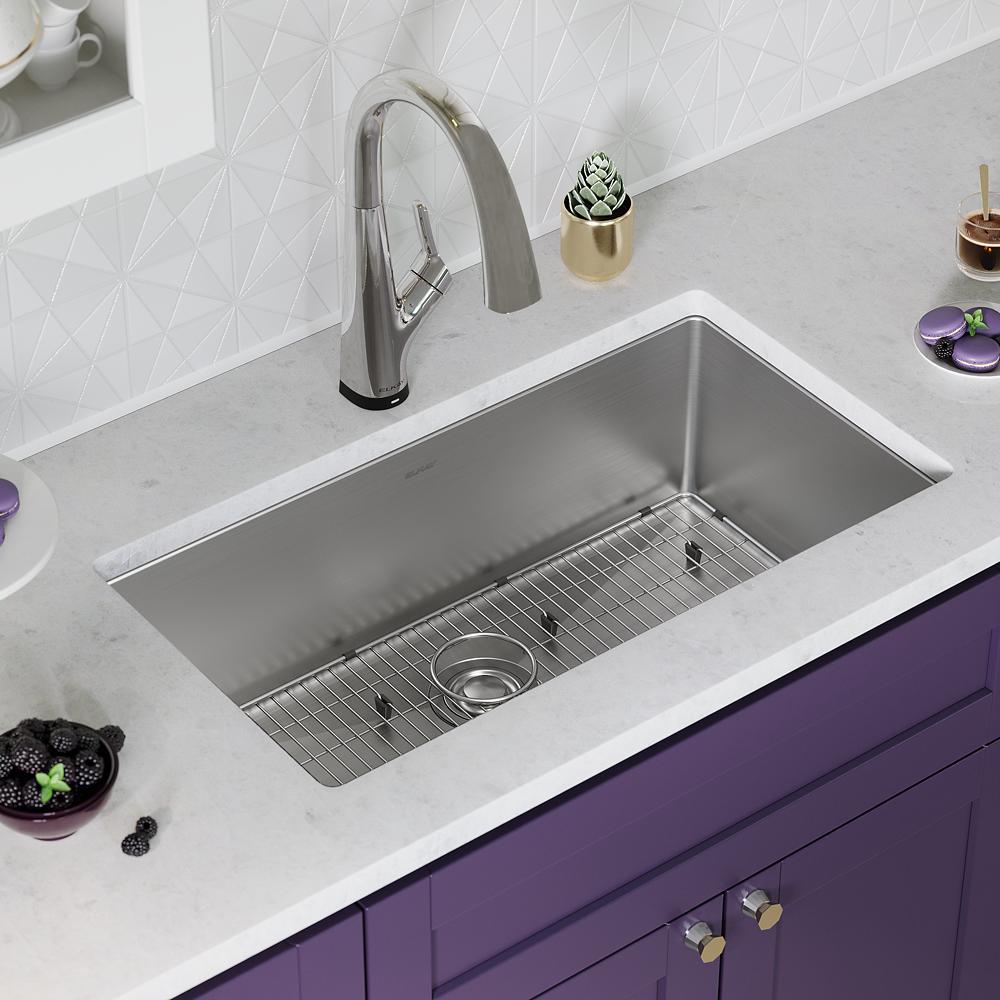

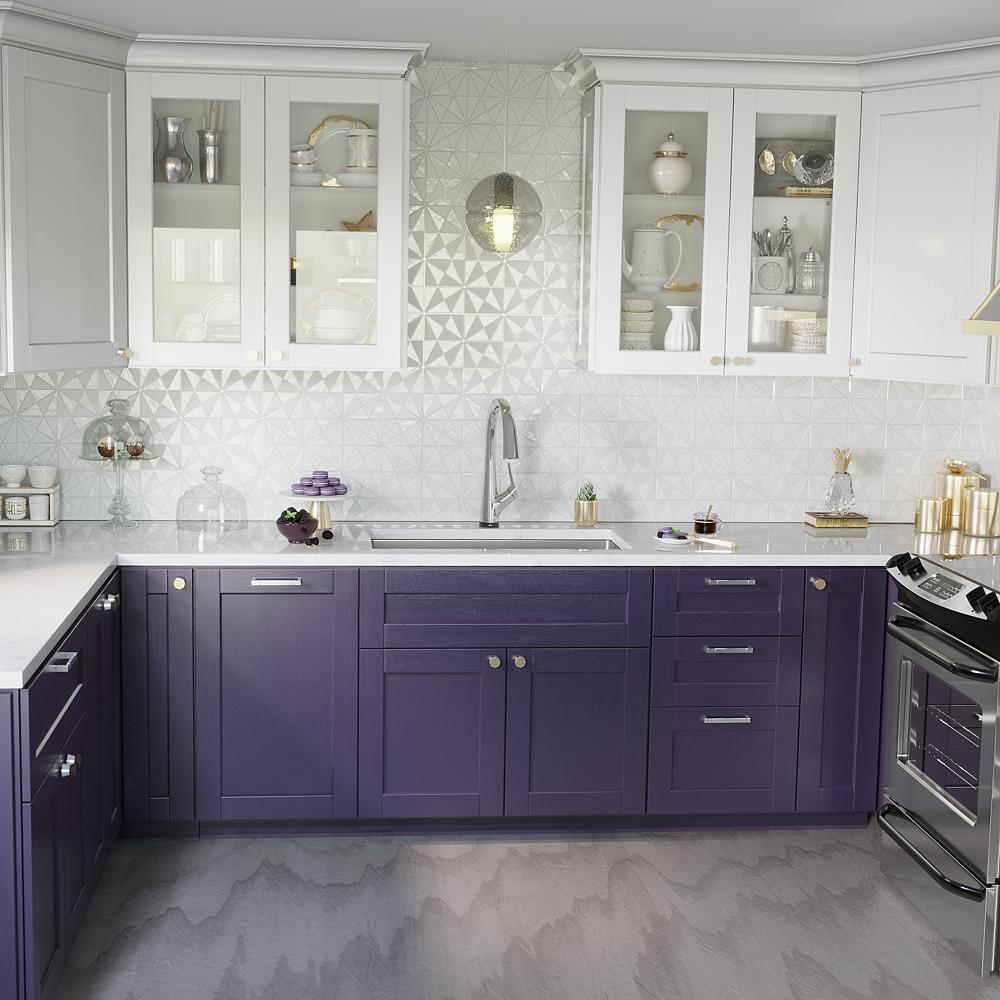

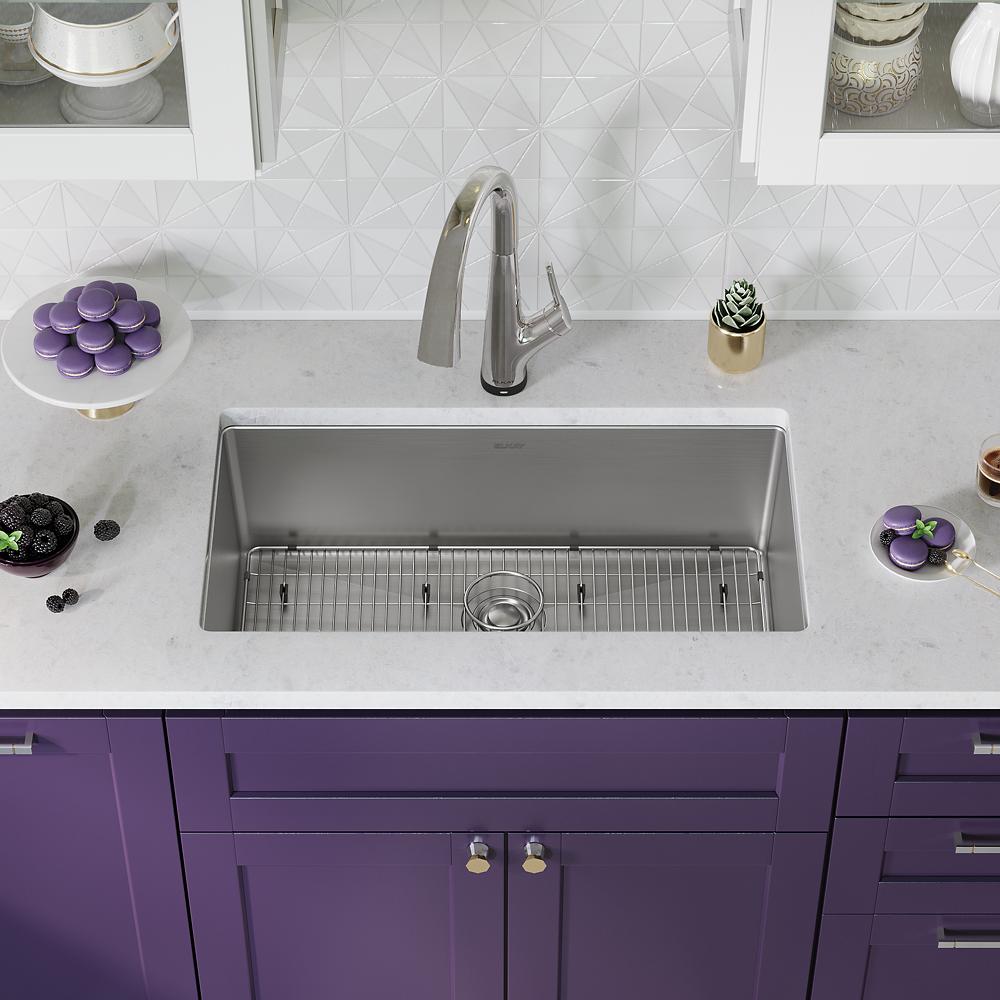

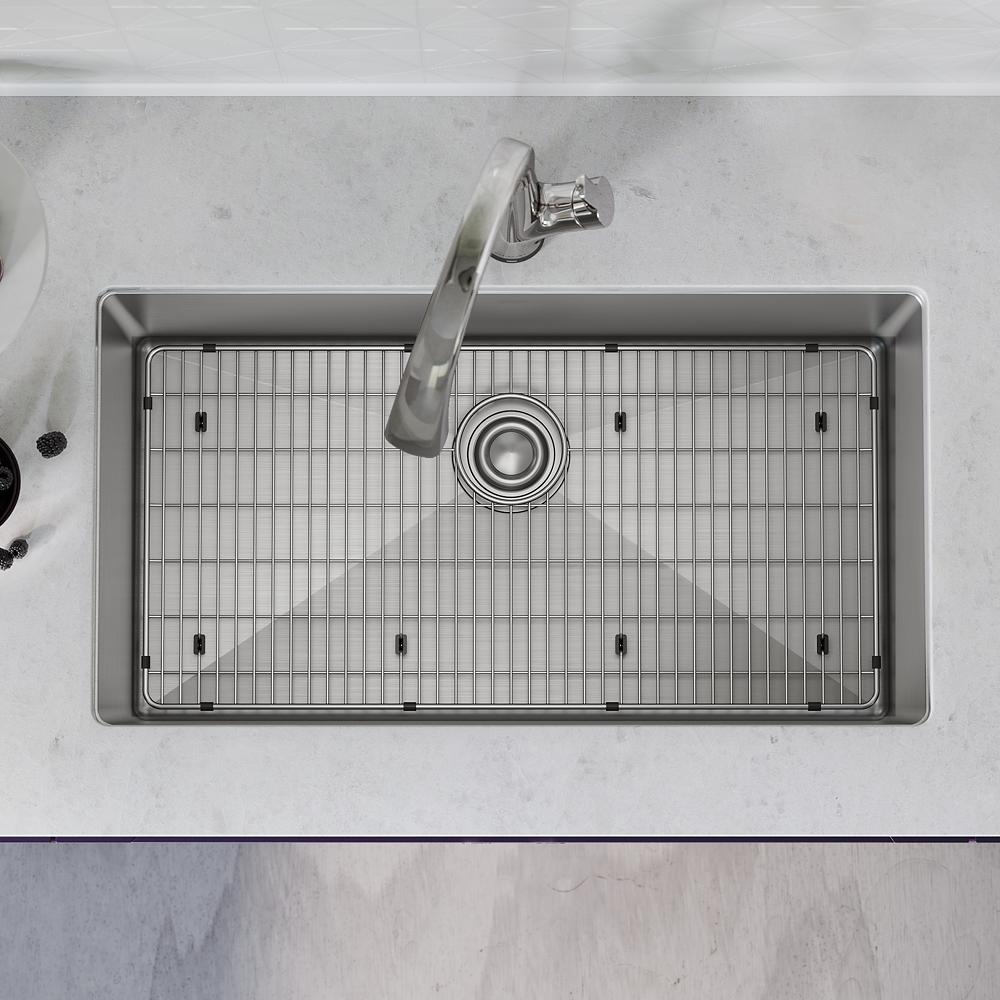

The Elkay Crosstown® collection offers a fresh take on the classic stainless steel sink, combining beauty, function and contemporary design. Tight corners and a flat bottom provide more space inside the sink bowl for stacking and cleaning dishes. The striking geometric shape makes a statement in any home.
