CHS1716LRSC

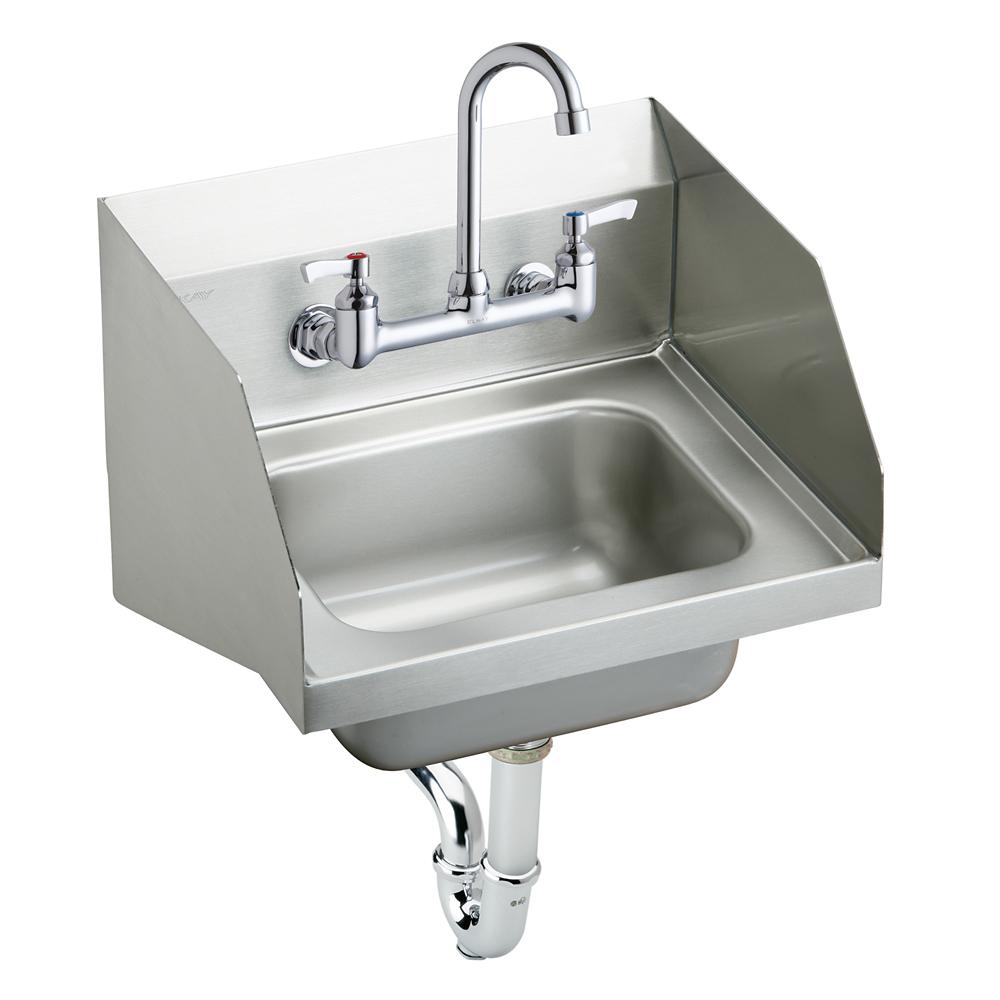

Stainless Steel 16-3/4" x 15-1/2" x 13" Single Bowl Wall Hung Handwash Sink Kit w/Side Splashes

$2,657.00 (USD)

Actual selling price may vary
Where to Buy Contact Us
Material Stainless Steel
Installation Type Wall
Gauge 20
Number of Bowls 1
Minimum Cabinet Size 0"

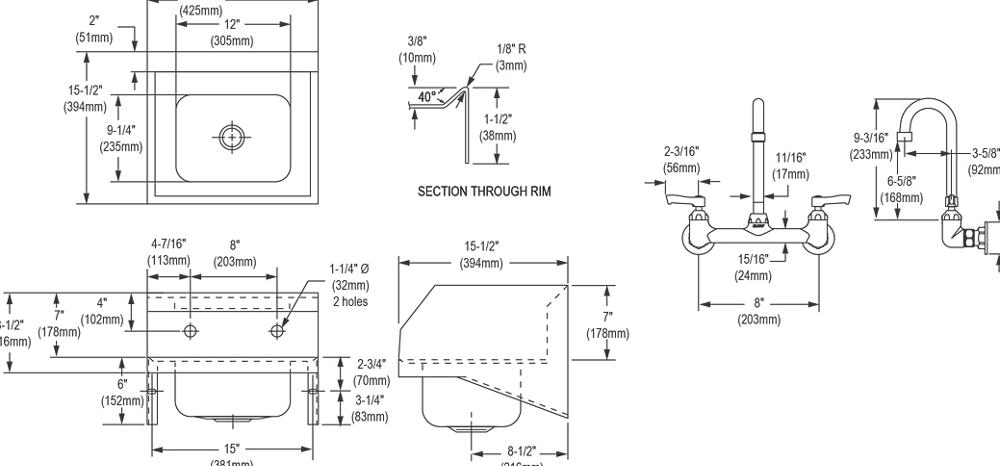

Dimensions L: 16-3/4"
W: 15-1/2"
H: 13"
Bowl 1 Dimensions L: 12"
W: 9-1/4"
H: 6"
Hole Drillings 2
Drain Size Bowl 1 2"
Shipping Dimensions L: 17-1/8"
W: 14-13/16"
H: 19-5/8"
Shipping Weight 23 LBS
Included With Product CHS1716LRS2 sink

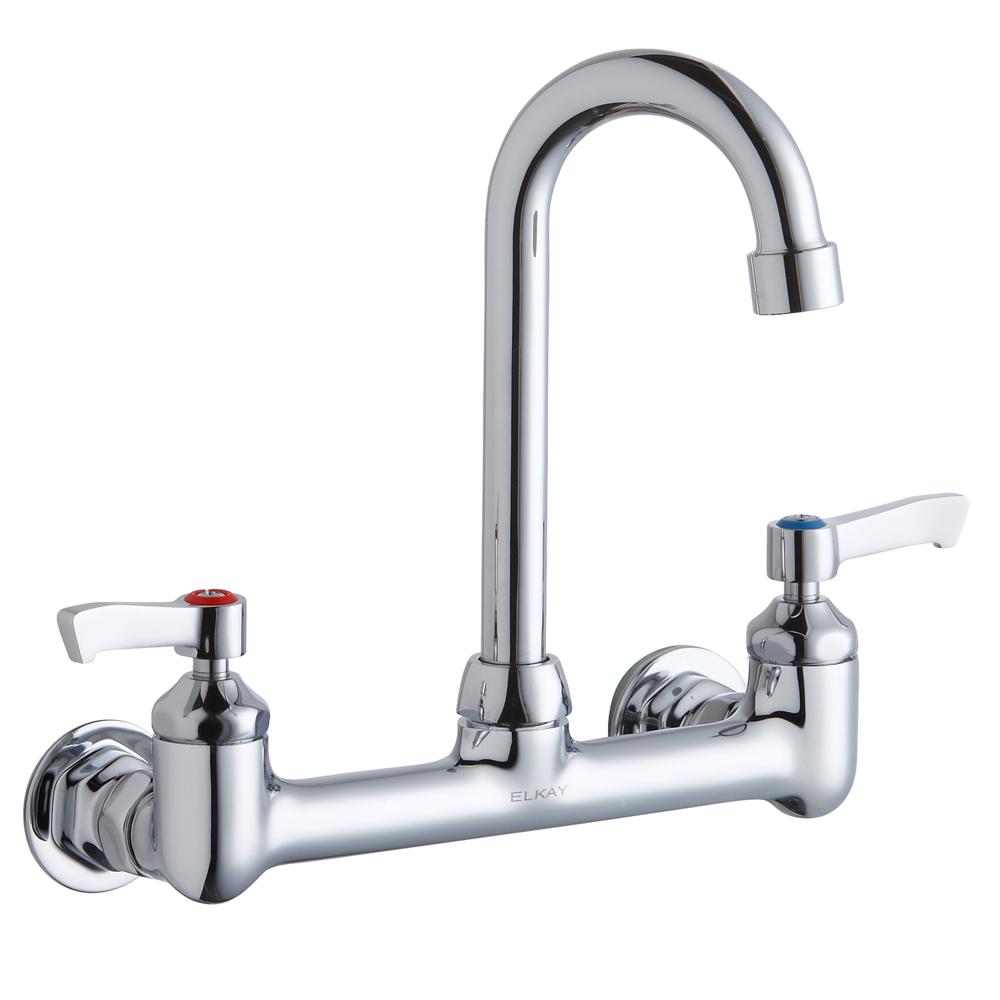

one LK940GN04L2H faucet
one LK8 drain fitting
and one LK500 P-trap
Ships In Multiple Boxes Yes
ADA No
Code Compliance ASME A112.19.3
ASME A112.18.1
ASME A112.18.2
CSA B45.4
CSA B125.1
CSA B125.2
NSF 2
cUPC
NSF 61
NSF 372
CEC Listed
IPC
Note Sink includes side splashes.

Elkay® has been a trusted name in stainless steel since 1920. We are proud to be America's No. 1 selling kitchen sink company. In addition, we offer prep, bar, bath and laundry sinks. Elkay commercial sinks can be found in public spaces such as classrooms, office buildings, health care facilities, parks and recreation areas and more. Available in ADA depths.

  • Type 304 stainless steel basin
  • 1-3/4" radius coved corners
  • 7" high, full-length backsplash with 45-degree angle sloped top
  • Exposed surfaces have a brushed finish
  • 2" drain opening
  • Easy to clean and sanitize
  • Furnished with hanger and integral stainless steel support brackets
  • Kit includes CHS1716 sink, LK940GN04L2H faucet, LK8 drain fitting and LK500 P-trap; conveniently packaged together to save you time
