Material |
Chrome-plated Brass |
---|---|
Spray Type |
None |
Installation Type |
Deck Mount |
Features |
Low Flow Solid Brass Construction Spout Swing Restriction Pin |

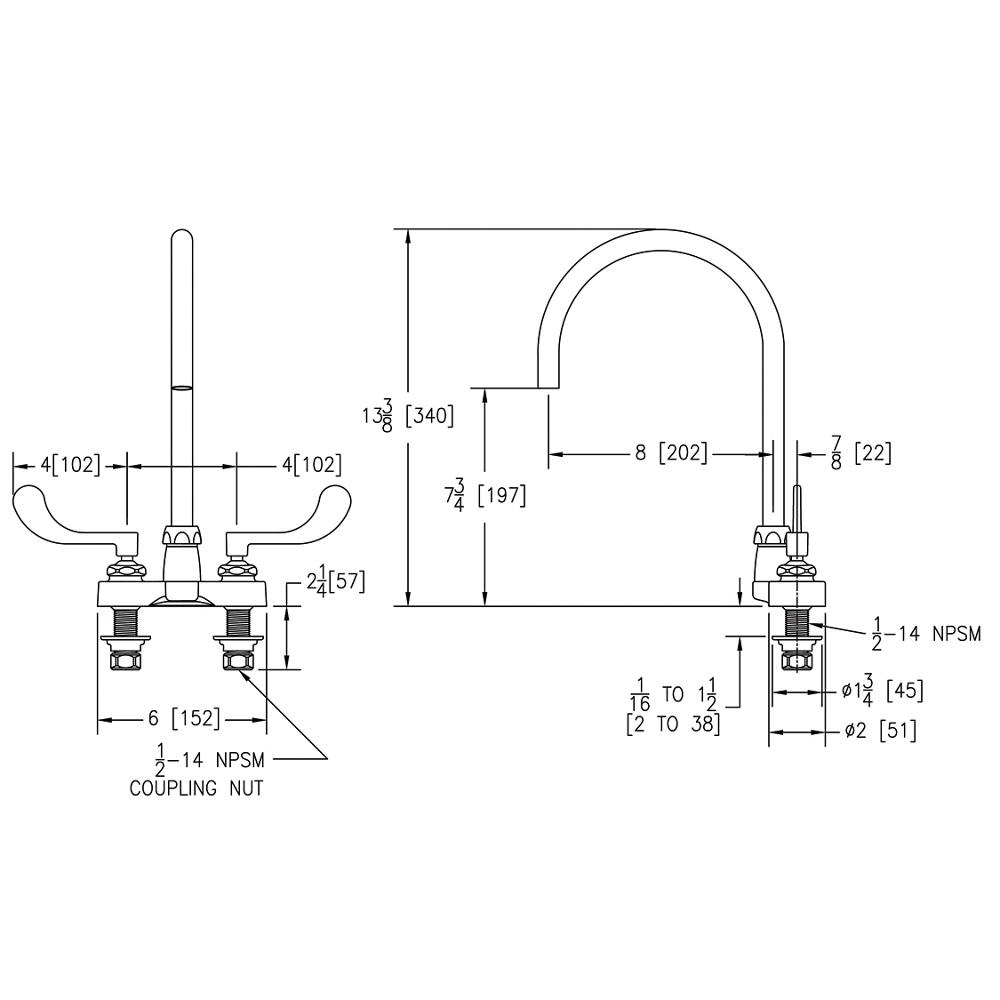

Dimensions |
L: 12" W: 10-5/8" H: 15-5/8" |
Handle Quantity |
2 |
Handle Type |
4" Wristblade Handle |
Deck Clearance |
1-1/2" |
Spout Reach |
8" |
Spout Height |
7-3/4" |
Hole Drillings |
2 |
Application Type |
Scrub + Handwash |
Spout Type |
Gooseneck |
Valve Type |
Quarter Turn Ceramic Disc |
Valve Connection |
1/2"-14 NPSM |
Flow Rate |
1.5 GPM |
Shipping Dimensions |
L: 13-3/4" W: 10-3/4" H: 4-3/8" |
Shipping Weight |
5 LBS |
Country Of Origin |
USA |
ADA |
Yes |
Code Compliance Faucets |
ADA & ICC A117.1 ASME A112.18.1/CSA B125.1 CEC NSF 372 (lead free) NSF 61 |
Elkay® commercial faucets combine performance and style. From the commercial kitchen to the classroom, we have faucets for a variety of applications. Select from options and styles that make it easier to take on the tasks you do every day.
