DXUH312010RDFBG

Discontinued

Replaced By: DXUH3118 Contact Us
Material Stainless Steel
Installation Type Sink Kits
Undermount
Gauge 18
Sound Deadening Bottom only pads
Number of Bowls 2
Minimum Cabinet Size 36"

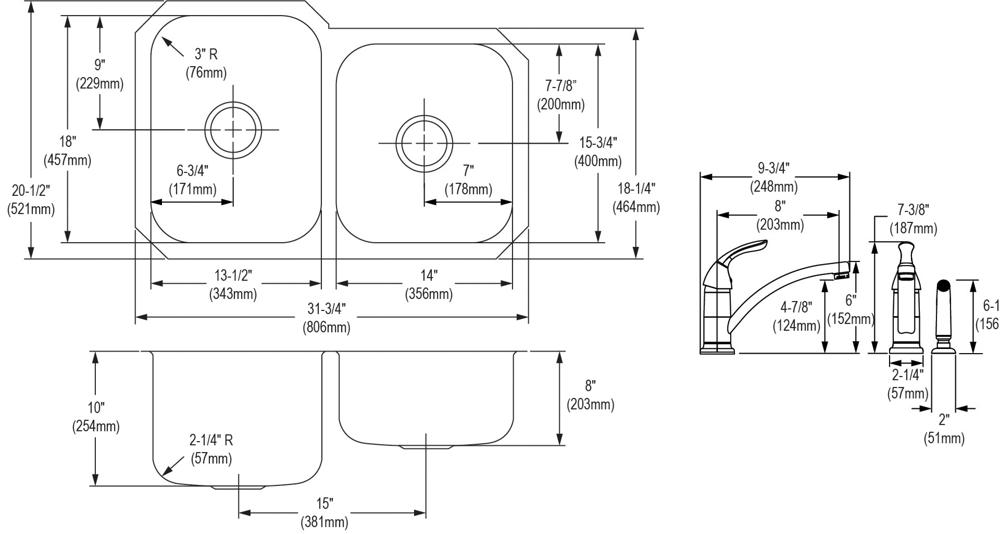

Dimensions L: 31-3/4"
W: 20-1/2"
H: 10"
Bowl 1 Dimensions L: 13-1/2"
W: 18"
H: 10"
Bowl 2 Dimensions L: 14"
W: 15-3/4"
H: 8"
Drain Size Bowl 1 3-1/2"
Drain Size Bowl 2 3-1/2"
Shipping Dimensions L: 23-5/16"
W: 12-1/16"
H: 39-7/16"
Shipping Weight 27 LBS
Included With Product LK5000CR faucet
one GBG1318SS bottom grid
two drains
ADA No
Code Compliance ASME A112.19.3
ASME A112.18.1
ASME A112.18.2
CSA B45.4
CSA B125.1
CSA B125.2
cUPC
NSF 61
NSF 372
CEC Listed
IPC
Room Kitchen

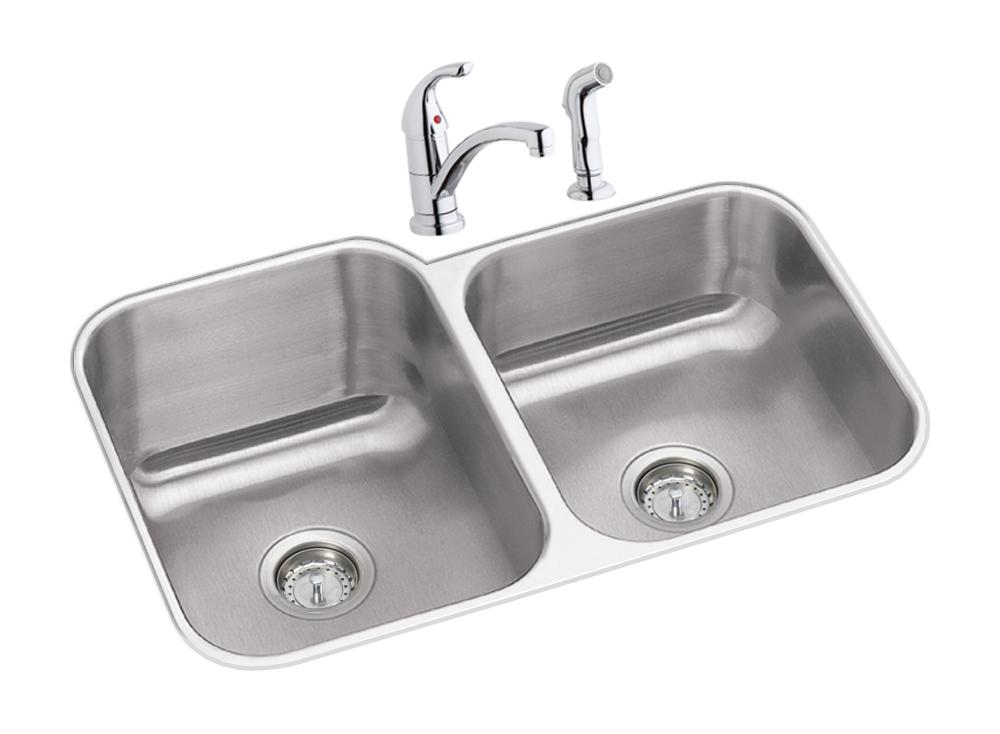

Dayton® Stainless Steel 31-3/4" x 20-1/2" x 10" 60/40 Double Bowl Undermount Sink and Faucet Kit with Bottom Grid

  • UNDERMOUNT INSTALLATION: Sink is installed beneath the countertop creating a seamless appearance between the sink and the countertop
  • 18-GAUGE STAINLESS STEEL: High-quality 18-gauge thickness and 300 Series stainless steel for lasting durability
  • QUIET: Sound-deadening pad(s) minimizes sound and vibration for a quieter time at the sink
  • CENTER DRAIN: Drain is conveniently placed in the center of the sink
  • LARGE CAPACITY: Straight sidewalls give the sink a flat bottom and offer more usable space for stacking, soaking and washing dishes; easy to clean
  • EXTRA DEEP BOWLS: High-capacity bowls offer more room inside for stacking dishes, filling stockpots, and handling large baking sheets and roasters
  • TWO BOWLS, DIFFERENT SIZES: Use bowls independently; wash dishes on one side, while keeping the other bowl available for smaller tasks
  • DRAIN OPENING: Sink drain opening measures 3-1/2"
  • KIT INCLUDES: DXUH312010R sink, LK5000CR faucet, one GBG1318SS bottom grid, two drains; conveniently packaged together to save you time
